Product Details:
|
| Product Brand: | WORLDIA | Product Family: | ManaNova |
|---|---|---|---|
| Name: | PCBN Standard Insert | Usage: | Turning Tools |
| Material: | PCBN+Carbide | PCBN Grade: | MKN10/20 |
| Model Number: | WNGA | Application: | High-precision Maching Of Cast Iron |
| High Light: | WNGA PCBN Carbide Turning Insert,ODM PCBN Carbide Turning Insert,WNGA carbide inserts for cast iron |
||

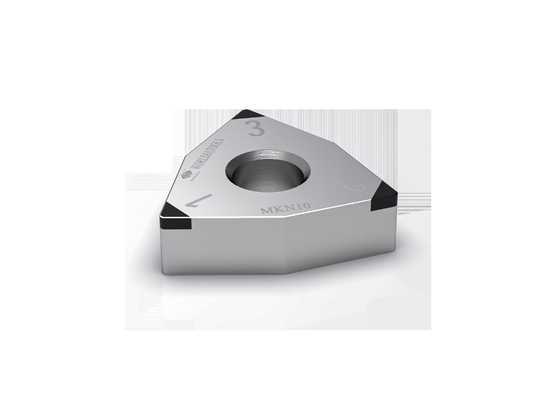

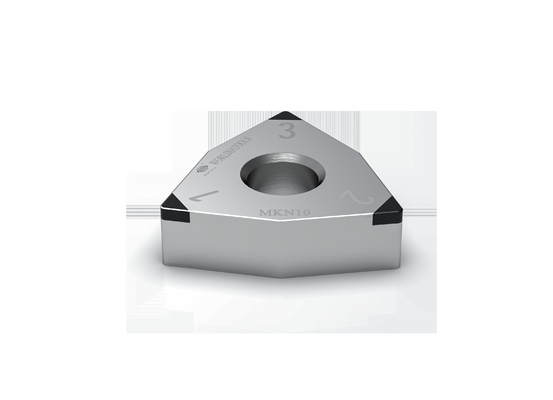

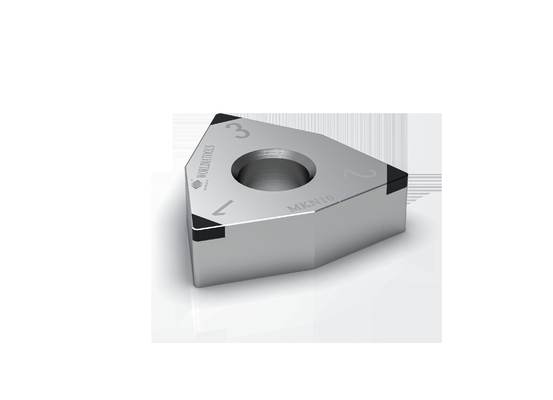

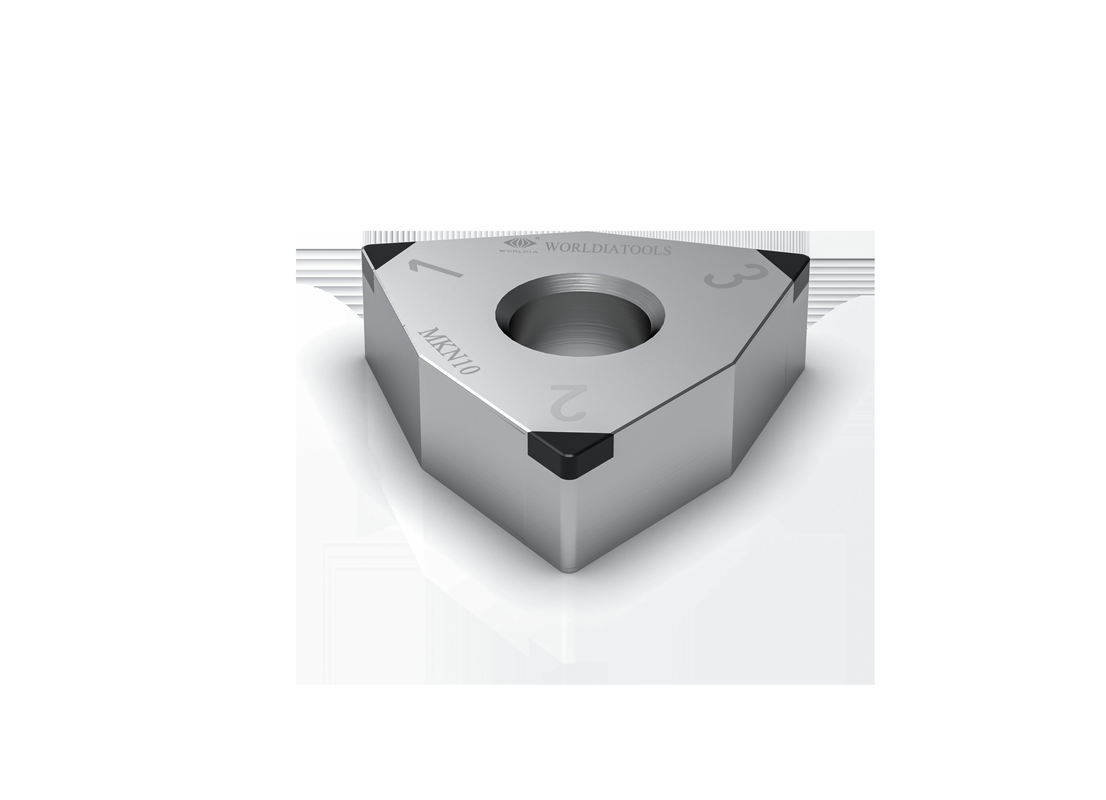

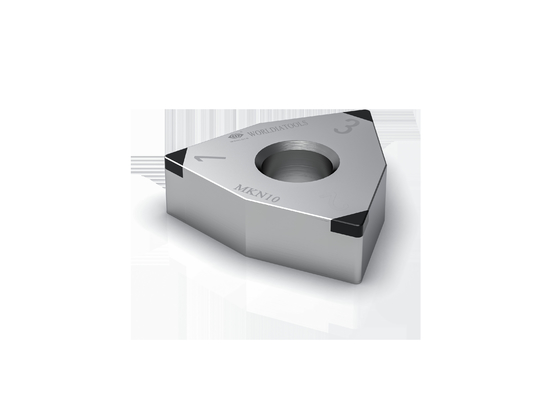

WNGA Standard PCBN Carbide Turning Insert PCBN Cutting Insert for cast iron
Description:
"ManaNova" is a sub-brand of Worldia,focusing on the high-end standard series.
ManaNova is a concept which stands at the view of end-users, we strictly choose PCD and PCBN Material
to provide universal cutting effect.
The key feature of ManaNova is Easy choice and Fast delivery.
"Easy choice" : It is easy to choose according to comparison table and application.
"Fast delivery": All the types of ManaNova PCD Inserts in the catalog are available in stock.
Eliminating of force majeure, you can get within 4-5 days.
Main products:
PCBN insert: material/ 1 type, universal for hardened steel,cast iron,ductile iron and powder metallury.
Polycrystalline cubic boron nitride(CBN) is a material with excellent hot hardness that can be used at very high
cutting speeds. It also exhibits good toughness and thermal shock resistance.CBN tools are ideal for the use with
hardened steel,cast irons and sintered irons as well as powder metallurgy components.
PCD insert: Providing stable, universal, high efficient cutting effect.
PCD Turning Inserts can be used in many fields including car industry, energy equipment, and the wood and stone
industry. It can be used to cut and process different materials such as nonferrous metal, tungsten carbide, ceramic,
nonmetal and composite material.
Advantages:
· Universal
· Easy choice
· Fast delivery
Service:
· Online store service
· Local distributer support
· Technical support
Application:
| MHN10C | Applied to continuous cutting of hardened steel |
| MHN20C | Applied to medium interrupted cutting of hardened steel |
| MHN30C | Applied to heavy interrupted cutting of hardened steel |
| MKN10 | Applied to cutting of gray cast iron |
| MKN20 | Applied to cutting of ductile iron |
| MSN10 | Applied to cutting of powder metallurgy |
| MSN20 | Applied to cutting of powder metallurgy |
Specification:
Material Introduction - Easy choice for CBN Grade
ISO H:Hardened Steel Continuous cutting
ISO K: Cast Iron Light interrupted cutting
ISO S: Powder Metallurgy Heavy interrupted cutting
| Material | ISO H | ISO K | ISO S | ||||
| PCBN Grade | MHN10C | MHN20C | MNH30C | MKN10 | MKN20 | MSN10 | MSN20 |
| Smooth | Moderate | Toughness | Cast Iron | Ductile Iron | Powder Metallurgy | Powder Metallurgy | |
| Vc | 180(150~250) m/min |
100(50~150) m/min |
80(30~120) m/min |
600(300~800) m/min |
300(150~450) m/min |
300(200~500) m/min |
500(300~800) m/min |
| fn | 0.1(0.03~0.2) mm/r |
0.1(0.03~0.2) mm/r |
0.1(0.03~0.2) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
| % | 45~55 | 60~70 | 85~95 | 85~95 | 60~70 | 60~70 | 85~95 |
| Grain size | 1~2 um | 1~2 um | 2~3um | 2~3 um | 1~2 um | 1~2 um | 2~3 um |
| Bond | TiC | TiN | Co/W | Co/W | TiCN | TiCN | Co/W |
| WNGA | Shape | Dimensions | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
|
| All Stocked |
WNGA 431 | WNGA 080404 | 3N | 12.7 | 4.76 | 0.4 | 5.16 | 2.2 |
| WNGA 432 | WNGA 080408 | 3N | 12.7 | 4.76 | 0.8 | 5.16 | 2.2 | |
