Product Details:
|
| Product Brand: | WORLDIA | Product Family: | ManaNova |
|---|---|---|---|
| Name: | PCBN Standard Insert | Usage: | Turning Tools |
| Material: | PCBN+Carbide | PCBN Grade: | MNH10C/20C/30C |
| Model Number: | CCGW 060202 | Application: | High-precision Maching Of Hardening Steel |
| High Light: | PCBN Carbide Turning Inserts,CCGW060202 Carbide Turning Inserts,WORLDIA CCGW Insert |
||

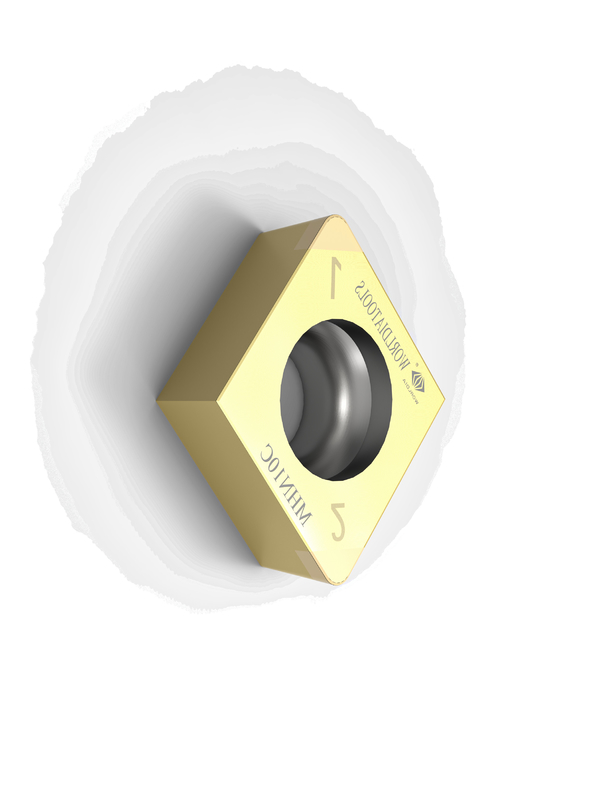

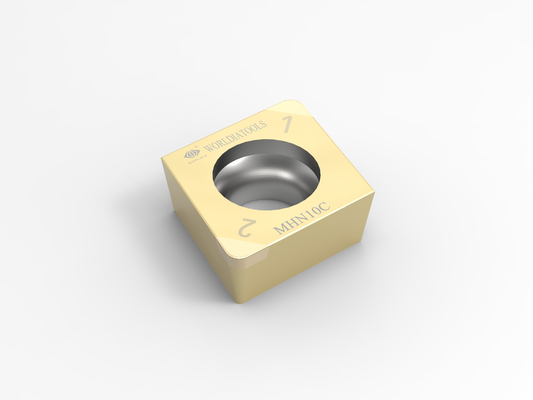

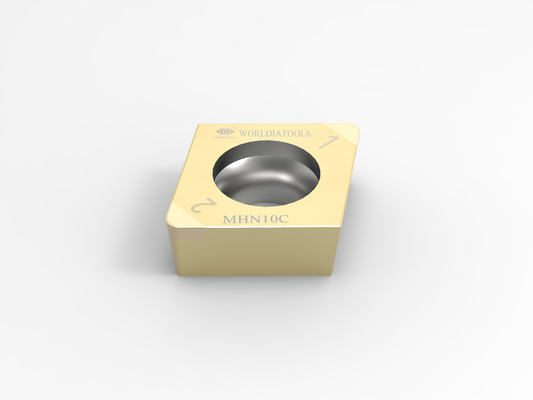

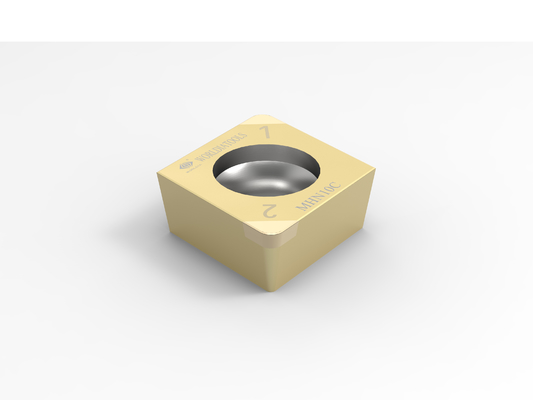

CCGW060202 Standard PCBN Carbide Turning PCBN Cutting Insert for hardened steel
Main products:
PCBN insert: 7 materials / 1 type, universal for hardened steel, cast iron, ductile iron, and powder metallurgy.
CBN tools are ideal for the use with hardened steel, cast irons, and sintered irons as well as powder metallurgy.
Description:
MHNxxx is used for the general processing of hardened steel materials, which can be widely used for various
processing from low speed to high speed, from continuous to strong intermittent.
MHN10C is suitable for continuous cutting,
MHN20C is suitable for interrupted cutting,
MNH30C is suitable for heavy interrupted cutting.
"ManaNova" is a sub-brand of Worldia, focusing on the high-end standard series.
ManaNova is a concept that stands at the view of end-users, we strictly choose PCD and PCBN Materials
to provide the universal cutting effect.
The key feature of ManaNova is Easy choice and Fast delivery.
"Easy choice" is easy to choose according to the comparison table and application.
"Fast delivery" is all the types of ManaNova PCD/PCBN Inserts in the catalog are available in stock.
Advantages:
· Universal
· Easy choice
· Fast delivery
Application:
| MHN10C | Applied to the continuous cutting of hardened steel |
| MHN20C | Applied to medium interrupted cutting of hardened steel |
| MHN30C | Applied to the heavy interrupted cutting of hardened steel |
| MKN10 | Applied to the cutting of gray cast iron |
| MKN20 | Applied to the cutting of ductile iron |
| MSN10 | Applied to the cutting of powder metallurgy |
| MSN20 | Applied to the cutting of powder metallurgy |
Specification:
Material Introduction - Easy choice for CBN Grade
ISO H: Hardened Steel Continuous cutting
ISO K: Cast Iron Light interrupted cutting
ISO S: Powder Metallurgy Heavy interrupted cutting
| Material | ISO H | ISO K | ISO S | ||||
| PCBN Grade | MHN10C | MHN20C | MNH30C | MKN10 | MKN20 | MSN10 | MSN20 |
| Smooth | Moderate | Toughness | Cast Iron | Ductile Iron | Powder Metallurgy | Powder Metallurgy | |
| Vc | 180(150~250) m/min |
100(50~150) m/min |
80(30~120) m/min |
600(300~800) m/min |
300(150~450) m/min |
300(200~500) m/min |
500(300~800) m/min |
| fn | 0.1(0.03~0.2) mm/r |
0.1(0.03~0.2) mm/r |
0.1(0.03~0.2) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
| % | 45~55 | 60~70 | 85~95 | 85~95 | 60~70 | 60~70 | 85~95 |
| Grain size | 1~2 um | 1~2 um | 2~3um | 2~3 um | 1~2 um | 1~2 um | 2~3 um |
| Bond | TiC | TiN | Co/W | Co/W | TiCN | TiCN | Co/W |
| CCGW | Shape | Dimensions | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
|
| All Stocked |
CCGW 21.50.5 | CCGW 060202 | 2N | 6.35 | 2.38 | 0.2 | 2.8 | 2.2 |
| CCGW 21.51 | CCGW 060204 | 2N | 6.35 | 2.38 | 0.4 | 2.8 | 2.2 | |
| CCGW 21.52 | CCGW 060208 | 2N | 6.35 | 2.38 | 0.8 | 2.8 | 2.2 | |
| CCGW 32.50.5 | CCGW 09T302 | 2N | 9.525 | 3.97 | 0.2 | 4.4 | 2.2 | |
| CCGW 32.51 | CCGW 09T304 | 2N | 9.525 | 3.97 | 0.4 | 4.4 | 2.2 | |
| CCGW 32.52 | CCGW 09T308 | 2N | 9.525 | 3.97 | 0.8 | 4.4 | 2.2 | |
| CCGW 32.53 | CCGW 09T312 | 2N | 9.525 | 3.97 | 1.2 | 4.4 | 2.2 | |
