Product Details:
|
| Product Brand: | WORLDIA | Product Family: | ManaNova |
|---|---|---|---|
| Name: | PCBN Standard Insert | Usage: | Turning Tools |
| Material: | PCBN+Carbide | PCBN Grade: | MNH10C/20C/30C |
| Model Number: | DCGW 070204 | Tips: | 2 |
| Coating: | C3 | Application: | High-precision Maching Of Hardening Steel |
| Highlight: | Shock Resistance PCBN Cutting Inserts,DCGW070204 PCBN Cutting Inserts,Gray Cast Iron DCGW Insert |
||

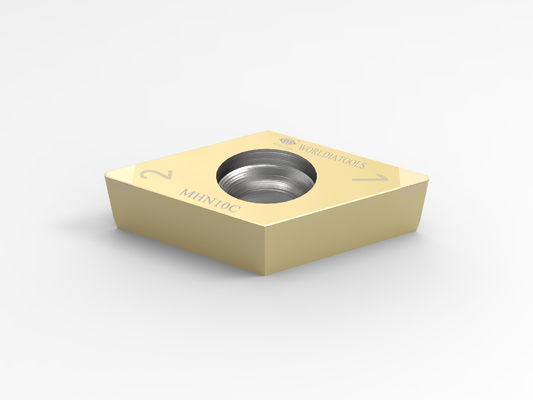

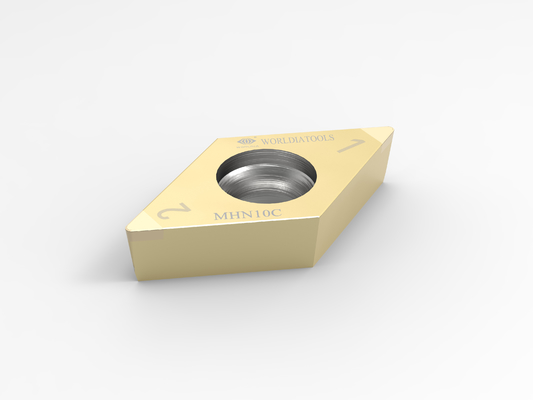

DCGW070204 Coated PCBN Carbide Turning Insert CBN Cutting Insert for hardened steel
Description:
MANANOVA is the sub-brand of WORLDIA, positioned as a high-end standard series,
mainly promoting PCD / PCBN standard inserts.
PCBN insert is suitable for machining hardened steel, gray cast iron, ductile iron, and powder metallurgy.
PCD insert is suitable for rough and finish machining of aluminum alloy and other non-metal materials.
Main products:
PCD Turning Inserts can be used in many fields including the car industry, energy equipment,
and the wood and stone industry. It can be used to cut and process different materials such as
nonferrous metal, tungsten carbide, ceramic, nonmetal, and composite material.
Polycrystalline cubic boron nitride(CBN) is a material with an excellent hot hardness that can be used at very high
cutting speeds. It also exhibits good toughness and thermal shock resistance.CBN tools are ideal for the use with
hardened steel, cast irons, and sintered irons as well as powder metallurgy components.
Advantages:
MANANOVA takes “Easy choice and Fast delivery” as the feature,
which intends to provide fast and efficient service for domestic and foreign customers to meet
their demand for standardized and universalized tools.
Service:
· Online store service
· Local distributor support
· Technical support
Application:
Worldia ManaNova series covers 7 high-quality CBN grades for the processing of hardened steel, cast iron,
and powder metallurgy, the available grades are MHN10C, MHN20C, MHN30C, MKN10, MKN20, MSN10, and MSN20.
| MHN10C | Applied to the continuous cutting of hardened steel |
| MHN20C | Applied to medium interrupted cutting of hardened steel |
| MHN30C | Applied to the heavy interrupted cutting of hardened steel |
| MKN10 | Applied to the cutting of gray cast iron |
| MKN20 | Applied to the cutting of ductile iron |
| MSN10 | Applied to the cutting of powder metallurgy |
| MSN20 | Applied to the cutting of powder metallurgy |
Specification:
| Material | ISO H | ISO K | ISO S | ||||
| PCBN Grade | MHN10C | MHN20C | MNH30C | MKN10 | MKN20 | MSN10 | MSN20 |
| Smooth | Moderate | Toughness | Cast Iron | Ductile Iron | Powder Metallurgy | Powder Metallurgy | |
| Vc | 180(150~250) m/min |
100(50~150) m/min |
80(30~120) m/min |
600(300~800) m/min |
300(150~450) m/min |
300(200~500) m/min |
500(300~800) m/min |
| fn | 0.1(0.03~0.2) mm/r |
0.1(0.03~0.2) mm/r |
0.1(0.03~0.2) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
| % | 45~55 | 60~70 | 85~95 | 85~95 | 60~70 | 60~70 | 85~95 |
| Grain size | 1~2 um | 1~2 um | 2~3um | 2~3 um | 1~2 um | 1~2 um | 2~3 um |
| Bond | TiC | TiN | Co/W | Co/W | TiCN | TiCN | Co/W |
| DCGW | Shape | Dimensions | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
|
| All Stocked |
DCGW 21.51 | DCGW 070204 | 2N | 6.35 | 2.38 | 0.4 | 2.8 | 2.2 |
| DCGW 21.52 | DCGW 070208 | 2N | 6.35 | 2.38 | 0.8 | 2.8 | 2.2 | |
| DCGW 32.50.5 | DCGW 11T302 | 2N | 9.525 | 3.97 | 0.2 | 4.4 | 2.2 | |
| DCGW 32.51 | DCGW 11T304 | 2N | 9.525 | 3.97 | 0.4 | 4.4 | 2.2 | |
| DCGW 32.52 | DCGW 11T308 | 2N | 9.525 | 3.97 | 0.8 | 4.4 | 2.2 | |
