Product Details:
|
Product Brand: | WORLDIA | Product Family: | ManaNova |
---|---|---|---|
Model Number: | CCGW 09T304 | PCBN Grade: | MNH10C/20C/30C |
Tips: | 2 | Coating: | C3 |
Material: | PCBN+Carbide | Application: | High-precision Maching Of Hardening Steel |
High Light: | CCGW09T304 PCBN Cutting Inserts,2 Tips PCBN Cutting Inserts,C3 Coating Carbide Turning Tool |

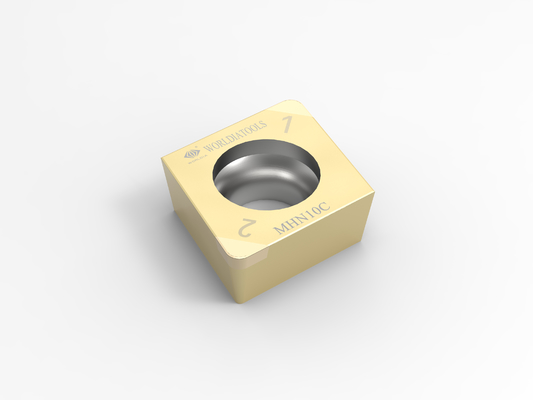

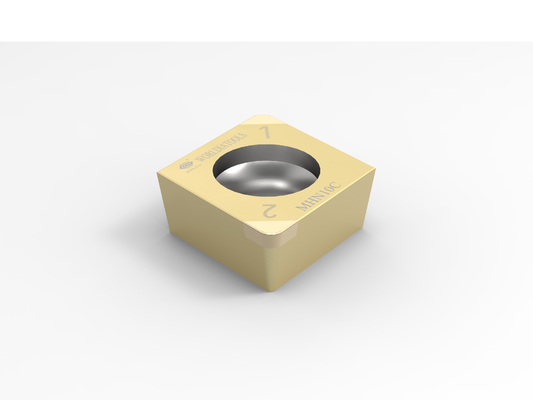

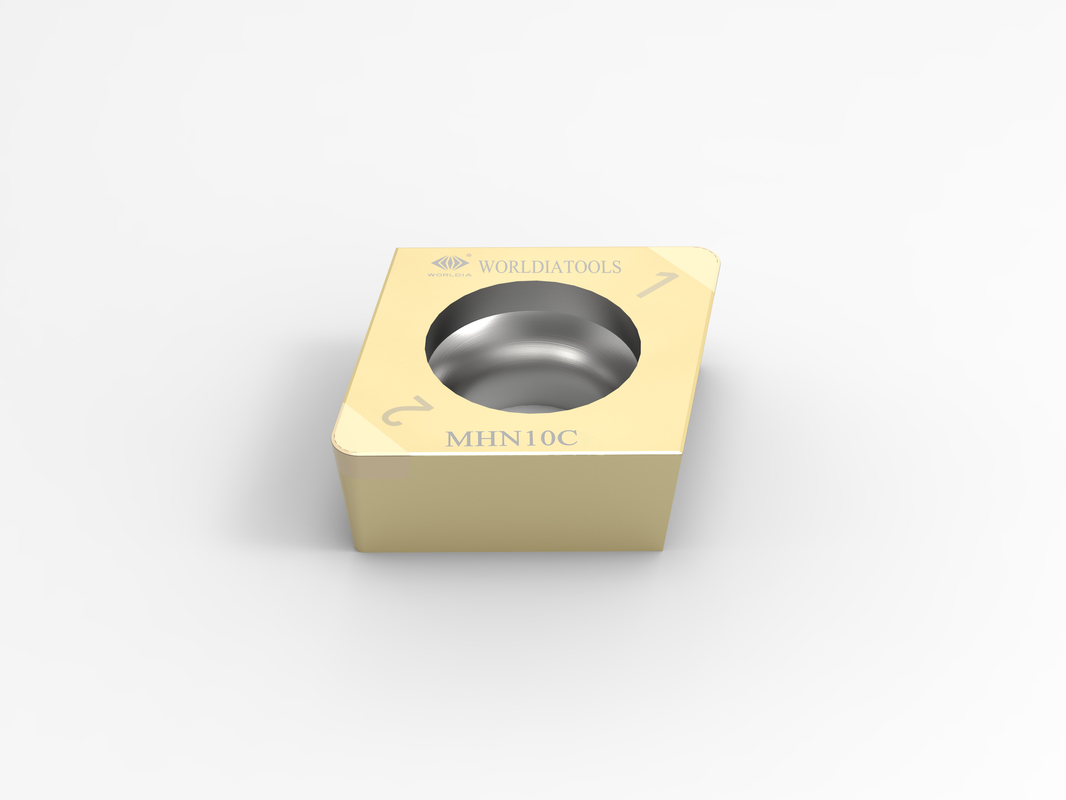

CCGW 09T304 Standard PCBN Carbide Turning PCBN Cutting Insert for hardened steel
Application:
MHN10C | Applied to the continuous cutting of hardened steel |
MHN20C | Applied to medium interrupted cutting of hardened steel |
MHN30C | Applied to the heavy interrupted cutting of hardened steel |
Specification:
Material Introduction - Easy choice for CBN Grade
Material | ISO H | ISO K | ISO S | ||||
PCBN Grade | MHN10C | MHN20C | MNH30C | MKN10 | MKN20 | MSN10 | MSN20 |
Smooth | Moderate | Toughness | Cast Iron | Ductile Iron | Powder Metallurgy | Powder Metallurgy | |
Vc | 180(150~250) m/min |
100(50~150) m/min |
80(30~120) m/min |
600(300~800) m/min |
300(150~450) m/min |
300(200~500) m/min |
500(300~800) m/min |
fn | 0.1(0.03~0.2) mm/r |
0.1(0.03~0.2) mm/r |
0.1(0.03~0.2) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
% | 45~55 | 60~70 | 85~95 | 85~95 | 60~70 | 60~70 | 85~95 |
Grain size | 1~2 um | 1~2 um | 2~3um | 2~3 um | 1~2 um | 1~2 um | 2~3 um |
Bond | TiC | TiN | Co/W | Co/W | TiCN | TiCN | Co/W |
ISO H: Hardened Steel Continuous cutting
ISO K: Cast Iron Light interrupted cutting
ISO S: Powder Metallurgy Heavy interrupted cutting
CCGW | Shape | Dimensions | ||||||
ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
|
All Stocked |
CCGW 21.50.5 | CCGW 060202 | 2N | 6.35 | 2.38 | 0.2 | 2.8 | 2.2 |
CCGW 21.51 | CCGW 060204 | 2N | 6.35 | 2.38 | 0.4 | 2.8 | 2.2 | |
CCGW 21.52 | CCGW 060208 | 2N | 6.35 | 2.38 | 0.8 | 2.8 | 2.2 | |
CCGW 32.50.5 | CCGW 09T302 | 2N | 9.525 | 3.97 | 0.2 | 4.4 | 2.2 | |
CCGW 32.51 | CCGW 09T304 | 2N | 9.525 | 3.97 | 0.4 | 4.4 | 2.2 | |
CCGW 32.52 | CCGW 09T308 | 2N | 9.525 | 3.97 | 0.8 | 4.4 | 2.2 | |
CCGW 32.53 | CCGW 09T312 | 2N | 9.525 | 3.97 | 1.2 | 4.4 | 2.2 |
Advantages:
· Universal
· Easy choice
· Fast delivery
Service:
· Online store service
· Local distributor support
· Technical support
