Product Details:
|
| Product Brand: | WORLIDA | Product Name: | PCD Milling Cutter For Stone Machining |
|---|---|---|---|
| Model Number: | Customized | Tool Type: | PCD Engraving Tools |
| Material: | PCD | Application: | Stone Machining |
| Usage: | PCD Engraving Cutter For Granite Marble | Cutting Length: | 4/4.5/5/5.5/6.5/10 |
| Cutting Edges: | Two | Holder Length: | 40-60mm |
| Total Length: | 50-100mm | ||
| Highlight: | 100mm Length PCD Milling Cutter,50mm Length PCD Milling Cutter,pcd end mills Stone Processing Tools |
||

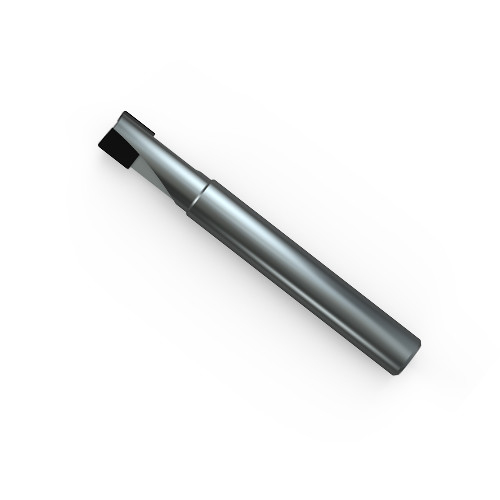

Stone engraving PCD milling cutter for Stone Processing Tools
MATERIAL INTRODUCTION
Tools with Poly-Crystalline Diamond (PCD) cutting materials can reduce your tooling
cost significantly,PCD tools are ideal for the use with non-ferrous metal,such as
aluminium, Zinc and magnesium alloys, GRP composites, carbon fiber reinforced plastics,
“green” carbide and ceramic as well as all abrasive materials.
We manufacture PCD Tools with advanced processing machine and control the product
quality from the very beginning which keep PCD tools with high accuracy and good quality
with consistency.
APPLICATION

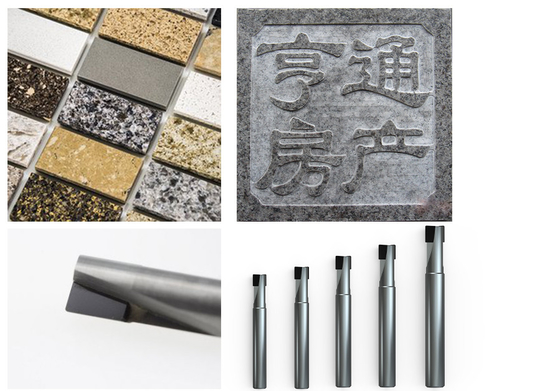

| The PCD Milling Cutter for Stone applies to mill the groove at the bottom of the engraving picture or letters of the stone, especially for the granite, marble and ceramic surface processing. |
SPECIFICATIONS
| Dia. | Cutting Length | Dia. | Holder Length | Total Length | Cutting Edges | |
| Items | mm | mm | mm | mm | mm | QTY |
| Φ6*4.5*Φ6*40*55*2 | 6 | 4.5 | 6 | 40 | 55 | 2 |
| Φ6*5.5*Φ6*40*55*2 | 6 | 5.5 | 6 | 40 | 55 | 2 |
| Φ6*6.5*Φ6*30*50*2 | 6 | 6.5 | 6 | 30 | 50 | 2 |
| Φ7*5.0*Φ7*20*50*2 | 7 | 5 | 7 | 20 | 50 | 2 |
| Φ7*5.5*Φ7*30*50*2 | 7 | 5.5 | 7 | 30 | 50 | 2 |
| Φ8*4.5*Φ8*40*60*2 | 8 | 4.5 | 8 | 40 | 60 | 2 |
| Φ8*5.0*Φ8*40*70*2 | 8 | 5 | 8 | 40 | 70 | 2 |
| Φ8*5.5*Φ8*40*60*2 | 8 | 5.5 | 8 | 40 | 60 | 2 |
| Φ9*4.5*Φ9*40*60*2 | 9 | 4.5 | 9 | 40 | 60 | 2 |
| Φ9*5.5*Φ9*40*60*2 | 9 | 5.5 | 9 | 40 | 60 | 2 |
| Φ9*6.5*Φ9*40*60*2 | 9 | 6.5 | 9 | 40 | 60 | 2 |
| Φ10*4.0*Φ10*30*100*2 | 10 | 4 | 10 | 30 | 100 | 2 |
| Φ10*4.5*Φ10*55*80*2 | 10 | 4.5 | 10 | 55 | 80 | 2 |
| Φ10*5.5*Φ10*40*70*2 | 10 | 5.5 | 10 | 40 | 70 | 2 |
| Φ10*5.5*Φ10*55*80*2 | 10 | 5.5 | 10 | 55 | 80 | 2 |
| Φ10*6.5*Φ10*55*80*2 | 10 | 6.5 | 10 | 55 | 80 | 2 |
| Φ10*10*Φ10*55*80*2 | 10 | 10 | 10 | 55 | 80 | 2 |
| Φ11*4.5*Φ11*40*60*2 | 11 | 4.5 | 11 | 40 | 60 | 2 |
| Φ11*6.5*Φ11*40*60*2 | 11 | 6.5 | 11 | 40 | 60 | 2 |
| Φ11*6.5*Φ11*30*60*2 | 11 | 6.5 | 11 | 30 | 60 | 2 |
| Φ12*6.5*Φ12*45*80*2 | 12 | 6.5 | 12 | 45 | 80 | 2 |
| Φ12*4.5*Φ12*60*90*2 | 12 | 10 | 12 | 60 | 90 | 2 |
|
Customized
|
- | - | - | - | - | - |
Worldia supply costomized solutions according to customer request,we provide design,
produce and technical services for complete tools solutions.
