Product Details:
|
| Name: | PCD Boring Tool | D（mm）: | 2.0-6.0 |
|---|---|---|---|
| Angle: | 75°/80°/90° | H（mm）: | 1.4-3.0 |
| Type: | PCD Tools | Model Number: | Standard And Arc Type |
| Material: | PCD/ Polycrystalline Diamond | Application: | PCD Boring Tool Is Suitable For Milling The Inner Crescent Groove Of The Ring Groove Of The High Hardness Carbide Roll . |
| Highlight: | full arc type fine boring tool,cutter bar fine boring tool,full arc type fine boring bar |
||
Arc Type PCD fine boring tool cutter bar for CNC caribe steel Tungsten carbide Roller
Beijing Worldia PCD boring tool has launched two different series of products,
the SD series, and the SDM series, for different customers and working conditions.

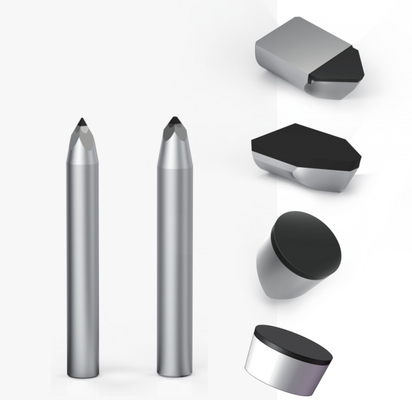

ln terms of structure, PCD boring tool is divided into two types: integral type and welded type.
Generally, when the tool diameter of is less than 4.0, it is recommended to use an integral PCD boring tool.
For tool diameters above 4.0, a welded PCD boring tool is recommended.
|
|
|
|
The PCD boring cutter for Rollers is used to process tungsten carbide rollers of various specifications.
| PCD Boring Tool Shape | Specification Model | Basic size | ||||
| D | H | A | B | L | ||
|

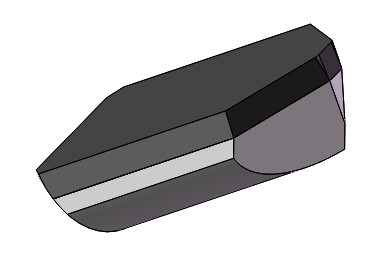

Arc Type XXAA |
2.0 | 1.4 | 75 | 0.6 | 4.0 |
| 2.5 | 1.8 | 80 | 0.7 | 5.3 | ||
| 3.0 | 1.5 | 80 | 1.1 | 7.6 | ||
| 3.2 | 1.6 | 90 | 1.2 | 8.1 | ||
| 4.0 | 2.0 | 80 | 1.5 | 10.95 | ||
| 4.5 | 2.25 | 90 | 1.6 | 11.0 | ||
| 5.0 | 2.5 | 80 | 1.5 | 11.5 | ||
| 6.0 | 3.0 | 80 | 1.7 | 14.1 | ||
Note: The above size can be customized according to customer needs.
Tools with Poly-Crystalline Diamond (PCD) cutting materials can reduce your tooling cost significantly,
PCD tools are ideal for use with non-ferrous metals, such as aluminum, Zinc, and magnesium alloys,
GRP composites, carbon fiber reinforced plastics, “green” carbide, and ceramic as well as all abrasive
materials.
We manufacture PCD boring tools with advanced processing machine and control the product quality
from the very beginning which keep PCD tools with high accuracy and good quality with consistency.
|
|
|
