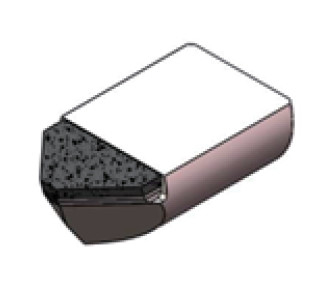

Welded WORLDIA Fine Boring Bar PCD Tool SDM Series

Welded PCD fine boring tool cutter bar for CNC caribe steel Tungsten carbide Roller

PCD Boring Tool----Processing options

Beijing Worldia PCD boring tool has launched two different series of products,

the SD series, and the SDM series,  for different customers and working conditions.

ln terms of structure, PCD boring tool is divided into two types: integral type and welded type.

Generally, when the tool diameter is less than 4.0, it is recommended to use an integral PCD boring tool.

For tool diameters above 4.0, a welded PCD boring tool is recommended.

PCD Boring Tool----Advantages

PCD Boring Tool----Application

The PCD boring tool is suitable for milling the inner crescent groove of the ring groove of the high-hardness carbide roll.

PCD Boring Tool----Specification

PCD Boring Tool Shape	Specification Model	Basic size
		D	H	A	B	L
	XXBA	5.0	3.2	80	0.8	9.0
		6.0	3.9	80	0.9	10.5
		6.0	3.9	80	1.0	11.5
		6.0	3.9	90	1.2	12.8

Note: The above size can be customized according to customer needs.

 PCD Boring Tool----Poly Crystalline Diamond PCD cutter with carbide support

Tools with Poly-Crystalline Diamond (PCD) cutting materials can reduce your tooling cost significantly,

PCD tools are ideal for use with non-ferrous metal, such as aluminum, Zinc, and magnesium alloys, GRP composites, carbon fiber reinforced plastics, “green” carbide, and ceramic as well as all abrasive materials.

We manufacture PCD boring tools with advanced processing machine and control the product quality from the very beginning which keep PCD tools with high accuracy and good quality with consistency.

Round PCD Insert----Steel Roll industry solutions

At present, the processing of rebar rolls and the crescent grooves of the roll ring mostly adopts CNC rotary flying engraving and milling machines, which are processed by rotary milling technology. Such processing methods and tools are used for the smaller boring tool (alveolar rotary cutter).   For example.PCD/BN round inserts used for turning the outer circle of rolls and ring grooves ring roller carbide milling groove alveolar boring tool. PCBN small boring tool, pcd small boring tool(small boring tool can be called a rotary cutter, knife ribs, small knife, etc). And the four-sided carving knife is used for engraving marks in the ring groove of the roll. It constitutes a complete set of tool solutions from roll blank to finished product processing.
