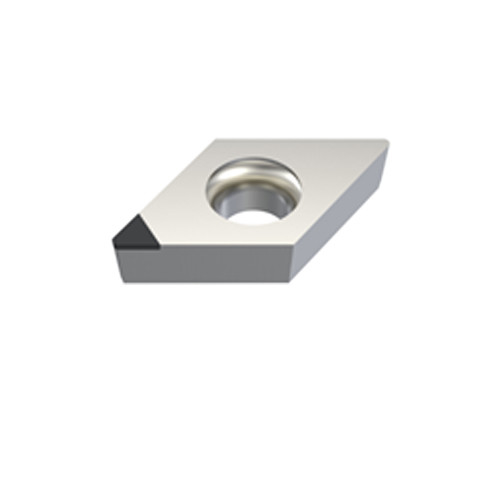

MMC DCGW DCGT CVD Insert High Hardness Diamond Turning Insert

MMC DCGW DCGT CVD Insert High Hardness Diamond Turning Insert
MMC DCGW DCGT CVD Insert High Hardness Diamond Turning Insert

Large Image :  MMC DCGW DCGT CVD Insert High Hardness Diamond Turning Insert

Product Details:
Place of Origin: Beijing, China
Brand Name: Worldia
Model Number: DCGW/DCGT
Payment & Shipping Terms:
Minimum Order Quantity: 2 Piece
Price: 15-30/Piece
Delivery Time: 14 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 20000PCS(monthly)

MMC DCGW DCGT CVD Insert High Hardness Diamond Turning Insert

Description
Features: High Hardness,strong Wear Resistance And Strong Stability. Product Brand: WORLIDA
Product Name: CVD Diamond Turning Insert Type: Turing Insert
Material: CVDD Usage: Polished Finish
Application: High Efficiency Machining Of Hard Materials Model Number: DCGW/DCGT
IC: 6.35/9.525 RE: 0.2/0.4/0.8
High Light:

DCGT CVD Insert

,

MMC DCGW CVD Insert

,

High Hardness Diamond Turning Insert

DC Type High effiency CVD diamond Turning Insert for Non-ferrous machining



INTRODUCTION



Material Grain size Features Application
CVDD ---

CVDD is a pure carbon material without binder with extreme abrasion resistance and good thermal suitability.Due to its perfect cutting edge suitable fro appications where mirror finishes are required.

Application areas include the machining of abrasive workpiece such as MMC,high silicon aluminium alloys as well as for the machining of carbide,hard rubber,graphite and other applications.



APPLICATION

CVD diamond has the advantage of high hardness,strong wear resistance and strong stability.

Compared to PCD tools,the working life of CVD tools is several times better than PCD tools

e.g.the finishing of aluminum, copper, tungsten alloy and other non-metal parts in automobile

parts and other industries.
By using of CVD diamond tools, high efficiency machining of hard materials can be achieved

such as glassfibre reinforced plastics,high-silicon aluminum alloy.Bond-free makes CVD diamond

tools suit for machining corrosion materials with high speed and long service life.

We are able to provide Lapped or Polished Finish for different applications.Lapped Finish is mainly

applied for dressing tools, Polished Finish is used for cutting tools especially for graphite cutting.



SPECIFICATIONS



MMC DCGW DCGT CVD Insert High Hardness Diamond Turning Insert 0

        ic φd s α re la
ISO catalog number ANSI catalog number Tip Shape CVDD mm mm mm Degree mm mm
DCGW070202-1N P00P07 DCGW2(1.5)(0.5)-1N P00P07 SLST25S 6.35 2.8 2.38 0.2 2.5
DCGT070202-1N P05P07 DCGT2(1.5)(0.5)-1N P05P07 SLST25S 6.35 2.8 2.38 0.2 2.5
DCGT070202-1N P10P07 DCGT2(1.5)(0.5)-1N P10P07 SLST25S 6.35 2.8 2.38 10° 0.2 2.5
DCGW070204-1N P00P07 DCGW2(1.5)1-1N P00P07 SLST25S 6.35 2.8 2.38 0.4 2.5
DCGT070204-1N P05P07 DCGT2(1.5)1-1N P05P07 SLST25S 6.35 2.8 2.38 0.4 2.5
DCGT070204-1N P10P07 DCGT2(1.5)1-1N P10P07 SLST25S 6.35 2.8 2.38 10° 0.4 2.5
DCGW070208-1N P00P07 DCGW2(1.5)2-1N P00P07 SLST25S 6.35 2.8 2.38 0.8 2.5
DCGT070208-1N P05P07 DCGT2(1.5)2-1N P05P07 SLST25S 6.35 2.8 2.38 0.8 2.5
DCGT070208-1N P10P07 DCGT2(1.5)2-1N P10P07 SLST25S 6.35 2.8 2.38 10° 0.8 2.5
DCGW11T302-1N P00P07 DCGW3(2.5)(0.5)-1N P00P07 SLST25S 9.525 4.4 3.97 0.2 2.5
DCGT11T302-1N P05P07 DCGT3(2.5)(0.5)-1N P05P07 SLST25S 9.525 4.4 3.97 0.2 2.5
DCGT11T302-1N P10P07 DCGT3(2.5)(0.5)-1N P10P07 SLST25S 9.525 4.4 3.97 10° 0.2 2.5
DCGW11T304-1N P00P07 DCGW3(2.5)1-1N P00P07 SLST25S 9.525 4.4 3.97 0.4 2.5
DCGT11T304-1N P05P07 DCGT3(2.5)1-1N P05P07 SLST25S 9.525 4.4 3.97 0.4 2.5
DCGT11T304-1N P10P07 DCGT3(2.5)1-1N P10P07 SLST25S 9.525 4.4 3.97 10° 0.4 2.5
DCGW11T308-1N P00P07 DCGW3(2.5)2-1N P00P07 SLST25S 9.525 4.4 3.97 0.8 2.5
DCGT11T308-1N P05P07 DCGT3(2.5)2-1N P05P07 SLST25S 9.525 4.4 3.97 0.8 2.5
DCGT11T308-1N P10P07 DCGT3(2.5)2-1N P10P07 SLST25S 9.525 4.4 3.97 10° 0.8 2.5
