Product Details:
|
| Product Brand: | WORLDIA | Product Family: | ManaNova |
|---|---|---|---|
| Name: | PCD Standard Insert | Coating: | Uncoated |
| Material: | PCD+Carbide | PCD Grade: | MND10 |
| Model Number: | DCGW 11T304 | Application: | Maching Of Non-ferrous Materials |
| Highlight: | PCD Blanks Cutting Insert,ISO9001 PCD Blanks,DCGW11T304 Carbide Turning Tool |
||

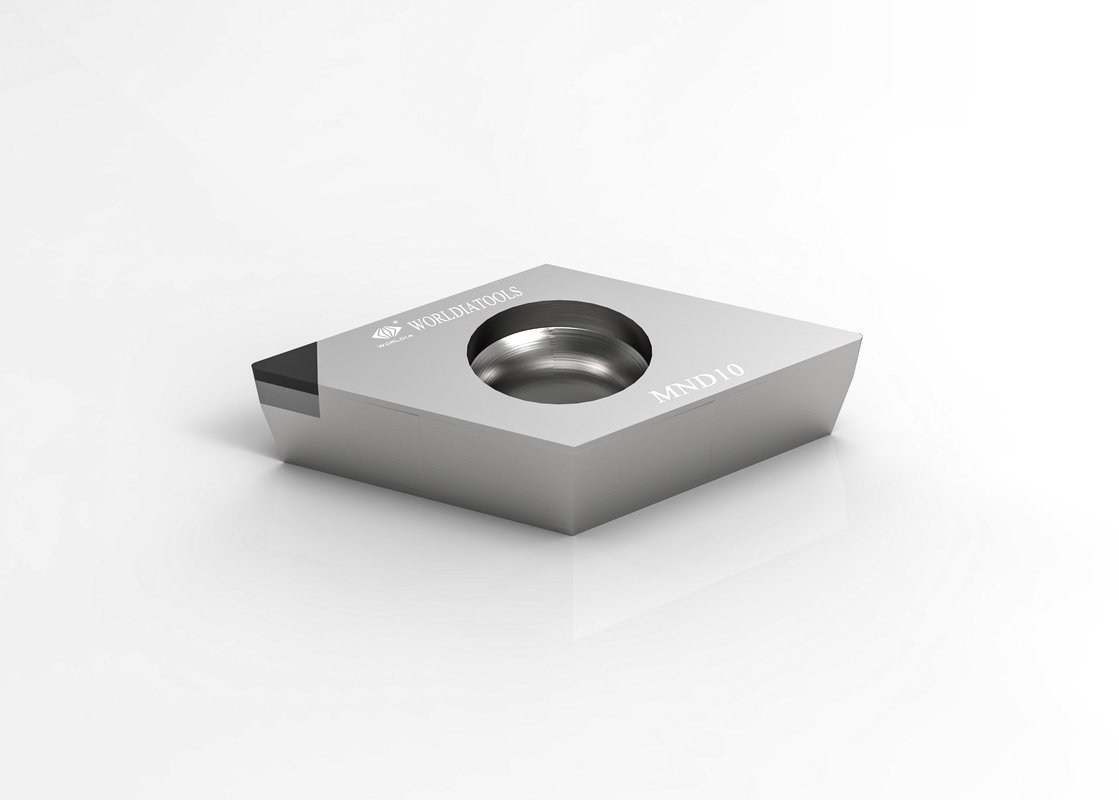

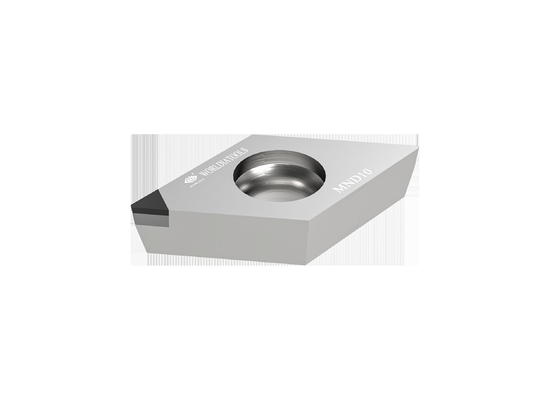

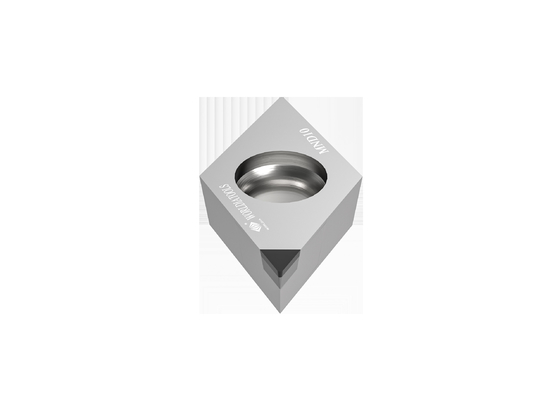

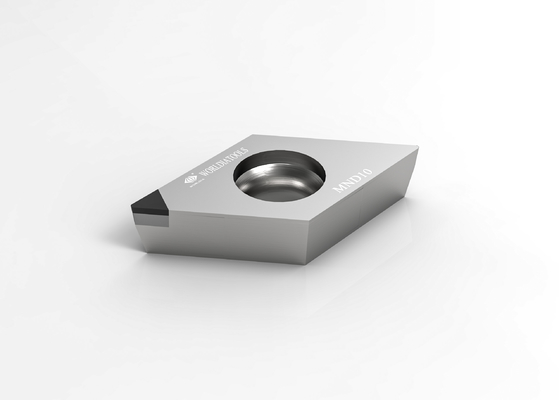

DCGW11T304 Carbide Turning Insert PCD Cutting Insert for non-ferrous materials
Description:
ManaNova, a sub-brand of Worldia, is positioned as a high-end standard series.
To meet the needs of customers as the goal, we strictly select PCD/PCBN materials to
provide a universal, stable, and efficient cutting effect.
MANANOVA takes “Easy choice and Fast delivery” as the feature, which intends to
provide fast and efficient service for domestic and foreign customers to meet their demand
for standardized and universalized tools.
Material:
We manufacture PCD Tools with advanced processing machines and control the product quality
from the very beginning which keeps PCD tools with high accuracy and good quality with consistency.
We manufacture CBN tools with an industry-leading 5-axis cutting machine and self-designed vacuum
brazing furnace which keeps CBN tools with high accuracy and welding strength.
Main products:
PCBN insert
Worldia ManaNova series covers 7 high-quality CBN grades for the processing of hardened steel, cast iron,
and powder metallurgy, the available grades are MHN10C, MHN20C, MHN30C, MKN10, MKN20, MSN10, and MSN20.
PCD insert
MND10 is suitable for rough and finish machining of aluminum alloy and other non-metal materials.
Service:
· Online store service
· Local distributor support
· Technical support
Application:
| MND10 |
Applied to the cutting of non-ferrous materials such as aluminum alloys, etc. |
| PCD tools are limited to non-ferrous materials, such as high-silicon aluminum, metal matrix composites (MMC), and carbon fiber reinforced plastics (CFRP). PCD with flood coolant can also be used in titanium super-finishing applications. |
|
| ·Aluminum and aluminum alloys | |
| ·Copper, brass, and bronze alloys | |
| ·Zinc and magnesium alloys | |
| ·Carbon Fiber | |
| ·Epoxy resins | |
| ·Plastics | |
| ·Fiberglass composites | |
| ·Graphite composites |
Specification:
| Angle | Dimensions | Grade | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
MND10 |
| DCGW 21.50.5 | DCGW 070202 | 1N | 6.35 | 2.38 | 0.2 | 2.8 | 2.5 | √ |
| DCGW 21.51 | DCGW 070204 | 1N | 6.35 | 2.38 | 0.4 | 2.8 | 2.5 | √ |
| DCGW 32.50.5 | DCGW 11T302 | 1N | 9.525 | 3.97 | 0.2 | 4.4 | 2.5 | √ |
| DCGW 32.51 | DCGW 11T304 | 1N | 9.525 | 3.97 | 0.4 | 4.4 | 2.5 | √ |
| DCGW 32.52 | DCGW 11T308 | 1N | 9.525 | 3.97 | 0.8 | 4.4 | 2.5 | √ |
| Feed rate recommendation | ||||||
| Nose radius(mm) | Ra um | |||||
| 0.2 | 0.4 | 0.8 | 1.6 | 3.2 | 6.4 | |
| Feed Rate f (mm/rev)≤ | ||||||
| 0.2 | 0.028 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 |
| 0.4 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 |
| 0.8 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 |
| 1.2 | 0.069 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 |
| 1.6 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 | 0.453 |
| 2.4 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 | 0.554 |
