Product Details:
|
| Product Brand: | WORLDIA | Product Family: | ManaNova |
|---|---|---|---|
| Product Name: | PCD Carbide Turning Inserts | Material: | PCD+Carbide |
| Usage: | PCD Turing Tools | PCD Grade: | MND10 |
| Model Number: | DCGT 11T304 | Application: | High-efficiency Machining Of Non-ferrous Materials |
| High Light: | MND10 PCD Blanks,PCD Blanks DCGT11T304,Carbide Turning Inserts For Aluminum Alloys |
||

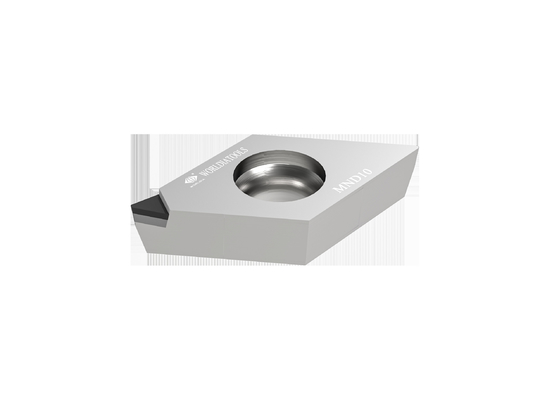

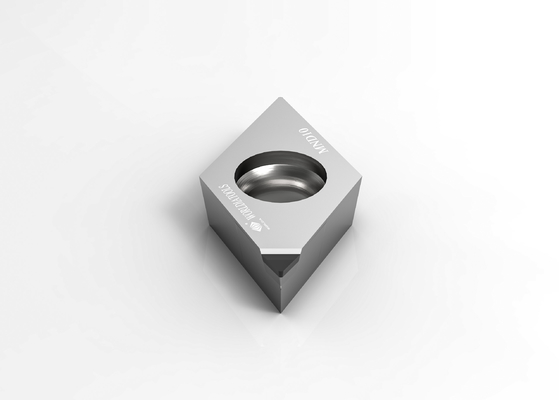

DCGT11T304 Carbide Turning Insert PCD Cutting Insert for non-ferrous materials
In the manufacturing worldia, changes push us to promote our products and service.
We are devoted to providing you with cutting tools and solutions that match your company's ambitions.
We want to grow up with you together.
Description:
"ManaNova" is a sub-brand of Worldia, focusing on the high-end standard series.
ManaNova is a concept that stands in the view of end-users, we strictly choose
PCD and PCBN materials to provide the universal cutting effect.
The critical feature of ManaNova is Easy choice and Fast delivery.
"Easy choice": It is easy to choose according to the comparison table and application.
"Fast delivery": All the types of ManaNova PCD Inserts in the catalog are available in stock.
Eliminating force majeure, you can get within 4-5 days.
Main products:
PCBN insert is suitable for machining hardened steel, gray cast iron, ductile iron, and powder metallurgy.
PCD insert (MND10 material ) is suitable for rough and finish machining of aluminum alloy and other non-metal materials.
Advantages:
·High quality
·Low cost
·Factory direct supply
Application:
| MND10 | For the cutting of non-ferrous materials such as aluminum alloys, etc. |
| PCD tools are limited to non-ferrous materials, such as high-silicon aluminum, metal matrix composites (MMC), and carbon fiber reinforced plastics (CFRP). PCD with flood coolant can also be used in titanium super-finishing applications. |
|
| ·Aluminum and aluminum alloys | |
| ·Copper, brass, and bronze alloys | |
| ·Zinc and magnesium alloys | |
| ·Carbon Fiber | |
| ·Epoxy resins | |
| ·Plastics | |
| ·Fiberglass composites | |
| ·Graphite composites |
Specification:
| Angle | Dimensions | Grade | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
MND 10 |
| DCGT 21.50.5 | DCGT 070202 | 1N | 6.35 | 2.38 | 0.2 | 2.8 | 2.5 | √ |
| DCGT 21.51 | DCGT 070204 | 1N | 6.35 | 2.38 | 0.4 | 2.8 | 2.5 | √ |
| DCGT 32.50.5 | DCGT 11T302 | 1N | 9.525 | 3.97 | 0.2 | 4.4 | 2.5 | √ |
| DCGT 32.51 | DCGT 11T304 | 1N | 9.525 | 3.97 | 0.4 | 4.4 | 2.5 | √ |
| DCGT 32.52 | DCGT 11T308 | 1N | 9.525 | 3.97 | 0.8 | 4.4 | 2.5 | √ |
| Feed rate recommendation | ||||||
| Nose radius(mm) | Ra um | |||||
| 0.2 | 0.4 | 0.8 | 1.6 | 3.2 | 6.4 | |
| Feed Rate f (mm/rev)≤ | ||||||
| 0.2 | 0.028 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 |
| 0.4 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 |
| 0.8 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 |
| 1.2 | 0.069 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 |
| 1.6 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 | 0.453 |
| 2.4 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 | 0.554 |
