Product Details:
|
| Product Brand: | WORLDIA | Product Family: | ManaNova |
|---|---|---|---|
| Name: | PCD Standard Insert | Usage: | Turning Tools |
| Material: | PCD+Carbide | PCD Grade: | MND10 |
| Model Number: | VCGW 110302 | Application: | Maching Of Non-ferrous Materials |
| High Light: | CFRP MMC PCD Cutting Inserts,VCGW PCD Cutting Inserts,MMC Carbide Inserts For Hardened Steel |
||

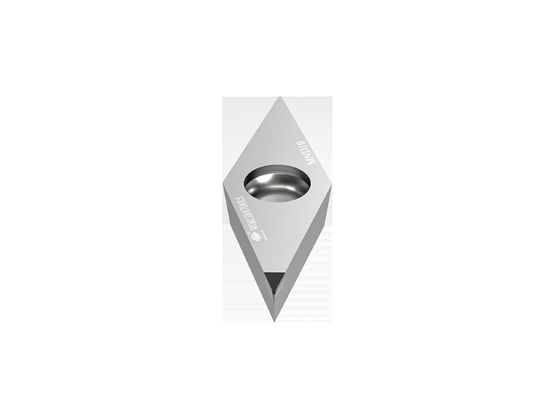

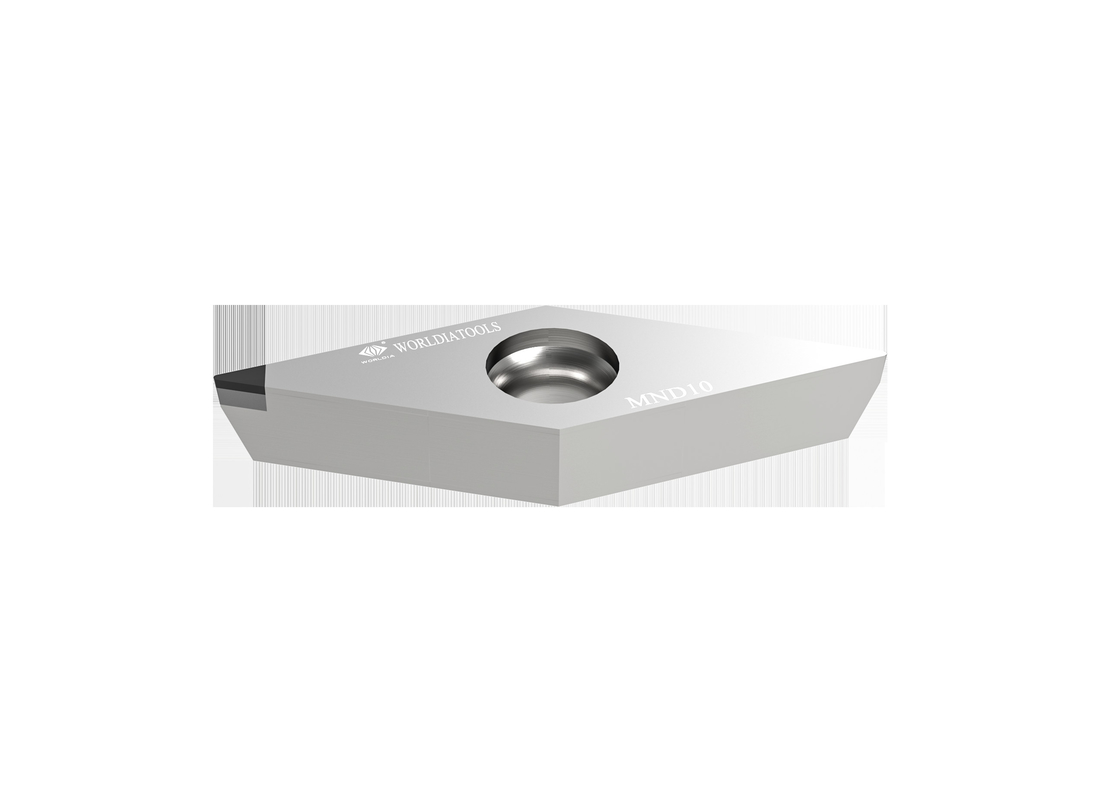

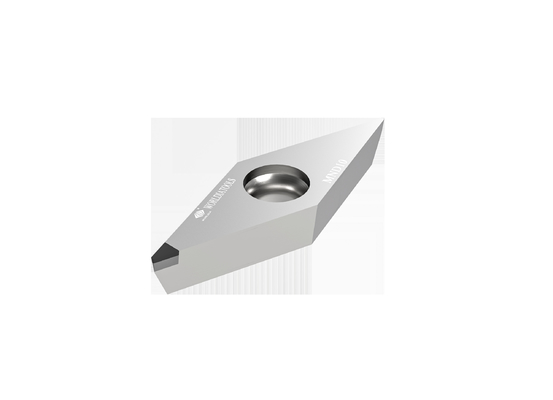

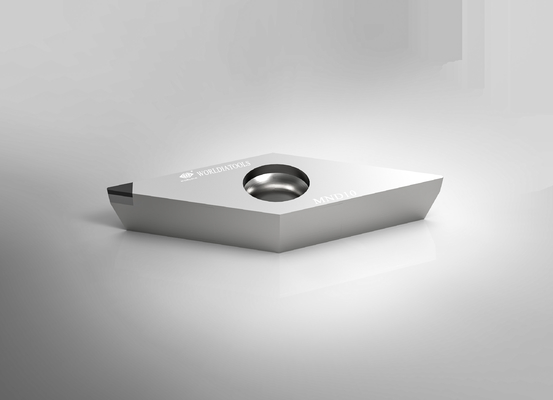

VCGW110302 Standard Carbide Turning Insert PCD Cutting Insert for non-ferrous materials
As a high-end standard cutting tool series, MANANOVA carries out the whole process of quality
management from raw materials, with sophisticated production testing equipment, professional and
experienced R&D and production team, and professional technical services, so that every user can
continue to experience Worldia cutting tools advantages.
Description:
"ManaNova" is a sub-brand of Worldia, focusing on the high-end standard series.
ManaNova is a concept that stands in the view of end-users, we strictly choose
PCD and PCBN materials to provide the universal cutting effect.
The critical feature of ManaNova is Easy choice and Fast delivery.
"Easy choice": It is easy to choose according to the comparison table and application.
"Fast delivery": All the types of ManaNova PCD Inserts in the catalog are available in stock.
Eliminating force majeure, you can get within 4-5 days.
Main products:
PCBN insert: 7material/ 1 type, universal for hardened steel, cast iron, ductile iron, and powder metallurgy.
PCD insert: Providing stable, universal, high efficient cutting effect.
PCD Turning Inserts can be used in many fields including the car industry, energy equipment, and the wood and stone
industry. It can be used to cut and process materials such as nonferrous metal, tungsten carbide, ceramic,
nonmetal, and composite material.
Advantages:
· Universal
· Easy choice
· Fast delivery
Application:
| MND10 | Applied to the cutting of non-ferrous materials such as aluminum alloys, etc. |
| PCD tools are limited to non-ferrous materials, such as high-silicon aluminum, metal matrix composites (MMC), and carbon fiber reinforced plastics (CFRP). PCD with flood coolant can also be used in titanium super-finishing applications. |
|
| ·Aluminum and aluminum alloys | |
| ·Copper, brass, and bronze alloys | |
| ·Zinc and magnesium alloys | |
| ·Carbon Fiber | |
| ·Epoxy resins | |
| ·Plastics | |
| ·Fiberglass composites | |
| ·Graphite composites |
Specification:
| Angle | Dimensions | Grade | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
MND 10 |
| VCGW 220.5 | VCGW 110302 | 1N | 6.35 | 3.18 | 0.2 | 2.8 | 2.5 | √ |
| VCGW 221 | VCGW 110304 | 1N | 6.35 | 3.18 | 0.4 | 2.8 | 2.5 | √ |
| VCGW 330.5 | VCGW 160402 | 1N | 9.525 | 4.76 | 0.2 | 4.4 | 2.5 | √ |
| VCGW 331 | VCGW 160404 | 1N | 9.525 | 4.76 | 0.4 | 4.4 | 2.5 | √ |
| VCGW 332 | VCGW 160408 | 1N | 9.525 | 4.76 | 0.8 | 4.4 | 2.5 | √ |
| Feed rate recommendation | ||||||
| Nose radius(mm) | Ra um | |||||
| 0.2 | 0.4 | 0.8 | 1.6 | 3.2 | 6.4 | |
| Feed Rate f (mm/rev)≤ | ||||||
| 0.2 | 0.028 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 |
| 0.4 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 |
| 0.8 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 |
| 1.2 | 0.069 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 |
| 1.6 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 | 0.453 |
| 2.4 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 | 0.554 |
