Product Details:
|
| Product Brand: | WORLDIA | Product Family: | ManaNova |
|---|---|---|---|
| Model Number: | TCGW 090202 | Name: | PCD Standard Insert |
| Usage: | Turning Tools | Material: | PCD+Carbide |
| PCD Grade: | MND10 | Tips: | 1N |
| Type: | PCD Cutting Insert | Application: | High-precision Maching Of Non-ferrous Materials |
| High Light: | High Silicon Aluminium PCD Tipped Inserts,TCGW pcd inserts for aluminum,TCGW Carbide Insert Lathe Tools |
||

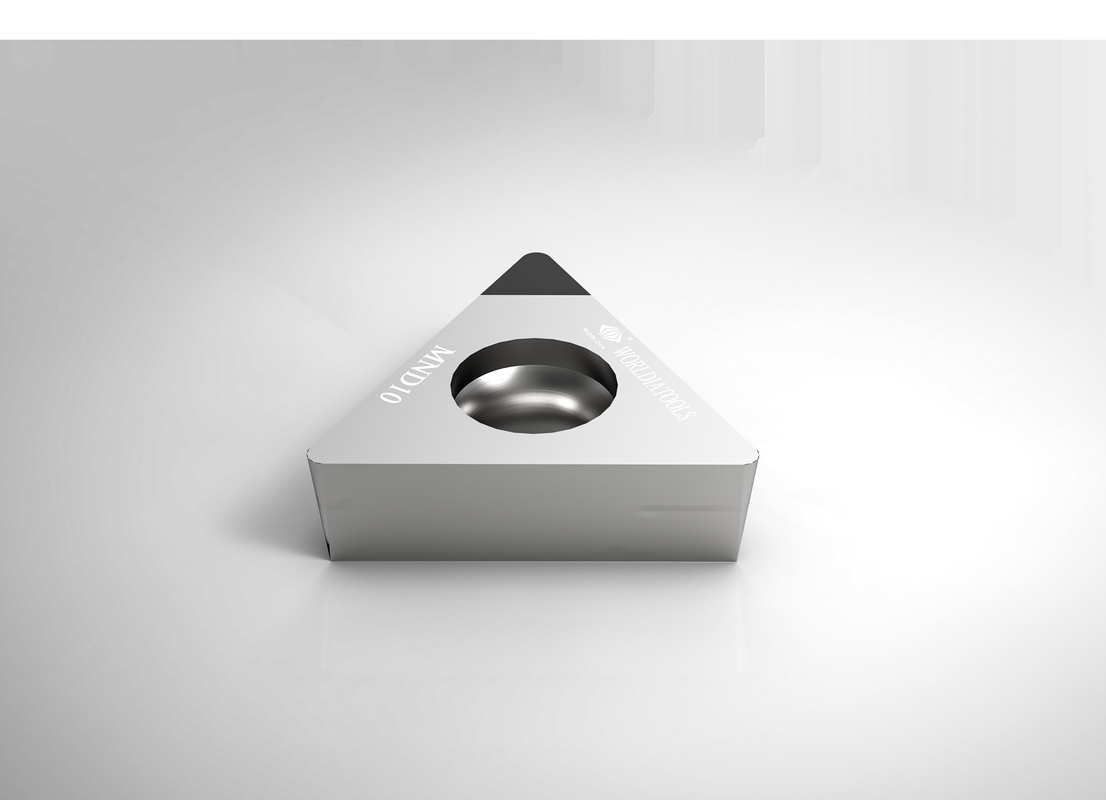

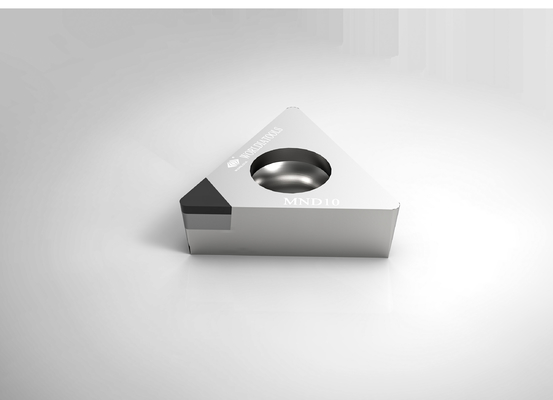

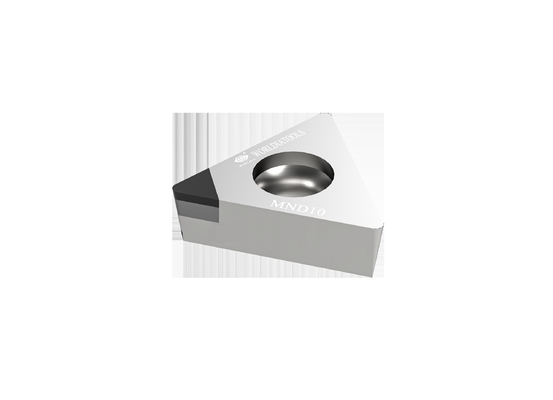

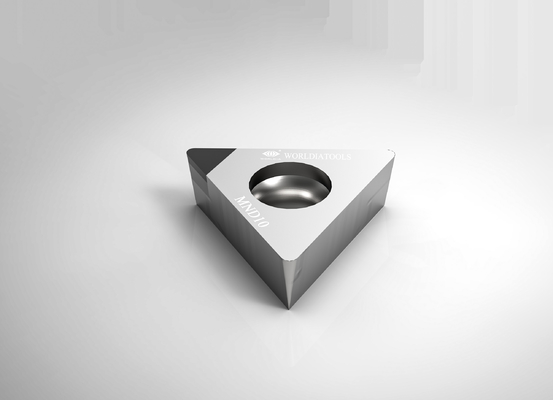

TCGW090202 Standard Carbide Turning Insert PCD Cutting Insert for non-ferrous materials
Description:
"ManaNova" is a sub-brand of Worldia, focusing on high-end standard series.
We strictly select PCD and PCBN materials to meet customers' standardized and general
cutting requirements and provide fast and efficient services
Easy choice and Fast delivery is the feature of ManaNova
"Easy choice" : It is easy to choose according to comparison table .
"Fast delivery": All the types of ManaNova PCD Inserts in the catalog are available in stock.
Main products:
PCBN insert: 7material/ 1 type, universal for hardened steel,cast iron,ductile iron and powder metallury.
Worldia ManaNova series covers 7 high-quality CBN grades for the processing of hardened steel, cast iron,
and powder metallurgy, the available grades are MHN10C, MHN20C, MHN30C, MKN10, MKN20, MSN10, MSN20.
PCD Turning Inserts can be used in many fields including car industry, energy equipment, and the wood and stone
industry. It can be used to cut and process different materials such as nonferrous metal, tungsten carbide, ceramic,
nonmetal and composite material.
PCD insert is suitable for rough and finish machining of aluminum alloy and other non-metal materials.
Advantages:
·High quality
·Low cost
·Factory direct supply
Service:
· Online store service
· Local distributer support
· Technical support
Application:
| MND10 | Applied to cutting of non-ferrous materials such as aluminum alloys,etc. |
| PCD tools are limited to non-ferrous materials, such as high-silicon aluminium, metal matrix composites (MMC) and carbon fibre reinforced plastics (CFRP). PCD with flood coolant can also be used in titanium super-finishing applications. |
|
| ·Aluminum and aluminum alloys | |
| ·Copper, brass and bronze alloys | |
| ·Zinc and magnesium alloys | |
| ·Carbon Fiber | |
| ·Epoxy resins | |
| ·Plastics | |
| ·Fiberglass composites | |
| ·Graphite composites |
Specification:
| Angle | Dimensions | Grade | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
MND 10 |
| TCGW 1.81.50.5 | TCGW 090202 | 1N | 5.56 | 2.38 | 0.2 | 2.4 | 2.5 | √ |
| TCGW 1.81.51 | TCGW 090204 | 1N | 5.56 | 2.38 | 0.4 | 2.4 | 2.5 | √ |
| TCGW 220.5 | TCGW 110302 | 1N | 6.35 | 3.18 | 0.2 | 2.8 | 2.5 | √ |
| TCGW 221 | TCGW 110304 | 1N | 6.35 | 3.18 | 0.4 | 2.8 | 2.5 | √ |
| TCGW 222 | TCGW 110308 | 1N | 6.35 | 3.18 | 0.8 | 2.8 | 2.5 | √ |
| TCGW 32.51 | TCGW 16T304 | 1N | 9.525 | 3.97 | 0.4 | 4.4 | 2.5 | √ |
| TCGW 32.52 | TCGW 16T308 | 1N | 9.525 | 3.97 | 0.8 | 4.4 | 2.5 | √ |
| L-TCGW 32.50.5 | L-TCGW 16T302 | 2N | 9.525 | 3.97 | 0.2 | 4.4 | 16.2 | √ |
| L-TCGW 32.51 | L-TCGW 16T304 | 2N | 9.525 | 3.97 | 0.4 | 4.4 | 15.9 | √ |
| L-TCGW 32.52 | L-TCGW 16T308 | 2N | 9.525 | 3.97 | 0.8 | 4.4 | 15.3 | √ |
| F-VBGW 1.81.51 | F-VBGW 090204 | 3N | 5.56 | 2.38 | 0.4 | 2.4 | 9 | √ |
| Feed rate recommendation | ||||||
| Nose radius(mm) | Ra um | |||||
| 0.2 | 0.4 | 0.8 | 1.6 | 3.2 | 6.4 | |
| Feed Rate f (mm/rev)≤ | ||||||
| 0.2 | 0.028 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 |
| 0.4 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 |
| 0.8 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 |
| 1.2 | 0.069 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 |
| 1.6 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 | 0.453 |
| 2.4 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 | 0.554 |
