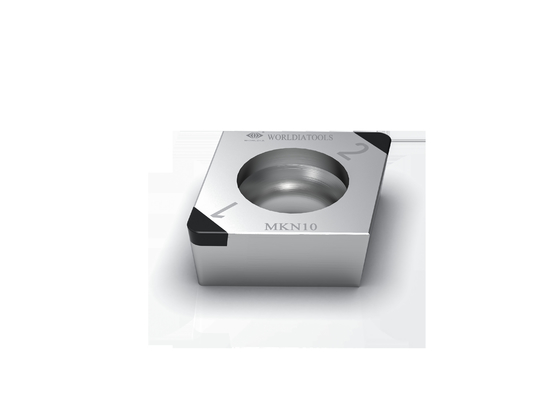

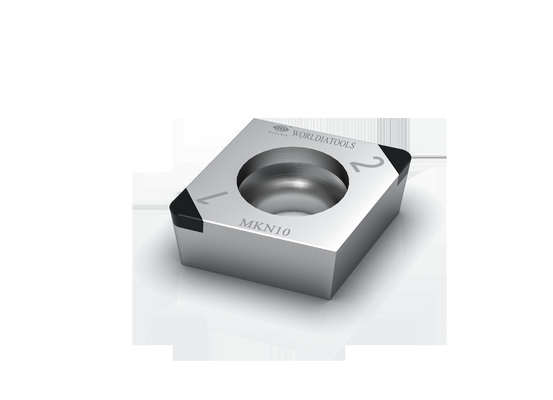

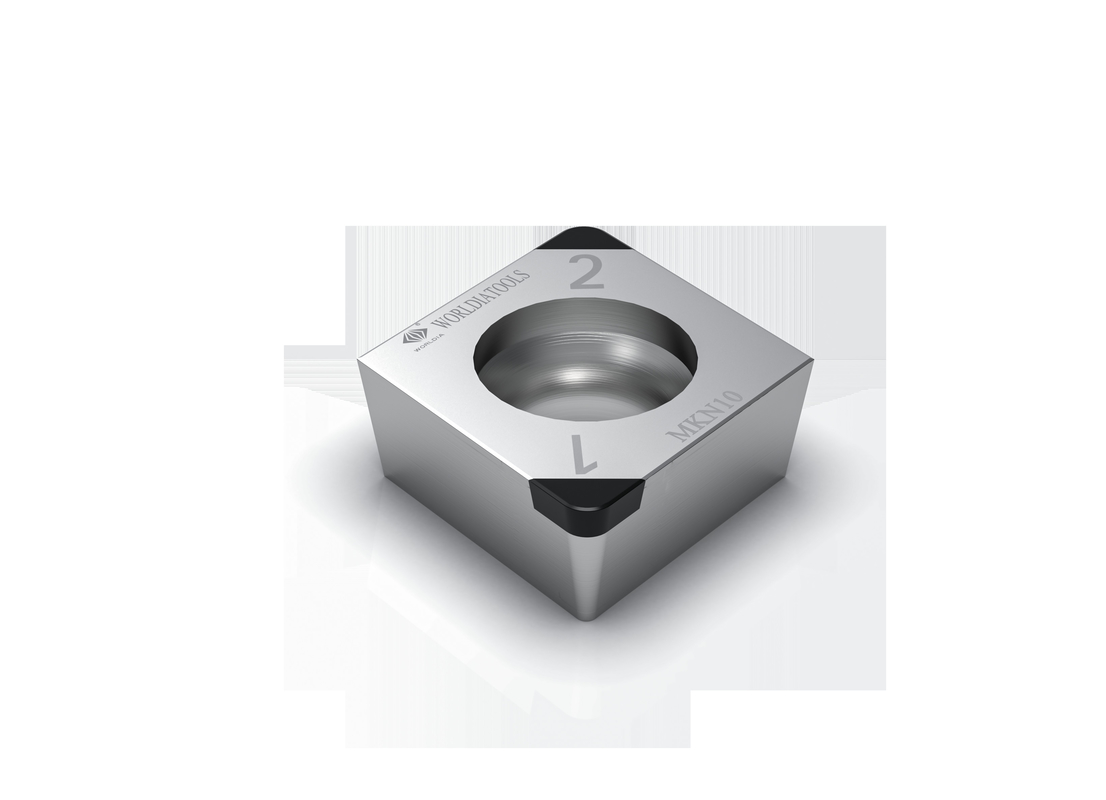

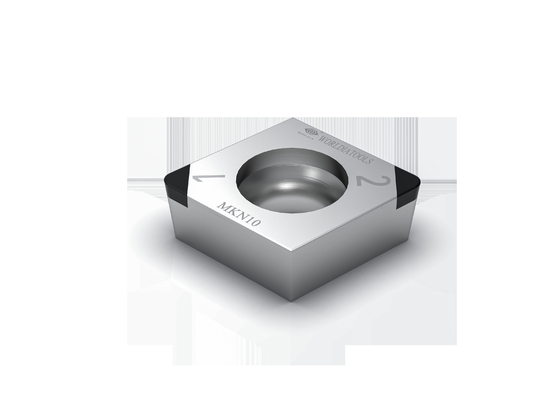

CCGW09T308 Standard PCBN Carbide Turning Insert PCBN Cutting Insert for cast iron
WORLDIA
WORLDIA pays special attention to the making of Standard Super Hard Cutting Tools.
And we have made a tremendous amount of technical innovations in designing and manufacturing
PCBN/PCD/CVD inserts and related products.
Description:
"ManaNova" is a sub-brand of Worldia, focusing on the high-end standard series.
ManaNova is a concept that stands in the view of end-users, we strictly choose
PCD and PCBN materials to provide the universal cutting effect.
Material:
Tools with Poly-Crystalline Diamond (PCD) cutting materials can reduce your tooling cost significantly,
PCD tools are ideal for use with non-ferrous metal, such as aluminum, Zinc, and magnesium alloys,
GRP composites, carbon fiber reinforced plastics, “green” carbide, and ceramic as well as all abrasive materials.
Polycrystalline cubic boron nitride(CBN) is a material with an excellent hot hardness that can be used at very
high cutting speeds. It also exhibits good toughness and thermal shock resistance.CBN tools are ideal for use
with hardened steel, cast irons, and sintered irons as well as powder metallurgy components.
Main products:
PCBN insert is suitable for machining hardened steel, gray cast iron, ductile iron, and powder metallurgy.
PCD insert (MND10 material ) is suitable for rough and finish machining of aluminum alloy and other non-metal materials.
Advantages:
· Universal
· Easy choice
· Fast delivery
Specification:
Material Introduction - Easy choice for CBN Grade
ISO H: Hardened Steel Continuous cutting
ISO K: Cast Iron Light interrupted cutting
ISO S: Powder Metallurgy Heavy interrupted cutting
| Material |
ISO H |
ISO K |
ISO S |
| PCBN Grade |
MHN10C |
MHN20C |
MNH30C |
MKN10 |
MKN20 |
MSN10 |
MSN20 |
| Smooth |
Moderate |
Toughness |
Cast Iron |
Ductile Iron |
Powder Metallurgy |
Powder Metallurgy |
| Vc |
180(150~250)
m/min |
100(50~150)
m/min |
80(30~120)
m/min |
600(300~800)
m/min |
300(150~450)
m/min |
300(200~500)
m/min |
500(300~800)
m/min |
| fn |
0.1(0.03~0.2)
mm/r |
0.1(0.03~0.2)
mm/r |
0.1(0.03~0.2)
mm/r |
0.1(0.03~0.3)
mm/r |
0.1(0.03~0.3)
mm/r |
0.1(0.03~0.3)
mm/r |
0.1(0.03~0.3)
mm/r |
| % |
45~55 |
60~70 |
85~95 |
85~95 |
60~70 |
60~70 |
85~95 |
| Grain size |
1~2 um |
1~2 um |
2~3um |
2~3 um |
1~2 um |
1~2 um |
2~3 um |
| Bond |
TiC |
TiN |
Co/W |
Co/W |
TiCN |
TiCN |
Co/W |
| CCGW |
Shape |
Dimensions |
| ANSI Code |
ISO Code |
Tips |
IC
mm |
S
mm |
R
mm |
Φd
mm |
LE
mm |
All
Stocked |
CCGW 21.50.5 |
CCGW 060202 |
2N |
6.35 |
2.38 |
0.2 |
2.8 |
2.2 |
| CCGW 21.51 |
CCGW 060204 |
2N |
6.35 |
2.38 |
0.4 |
2.8 |
2.2 |
| CCGW 21.52 |
CCGW 060208 |
2N |
6.35 |
2.38 |
0.8 |
2.8 |
2.2 |
| |
|
|
|
|
|
|
|
| CCGW 32.50.5 |
CCGW 09T302 |
2N |
9.525 |
3.97 |
0.2 |
4.4 |
2.2 |
| CCGW 32.51 |
CCGW 09T304 |
2N |
9.525 |
3.97 |
0.4 |
4.4 |
2.2 |
| CCGW 32.52 |
CCGW 09T308 |
2N |
9.525 |
3.97 |
0.8 |
4.4 |
2.2 |
| CCGW 32.53 |
CCGW 09T312 |
2N |
9.525 |
3.97 |
1.2 |
4.4 |
2.2 |
