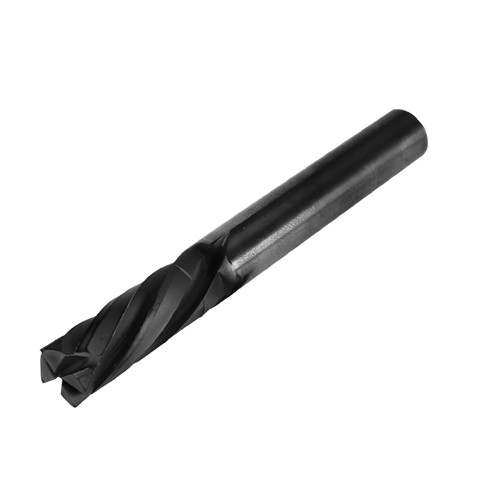

Herringbone End Mill Solid Carbide Cutting Tools For Composite Materials

Herringbone End Mill Solid Carbide Cutting Tools For Composite Materials
Herringbone End Mill Solid Carbide Cutting Tools For Composite Materials
Herringbone End Mill Solid Carbide Cutting Tools For Composite Materials Herringbone End Mill Solid Carbide Cutting Tools For Composite Materials Herringbone End Mill Solid Carbide Cutting Tools For Composite Materials

Large Image :  Herringbone End Mill Solid Carbide Cutting Tools For Composite Materials

Product Details:
Place of Origin: Beijing, China
Brand Name: Worldia
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 2 Piece
Price: $75/Piece
Packaging Details: 2 PCs/Blue rose box
Delivery Time: 7days
Supply Ability: 20000PCS（monthly）
Contact Now

Herringbone End Mill Solid Carbide Cutting Tools For Composite Materials

Description
Product Brand: WORLDIA Name: Herringbone End Mill
Type: End Mill Blade Length: 4.2/4.5/5.6/6.7/7/8.4/8.9 L1(0.7d)/mm
Shank Diameter: 6/6.35/8/9.525/10/12/12.7 Application: Composite Materials Cutting
High Light:

End mill Solid Carbide Cutting Tools

,

OEM Solid Carbide Cutting Tools

,

Composite Materials Herringbone End Mill

Herringbone End Mill Solid Carbide Cutting Tools for composite materials cutting



DESCRIPTION

Tools used to process composite materials
Products Mainly include Diamond-coated Multi-flute End Mill; Diamond-coated Cross-edge End mill; Diamond-coated Herringbone End Mill; Front Geometry Drill, Three-point Drill, Diamond-coated Drill-ing and Countersink integration tools, etc.
Application
  • Aircraft composite material
  • Composite material cover of automotive engine
  • Phone holder
  • etc



Solid carbide cutting tools
We manufacturer solid carbide cutting tools with a number of fifive axis CNC linkage grinders, tool
inspectors, HAIMER dynamical balancing machines, ZOLLER tool setting gauge, and other indus
trial high-end equipment and instruments.We specialized in providing professional services
including R&D, manufacturing, regrinding and technical services.
Our purpose is to solve processing problems for customers and e
nhance their competitiveness.
The main product includes solid carbide drills,mills,reamers,profifiling cutters,customized tools
and related tools regrinding service.The products are mainly used in automotive, mold, 3C, medi
cal and other precision manufacturing industries etc.

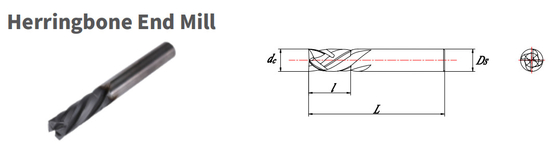

SPECIFICATION

Herringbone End Mill Solid Carbide Cutting Tools For Composite Materials 0

Blade diameter
dc/mm		 Blade length
I/mm		 Total length
L/mm		 Shank diameter
Ds/mm		 Blade length
l1(0.7d)/mm		 Coating type
6 18 62 6 4.2 None/Diamond
6.35 18 62 6 4.5 None/Diamond
8 25 78 8 5.6 None/Diamond
9.525 25 78 9.525 6.7 None/Diamond
10 25 78 10 7 None/Diamond
12 25 78 12 8.4 None/Diamond
12.7 25 78 12.7 8.9 None/Diamond

CUTTING PARAMETER

CFRP,CFRP/AI,CFRP/Ti
Mill method Mill Slot(ae=dc,ap≦dc) Copy Milling(ae≦0.5dc,ap≦1.5dc) High speed milling(ae≦0.05dc,ap≦2dc)
  Vc=120m/min Vc=150m/min Vc=250m/min
dc(mm) n(rpm) Fr(mm/r) n(rpm) Fr(mm/r) n(rpm) Fr(mm/r)
1 38217 0.035 47771 0.035 79618 0.077
1.2 31847 0.04 39809 0.04 66348 0.088
1.5 25478 0.004 31847 0.044 53079 0.097
1.8 21231 0.004 26539 0.044 44232 0.097
2 19108 0.045 23885 0.045 39809 0.099
2.5 15287 0.05 19108 0.05 31847 0.11
3 12739 0.06 15924 0.06 26539 0.132
4 9554 0.08 11943 0.08 19904 0.176
6 6369 0.11 7962 0.11 13270 0.242
6.35 6018 0.12 7523 0.12 12538 0.264
8 4777 0.23 5971 0.23 9952 0.506
9.525 4012 0.31 5015 0.31 8359 0.682
10 3822 0.35 4777 0.35 7962 0.77
12 3185 0.44 3981 0.44 6635 0.968
12.7 3009 0.48 3761 0.48 6269 1.056
GFRP,GFRP/Al,GFRP/Ti
Mill method Mill Slot(ae=dc,ap≦dc) Copy Milling(ae≦0.5dc,ap≦1.5dc) High speed milling(ae≦0.05dc,ap≦2dc)
  Vc=120m/min Vc=150m/min Vc=250m/min
dc(mm) n(rpm) Fr(mm/r) n(rpm) Fr(mm/r) n(rpm) Fr(mm/r)
1 31847 0.035 38217 0.035 63694 0.077
1.2 26539 0.04 31847 0.04 53079 0.088
1.5 21231 0.044 25478 0.044 42463 0.097
1.8 17693 0.044 21231 0.044 35386 0.097
2 15924 0.045 19108 0.045 31847 0.099
2.5 12739 0.05 15287 0.05 25478 0.11
3 10616 0.06 12739 0.06 21231 0.132
4 7962 0.08 9554 0.08 15924 0.176
6 5308 0.11 6369 0.11 10616 0.242
6.35 5015 0.12 6018 0.12 10031 0.264
8 3981 0.23 4777 0.23 7962 0.506
9.525 3344 0.31 4012 0.31 6687 0.682
10 3185 0.35 3822 0.35 6369 0.77
12 2654 0.44 3185 0.44 5308 0.968
12.7 2508 0.48 3009 0.48 5015 1.056



About us:

Herringbone End Mill Solid Carbide Cutting Tools For Composite Materials 1

Tag:

Cross Edge solid carbide end mill,

Roughing End Mill For Phone Holder,

dia 12.7mm solid carbide end mill cutter
