Product Details:
|
| Number Of Blades: | 2 Edge, 3 Edge, 4 Edge, 5 Edge, 6 Edge | Name: | Cermet End Mill |
|---|---|---|---|
| Application: | Carbon Steel, Stainless Steel | Product Brand: | WORLDIA |
| Type: | End Mill | Blade Diameter Dc (mm): | 3～32 |
| Highlight: | Cermet End Mill Solid Carbide Tools,Solid Carbide Tools For Stainless Steel,6 Edge Cermet End Mill |
||

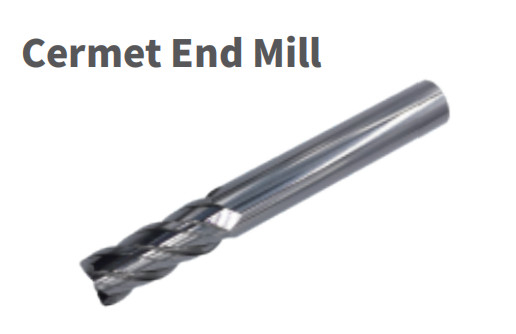

Cermet End Mill Solid Carbide Ceramic tools for Carbon steel, stainless steel
DESCRIPTION
Compared with cemented carbide tools, ceramic tools are more resistant to high
temperatures and can achieve dry cutting, which not only saves costs but also is
environmentally friendly; Good oxidation resistance makes it possible to realize
high-speed cutting and improved production efficiency; Ceramic tools do not need
coating, and can be used directly after CNC grinding
SPECIFICATION
The friction coefficient of the cermet end mill is small, and it is easier to achieve
higher surface quality when cutting steel parts.
| Materials suitable for processing | Carbon steel, stainless steel |
| Milling form | Side milling, shoulder milling, cavity milling, etc. |

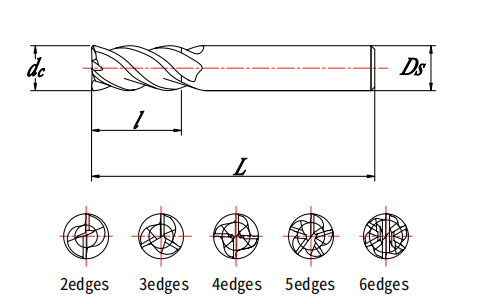

| Blade diameter dc (mm) | 3～32 |
| Blade length (l mm) | 5～100 |
| Total length L (mm) | 38～200 |
| Shank diameter Ds (mm) | 4～32 |
| Handle form | Cylindrical shank |
| Number of blades | 2 edge, 3 edge, 4 edge, 5 edge, 6 edge |
| other | The blade can be designed to shrink, avoid air, taper, etc. |
