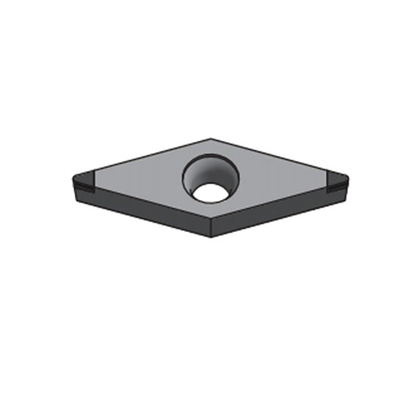

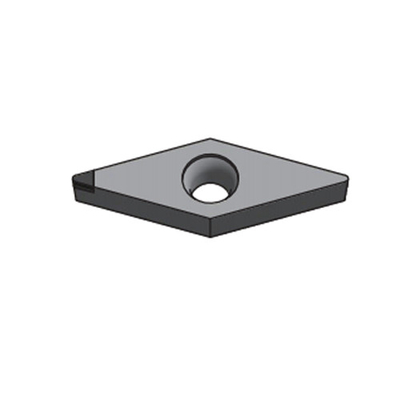

-60 Degree VC Type PCD Chip Breaker Inserts For Non Ferrous Materials

-60 Degree VC Type PCD Chip Breaker Inserts For Non Ferrous Materials
-60 Degree VC Type PCD Chip Breaker Inserts For Non Ferrous Materials
-60 Degree VC Type PCD Chip Breaker Inserts For Non Ferrous Materials -60 Degree VC Type PCD Chip Breaker Inserts For Non Ferrous Materials -60 Degree VC Type PCD Chip Breaker Inserts For Non Ferrous Materials -60 Degree VC Type PCD Chip Breaker Inserts For Non Ferrous Materials

Large Image :  -60 Degree VC Type PCD Chip Breaker Inserts For Non Ferrous Materials

Product Details:
Place of Origin: Beijing, China
Brand Name: ManaNova
Model Number: VC Type
Payment & Shipping Terms:
Minimum Order Quantity: 2 Piece
Delivery Time: 20days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 140,000 (monthly)
Contact Now

-60 Degree VC Type PCD Chip Breaker Inserts For Non Ferrous Materials

Description
Product Brand: WORLDIA Model Number: VC Type
Material: PCD Edge Types: Chip Breaker
PCBN Grade: PD01E/ PD10E / PD32E Application: Maching Of Non-ferrous Materials
Tips: 1N/2N Coating: Uncoated
High Light:

PCD Chip Breaker Inserts

,

VC Type Chip Breaker Inserts

,

-60 Degree chip breaking inserts

VC Type PCD Chip-breaker Insert - 80° for non-ferrous materials machining



WORLDIA

WORLDIA pays special attention to the making of Standard Super Hard Cutting Tools.

And we have made a tremendous amount of technical innovations in the design and manufacturing

of PCBN/PCD/CVD inserts and related products.



DESCRIPTION

The Worldia PCD insert is distinguished for high hardness, high compressive strength,

large thermal conductivity, and good wear resistance. It operates with high processing accuracy

and large efficiency at high speed. For this series, we have a newly developed two-edge

PCD cutter with a chip breaker.



APPLICATIONS

PCD tools are limited to non-ferrous materials, such as high-silicon aluminum, metal matrix

composites (MMC), and carbon fiber reinforced plastics (CFRP).
PCD with flood coolant can also be used in titanium super-finishing applications.



MATERIAL INTRODUCTION



We manufacture PCD Tools with advanced processing machines and control the product quality

from the very beginning which keeps PCD tools with high accuracy and good quality with consistency





According to grain size and features of a diamond, four types of PCD material,
i.e PD01E / PD10E / PD32E / CVDD are listed as below.



Material Grain size Features Application
PD01E 1 PD01E fine grain size PCD material(1μm) is suitable for finishing applications. Its high impact resistance and high abrasive resistance are no less than that of a rough grade of PCD. PD01E has excellent chip resistance and is suitable for roughing and interrupting cutting aluminum alloys. This grade is also commonly used for non-ferrous finishing applications. Other successful applications include machining of wood and MDF.
PD10E 10 PD10E is the universal grade in the market. It`s the first choice for many applications where a good balance of toughness and wear resistance are required. This Grade is commonly used for non-ferrous finishing applications. Other successful applications include machining of wood and MDF.The machining of low-medium content silicon aluminum alloys, carbide, hard rubber, graphite, and so on.
PD32E 2-30 PD32E has a unique combination of wear resistance, edge strength, and edge quality. It contains a carefully sorted mix of micron diamond(Between 2 - 30 μm). The combination of these particle sizes and a specifically developed high-pressure sintering process produces a structure with extreme abrasion resistance and good thermal stability. Application areas include the machining of abrasive workpieces such as MMC, and high silicon aluminum alloys as well as the machining of carbide, hard rubber, graphite, and other applications.
CVDD - CVDD is a pure carbon material without a binder with extreme abrasion resistance and good thermal suitability. Due to its perfect cutting edge suitable for applications where mirror finishes are required. Application areas include the machining of abrasive workpieces such as MMC, and high silicon aluminum alloys as well as the machining of carbide, hard rubber, graphite, and other applications.

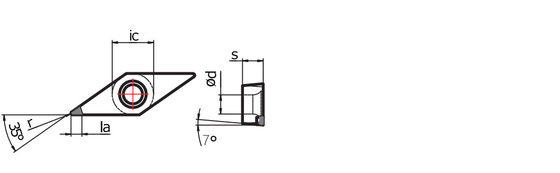

 SPECIFICATIONS

      Grade       ic φd s r la
ISO catalog number ANSI catalog number Tip Shape PD01E PD10E PD32E CVDD mm mm mm mm mm
VCGW110302-1N P00P07 VCGW22(0.5)-1N P00P07 CBCBC125S ● ● ●   6.35 2.8 3.18 0.2 2.5
VCGW110304-1N P00P07 VCGW22 1-1N P00P07 CBCBC125S ● ● ●   6.35 2.8 3.18 0.4 2.5
VCGW110302-1N P00P07 VCGW22(0.5)-1N P00P07 SLCBC125S       ● 6.35 2.8 3.18 0.2 2.5
VCGW110304-1N P00P07 VCGW22 1-1N P00P07 SLCBC125S       ● 6.35 2.8 3.18 0.4 2.5
VCGW110302-2N P00P07 VCGW22(0.5)-2N P00P07 CBCBC125S ● ● ●   6.35 2.8 3.18 0.2 2.5
VCGW110304-2N P00P07 VCGW22 1-2N P00P07 CBCBC125S ● ● ●   6.35 2.8 3.18 0.4 2.5
VCGW160402-1N P00P07 VCGW33(0.5)-1N P00P07 CBCBC125S ● ● ●   9.525 4.4 4.76 0.2 2.5
VCGW160404-1N P00P07 VCGW33 1-1N P00P07 CBCBC125S ● ● ●   9.525 4.4 4.76 0.4 2.5
VCGW160408-1N P00P07 VCGW33 2-1N P00P07 CBCBC125S ● ● ●   9.525 4.4 4.76 0.8 2.5
VCGW160402-1N P00P07 VCGW33(0.5)-1N P00P07 SLCBC125S       ● 9.525 4.4 4.76 0.2 2.5
VCGW160404-1N P00P07 VCGW33 1-1N P00P07 SLCBC125S       ● 9.525 4.4 4.76 0.4 2.5
VCGW160408-1N P00P07 VCGW33 2-1N P00P07 SLCBC125S       ● 9.525 4.4 4.76 0.8 2.5
VCGW160402-2N P00P07 VCGW33(0.5)-2N P00P07 CBCBC125S ● ● ●   9.525 4.4 4.76 0.2 2.5
VCGW160404-2N P00P07 VCGW33 1-2N P00P07 CBCBC125S ● ● ●   9.525 4.4 4.76 0.4 2.5
VCGW160408-2N P00P07 VCGW33 2-2N P00P07 CBCBC125S ● ● ●   9.525 4.4 4.76 0.8 2.5
