Product Details:
|
| Usage: | Part-grooving Machining | Type: | Grooving Series |
|---|---|---|---|
| Model Number: | CMMN 300040-C | Coating: | PVD |
| Material: | CT5025/CT5035/CT020K/CT3010 | Application: | Steel, Stainless Steel, Cast Iron, Aluminum Alloy, High Temperature Materials, Hardened Steel |
| Highlight: | Worldia carbide cut off inserts,CMMN carbide cut off inserts,CNC grooving insert For Cast Iron |
||

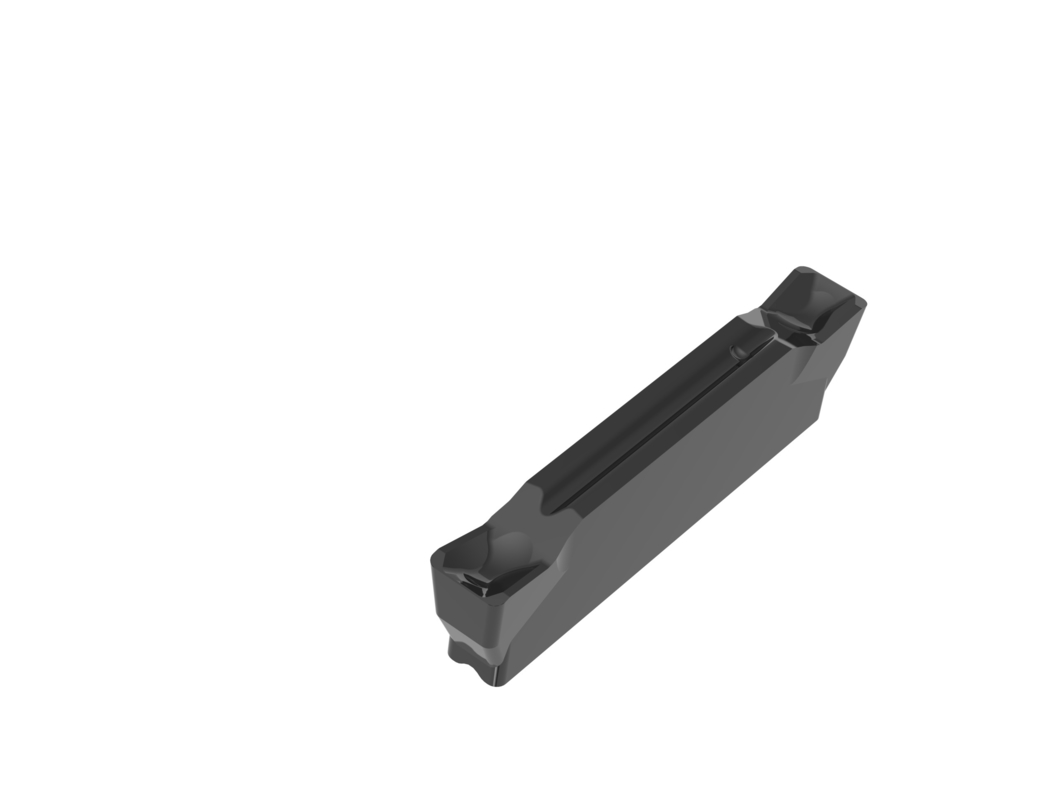

CMMN 300040-C PVD Coating carbide insert for CNC Part-grooving processing
INTRODUCTION
Worldia (Jiaxing) Cemented Carbide CNC Tools Co., Ltd. was established in Jiaxing city in 2021.
It is the wholly-owned subsidiary of Beijing Worldia Diamond Tools Co., Ltd. (Stock code:688028) that
is one of the first companies to enter the SSE STAR MARKET.
PVD Coating carbide grooving brand
| Material | ISO | Feature |
| CT5025 | P15-P35 | The first choice of universal machining Steel, stainless steel, and high-temperature alloy on universal machining under the stable condition |
| M15-M35 | ||
| S15-S35 | ||
| CT5035 | P25-P45 | High toughness substrate, suit for interrupted cutting at the low condition Stainless steel, steel on the interrupted cutting |
| M25-M45 | ||
| CT020K | K10-K30 | Specialized for cast iron, grey cast iron, and ductile cast iron on universal machining |
| CT3010 | S05-S25 | Super high hardness substrate High-temperature alloy. titanium alloy and hardened steel on grooving |
| H05-H25 |
SPECIFICATION

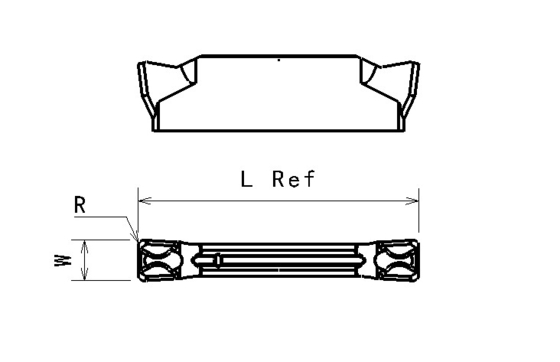

| Type | Cutting Data | Geometrical dimension | ||||
| F(mm/rev) | Tmax | W | R | L | ||
| CMMN | 150015-C | 0.05-0.20 | 15 | 1.5 | 0.15 | 16 |
| 200020-C | 0.06-0.20 | 15 | 2 | 0.2 | 16 | |
| 250020-C | 0.06-0.20 | 17 | 2.5 | 0.25 | 18 | |
| 300040-C | 0.07-0.22 | 20 | 3 | 0.4 | 21 | |
| 400040-C | 0.08-0.25 | 20 | 4 | 0.4 | 21 | |
| 500080-C | 0.09-0.30 | 25 | 5 | 0.8 | 26 | |
| 600080-C | 0.11-0.35 | 25 | 6 | 0.8 | 26 | |
Cutting case
| Brand | Worldia | Other brands |
| Type | CMGDN 400-030 C CT5025 | DGN 4003 **** |
| Workpiece | 4130 | 4130 |
| Machining way | Grooving | Grooving |
| Cutting speed | Vc=150m/min | Vc=150m/min |
| Feed | fn=0.12mm/r | fn=0.12mm/r |
| Deep | ap=8mm | ap=8mm |
| Cooling | Out cooling(oil) | Out cooling(oil) |
| Life | 60min | 60min |
