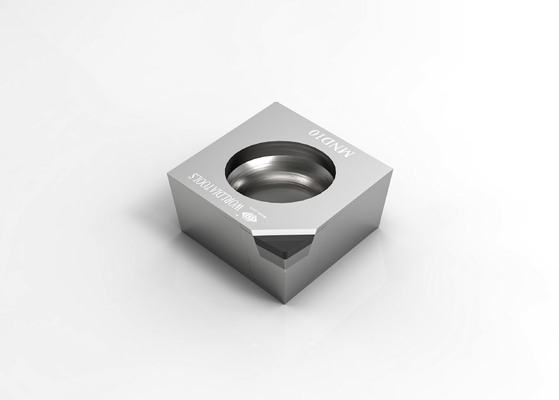

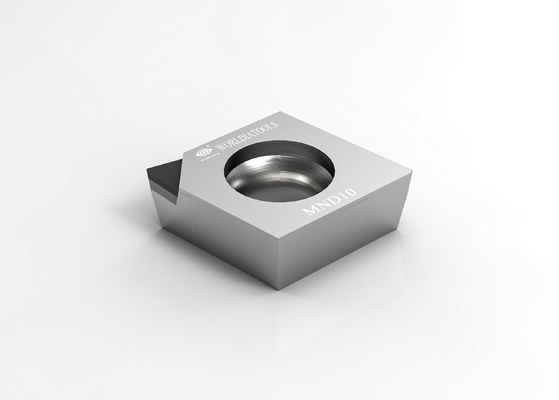

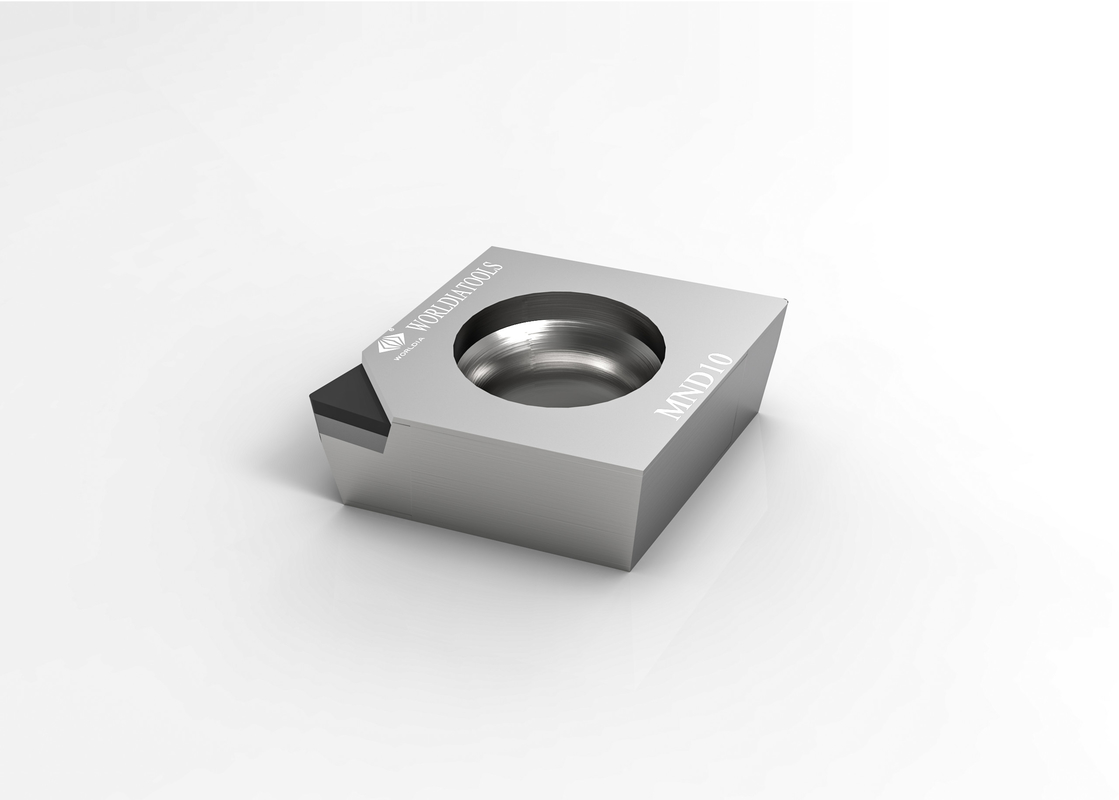

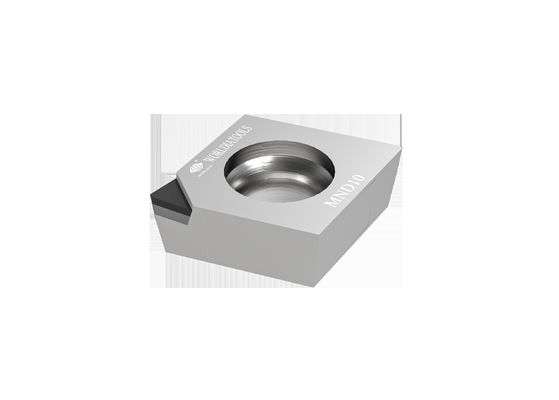

Universal CCGT PCD Turning Insert Carbide Inserts For Metal Lathe

Universal CCGT PCD Turning Insert Carbide Inserts For Metal Lathe
Universal CCGT PCD Turning Insert Carbide Inserts For Metal Lathe Universal CCGT PCD Turning Insert Carbide Inserts For Metal Lathe Universal CCGT PCD Turning Insert Carbide Inserts For Metal Lathe Universal CCGT PCD Turning Insert Carbide Inserts For Metal Lathe

Large Image :  Universal CCGT PCD Turning Insert Carbide Inserts For Metal Lathe

Product Details:
Place of Origin: Beijing, China
Brand Name: ManaNova
Certification: ISO9001,14001.18001, RoHS
Model Number: CCGT
Payment & Shipping Terms:
Minimum Order Quantity: 2 Piece
Price: $20-40/ Piece
Packaging Details: 2 PCs/Blue rose box
Delivery Time: 3-4days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: In stock

Universal CCGT PCD Turning Insert Carbide Inserts For Metal Lathe

Description
Product Brand: WORLDIA Product Family: ManaNova
Name: PCD Standard Insert Usage: Turning Tools
Material: PCD+Carbide PCD Grade: MND10
Model Number: CCGT Application: High-precision Maching Of Non-ferrous Materials
High Light:

Universal CCGT PCD Turning Insert

,

ISO9001 PCD Turning Insert

,

CCGT Carbide Inserts For Metal Lathe

CCGT Standard Carbide Turning Insert PCD Cutting Insert for non-ferrous materials


Description:
"ManaNova" is a sub-brand of Worldia,focusing on the high-end standard series.
ManaNova is a concept which stands at the view of end-users, we strictly choose PCD and PCBN Material
to provide universal cutting effect.
The key feature of ManaNova is Easy choice and Fast delivery.
"Easy choice" : It is easy to choose according to comparison table and application.
"Fast delivery": All the types of ManaNova PCD Inserts in the catalog are available in stock.

                         Eliminating of force majeure, you can get within 4-5 days.
Main products:
PCBN insert: material/ 1 type, universal for hardened steel,cast iron,ductile iron and powder metallury.
Polycrystalline cubic boron nitride(CBN) is a material with excellent hot hardness that can be used at very high

cutting speeds. It also exhibits good toughness and thermal shock resistance.CBN tools are ideal for the use with
hardened steel,cast irons and sintered irons as well as powder metallurgy components.
PCD insert: Providing stable, universal, high efficient cutting effect.
PCD Turning Inserts can be used in many fields including car industry, energy equipment, and the wood and stone

industry. It can be used to cut and process different materials such as nonferrous metal, tungsten carbide, ceramic,
nonmetal and composite material.
Advantages:
· Universal
· Easy choice
· Fast delivery

Service:
· Online store service
· Local distributer support
· Technical support


Application:

MND10 Applied to cutting of non-ferrous materials such as aluminum alloys,etc.
PCD tools are limited to non-ferrous materials, such as high-silicon aluminium, metal matrix composites (MMC) and carbon fibre reinforced plastics (CFRP).
PCD with flood coolant can also be used in titanium super-finishing applications.
·Aluminum and aluminum alloys
·Copper, brass and bronze alloys
·Zinc and magnesium alloys
·Carbon Fiber
·Epoxy resins
·Plastics
·Fiberglass composites
·Graphite composites


Specification:


Angle Dimensions Grade
ANSI Code ISO Code Tips IC
mm
S
mm
R
mm
Φd
mm
LE
mm
MND
10
CCGT 21.50.5 CCGT 060202 1N 6.35 2.38 0.2 2.8 2.5
CCGT 21.51 CCGT 060204 1N 6.35 2.38 0.4 2.8 2.5

CCGT 32.50.5 CCGT 09T302 1N 9.525 3.97 0.2 4.4 2.5
CCGT 32.51 CCGT 09T304 1N 9.525 3.97 0.4 4.4 2.5
CCGT 32.52 CCGT 09T308 1N 9.525 3.97 0.8 4.4 2.5




Feed rate recommendation
Nose radius(mm) Ra um
0.2 0.4 0.8 1.6 3.2 6.4
Feed Rate f (mm/rev)≤
0.2 0.028 0.040 0.057 0.080 0.113 0.160
0.4 0.040 0.057 0.080 0.113 0.160 0.226
0.8 0.057 0.080 0.113 0.160 0.226 0.320
1.2 0.069 0.098 0.139 0.196 0.277 0.392
1.6 0.080 0.113 0.160 0.226 0.320 0.453
2.4 0.098 0.139 0.196 0.277 0.392 0.554
