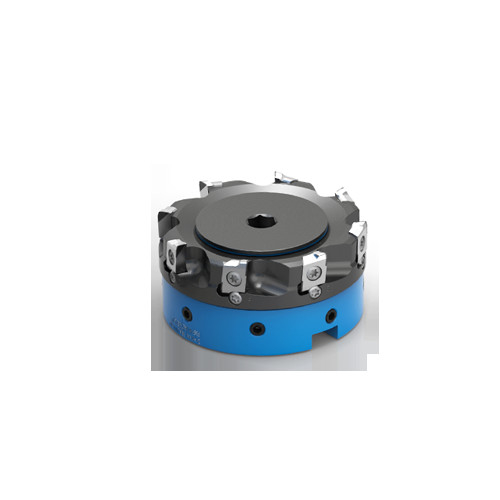

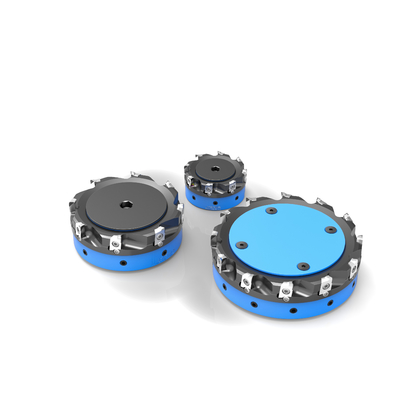

PCD Lightweight Face Milling Cutters Worldia Indexable Shell Mill

PCD Lightweight Face Milling Cutters Worldia Indexable Shell Mill
PCD Lightweight Face Milling Cutters Worldia Indexable Shell Mill
PCD Lightweight Face Milling Cutters Worldia Indexable Shell Mill PCD Lightweight Face Milling Cutters Worldia Indexable Shell Mill PCD Lightweight Face Milling Cutters Worldia Indexable Shell Mill

Large Image :  PCD Lightweight Face Milling Cutters Worldia Indexable Shell Mill

Product Details:
Place of Origin: Beijing, China
Brand Name: Worldia
Model Number: FMP080SB27-BE12-08
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: $500-1000/Piece
Delivery Time: In stock，immediate despatch
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000PCS（monthly）
Contact Now

PCD Lightweight Face Milling Cutters Worldia Indexable Shell Mill

Description
Product Brand: WORLDIA Name: PCD Indexable Face Milling Cutter
Model Number: FMP080SB27-BE12-08 Flute: 4/6/8/10/12/16/20/24/30/36
Usage: High Speed And High Presicion Cutting Coating: No
Processing Type: Finishing/Roughing Maching Application: CNC Milling Machining
High Light:

Lightweight Face Milling Cutters

,

PCD Face Milling Cutters

,

Worldia indexable shell mill

PCD Light-Weight Face Milling Cutter Indexable for CNC Milling Machining

DESCRIPTION:

  • Introduction


Innovative double metal design,perfect combination of light weight and high strength,all face milling cutters with diameters from 80mm to 160mm can be mounted on the same milling holder.Even total weight of the BT30 milling holder with the 160mm face milling cutter does not exceed 3kg.

  • Application


In different industries,many small-sized machine tools are used to processing aluminium case body.These machines have extremely precise spindles that can work at extremely high speed.They are not designed for high torque and normally the maximum tool weight that can be used is only 3 kg.WORLDIA developed lightweight milling tools that precisely matched these requirements.



FEATURES:

  • "Aluminum Alloy-Steel" double metal design the aluminum center reduces the weightwhile the hardened steel outer ring increases the rigidity speed and feeds.
  • The double metal design makes the tooling lifetime several times longer than other aluminum face milling cutter.
  • High-precision pocket seat keeps 0.02mm axial runout without insertadjustment.
  • It can be easily adjusted to 2um axial run out within 0.1mm range.
  • Inserts are designed by variety of Kr could meet different application of end milling and shoulder milling.
  • The positioning surface and Flank face separated design, keep the positioning surface effectiveness when we do relap or retip.
  • Two cutting edges design and retip service which could help our customers reduce their cost..
  • Rough and finish in one tool.


SPECIFICATIONS:


SpecificationSystem CodeDD1D2D3LAp1 MaxTeethWeightmax RPMMaterial
mmmmmmmmmmmmZKg
FMP080SB27-BE12-0840401060029802770-401180.7827500Steel-aluminium
FMP100SB27-BE12-08404010600281002770-401181.1223800Steel-aluminium
FMP125SC27-BE12-12404010600271252770-4011121.4319100Steel-aluminium
FMP160SC27-BE12-12404010600261602770-501112214900Steel-aluminium

PCD Lightweight Face Milling Cutters Worldia Indexable Shell Mill 0
MATERIAL PERFORMANCE:
PCD Lightweight Face Milling Cutters Worldia Indexable Shell Mill 1

PROCESSING CASES:
PCD Lightweight Face Milling Cutters Worldia Indexable Shell Mill 2

DETAIL:
PCD Lightweight Face Milling Cutters Worldia Indexable Shell Mill 3
SERVICES:

Under current cutting condition during machining WORLDIA can provide the most reasonablescientific
process and design to customers depends on our fully experience to ensure the high efficiency.


  • New Products Delivery
According to requirements,we can adjust the inserts and setup milling cutter completely before delivery.
  • PCD Inserts Service
Supply regrinding service.
Supply retip service which can
keep the same size as the new tools.
