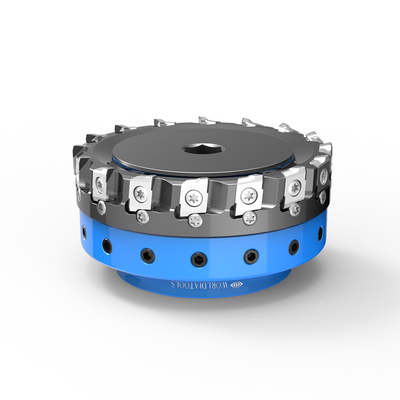

WORLDIA FMP100SB32-BE12-16 Face Milling Cutters OEM ODM

WORLDIA FMP100SB32-BE12-16 Face Milling Cutters OEM ODM
WORLDIA FMP100SB32-BE12-16 Face Milling Cutters OEM ODM
WORLDIA FMP100SB32-BE12-16 Face Milling Cutters OEM ODM WORLDIA FMP100SB32-BE12-16 Face Milling Cutters OEM ODM WORLDIA FMP100SB32-BE12-16 Face Milling Cutters OEM ODM WORLDIA FMP100SB32-BE12-16 Face Milling Cutters OEM ODM

Large Image :  WORLDIA FMP100SB32-BE12-16 Face Milling Cutters OEM ODM

Product Details:
Place of Origin: Beijing, China
Brand Name: Worldia
Model Number: FMP100SB32-BE12-16
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: $500-1000/Piece
Delivery Time: In stock，immediate despatch
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000PCS（monthly）
Contact Now

WORLDIA FMP100SB32-BE12-16 Face Milling Cutters OEM ODM

Description
Product Brand: WORLDIA Name: PCD Indexable Face Milling Cutter
Model Number: FMP100SB32-BE12-16 Application: CNC Milling Machining
Material: Steel-aluminium Weight: 1.45KG
High Light:

FMP100SB32-BE12-16 Face Milling Cutters

,

WORLDIA Face Milling Cutters

,

OEM ODM pcd face mill

Face Milling Cutter Indexable PCD milling cutter for CNC Milling Machining





DESCRIPTION:

WORLDIA FMP-BE milling cutters with indexable inserts for milling of nonferrous material.

Used for roughing and finishing operation to ensure the economical solution over the other

WORLDIAFMP-BE face milling cutters are the first choice for end-user to maintain quality

standards with high chip removal.



FEATURES:

  • "Aluminum Alloy-Steel" double metal design the aluminum center reduces the weightwhile the hardened steel outer ring increases the rigidity speed and feeds.
  • The double metal design makes the tooling lifetime several times longer than other aluminum face milling cutter.
  • High-precision pocket seat keeps 0.02mm axial runout without insertadjustment.
  • It can be easily adjusted to 2um axial run out within 0.1mm range.
  • Inserts are designed by variety of Kr could meet different application of end milling and shoulder milling.
  • The positioning surface and Flank face separated design, keep the positioning surface effectiveness when we do relap or retip.
  • Two cutting edges design and retip service which could help our customers reduce their cost..
  • Rough and finish in one tool.



SPECIFICATIONS:

    D D1 D2 D3 L Ap1 Max Teeth Weight
Specification System Code mm mm mm mm mm mm Z Kg max PRM Material
FMP040SA16-BE12-06 040401060013 40 16 36 - 40 11 6 0.36 40000 Steel
FMP050SA22-BE12-08 040401060005 50 22 45 - 40 11 8 0.55 35100 Steel
FMP063SA22-BE12-10 040401060006 63 22 45 - 40 11 10 0.75 30200 Steel
FMP080SA27-BE12-12 040401060007 80 27 50 - 50 11 12 0.96 27500 Steel-aluminium
FMP100SB32-BE12-16 040401060008 100 32 70 - 50 11 16 1.45 23800 Steel-aluminium
FMP125SB40-BE12-20 040401060009 125 40 90 - 63 11 20 2.4 19100 Steel-aluminium
FMP160SC40-BE12-24 040401060010 160 40 115 66.7 63 11 24 3 14900 Steel-aluminium
FMP200SC60-BE12-30 040401060011 200 60 150 101.6 63 11 30 4.25 11900 Steel-aluminium
FMP250SC60-BE12-36 040401060012 250 60 200 101.6 63 11 36 6.5 9550 Steel-aluminium



WORLDIA FMP100SB32-BE12-16 Face Milling Cutters OEM ODM 0





PROCESSING CASES:

WORLDIA FMP100SB32-BE12-16 Face Milling Cutters OEM ODM 1



DETAIL:

WORLDIA FMP100SB32-BE12-16 Face Milling Cutters OEM ODM 2

Service:



New Products Delivery

According to requirements, we can adjust the inserts and set up the milling cutter completely before delivery.


WORLDIA FMP100SB32-BE12-16 Face Milling Cutters OEM ODM 3About us:
