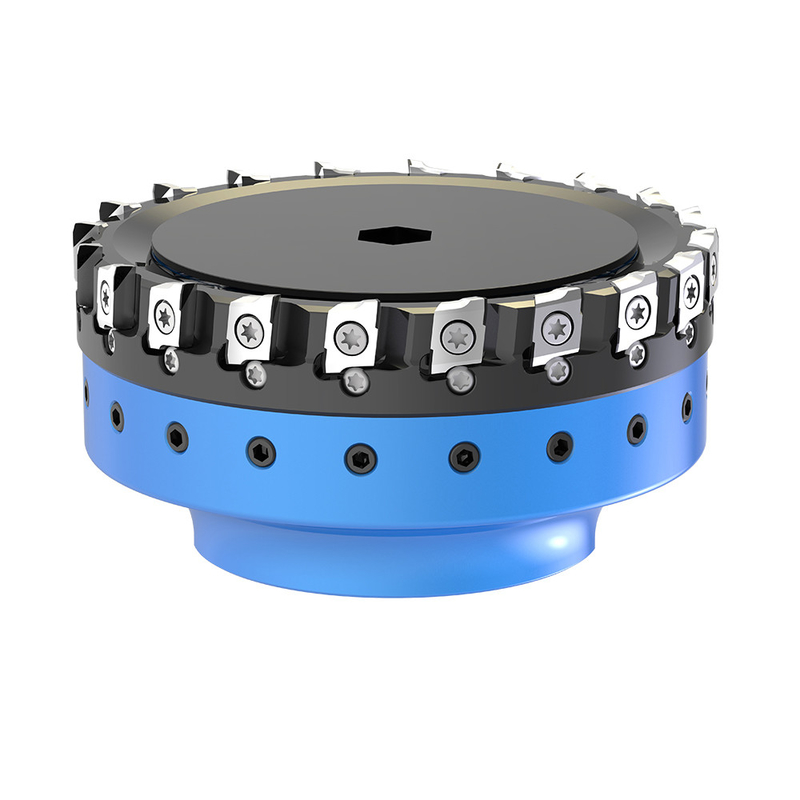

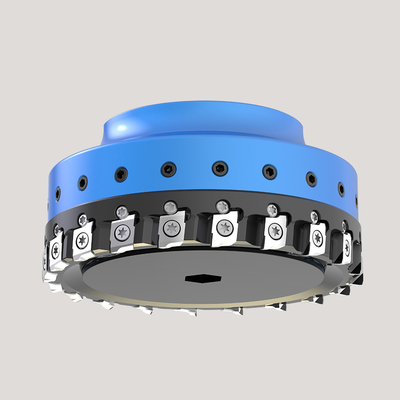

Steel Aluminium PCD Indexable Face Milling Cutter For Non Ferrous Metal

Steel Aluminium PCD Indexable Face Milling Cutter For Non Ferrous Metal
Steel Aluminium PCD Indexable Face Milling Cutter For Non Ferrous Metal
Steel Aluminium PCD Indexable Face Milling Cutter For Non Ferrous Metal Steel Aluminium PCD Indexable Face Milling Cutter For Non Ferrous Metal Steel Aluminium PCD Indexable Face Milling Cutter For Non Ferrous Metal

Large Image :  Steel Aluminium PCD Indexable Face Milling Cutter For Non Ferrous Metal

Product Details:
Place of Origin: Beijing, China
Brand Name: Worldia
Model Number: FMP125SB40-BE12-20
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: $500-1000/Piece
Delivery Time: In stock，immediate despatch
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000PCS（monthly）
Contact Now

Steel Aluminium PCD Indexable Face Milling Cutter For Non Ferrous Metal

Description
Model Number: FMP125SB40-BE12-20 Product Brand: WORLDIA
Name: PCD Indexable Face Milling Cutter Usage: Non-ferrous Metal
Application: CNC Milling Machining Coating: Uncoated
Material: Steel-aluminium
High Light:

FMP125SB40-BE12-20 Face Milling Cutter

,

PCD Indexable Face Milling Cutter

,

Steel Aluminium indexable face mill

Face Milling Cutter Indexable PCD milling cutter for CNC Milling Machining



DESCRIPTION:



WORLDIA FMP-BE milling cutters with indexable inserts for milling of nonferrous material.

Used for roughing and finishing operation to ensure the economical solution over the other

WORLDIAFMP-BE face milling cutters are the first choice for end-user to maintain quality standards with

high chip removal.



FEATURES:

  • "Aluminum Alloy-Steel" double metal design the aluminum center reduces the weightwhile the hardened steel outer ring increases the rigidity speed and feeds.
  • The double metal design makes the tooling lifetime several times longer than other aluminum face milling cutter.
  • High-precision pocket seat keeps 0.02mm axial runout without insertadjustment.
  • It can be easily adjusted to 2um axial run out within 0.1mm range.
  • Inserts are designed by variety of Kr could meet different application of end milling and shoulder milling.
  • The positioning surface and Flank face separated design, keep the positioning surface effectiveness when we do relap or retip.
  • Two cutting edges design and retip service which could help our customers reduce their cost..
  • Rough and finish in one tool.



SPECIFICATIONS:

WORLDIA PCD Indexable face milling on end milling and shoulder milling of non-ferrous metal.

    D D1 D2 D3 L Ap1 Max Teeth Weight
Specification System Code mm mm mm mm mm mm Z Kg max PRM Material
FMP040SA16-BE12-06 040401060013 40 16 36 - 40 11 6 0.36 40000 Steel
FMP050SA22-BE12-08 040401060005 50 22 45 - 40 11 8 0.55 35100 Steel
FMP063SA22-BE12-10 040401060006 63 22 45 - 40 11 10 0.75 30200 Steel
FMP080SA27-BE12-12 040401060007 80 27 50 - 50 11 12 0.96 27500 Steel-aluminium
FMP100SB32-BE12-16 040401060008 100 32 70 - 50 11 16 1.45 23800 Steel-aluminium
FMP125SB40-BE12-20 040401060009 125 40 90 - 63 11 20 2.4 19100 Steel-aluminium
FMP160SC40-BE12-24 040401060010 160 40 115 66.7 63 11 24 3 14900 Steel-aluminium
FMP200SC60-BE12-30 040401060011 200 60 150 101.6 63 11 30 4.25 11900 Steel-aluminium
FMP250SC60-BE12-36 040401060012 250 60 200 101.6 63 11 36 6.5 9550 Steel-aluminium



Steel Aluminium PCD Indexable Face Milling Cutter For Non Ferrous Metal 0





PROCESSING CASES:

Steel Aluminium PCD Indexable Face Milling Cutter For Non Ferrous Metal 1



DETAIL:

Steel Aluminium PCD Indexable Face Milling Cutter For Non Ferrous Metal 2

Service:

Supply regrinding service.
Supply retip service which can
keep the same size as the new tools.

About us:

Steel Aluminium PCD Indexable Face Milling Cutter For Non Ferrous Metal 3

Tag:

shoulder end mill For Aluminum,

Straight Shank Indexable milling cutter,

ODM PCD Milling Insert
