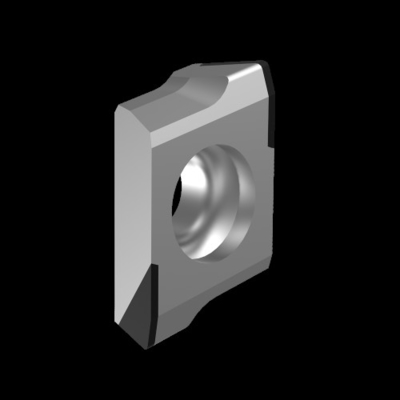

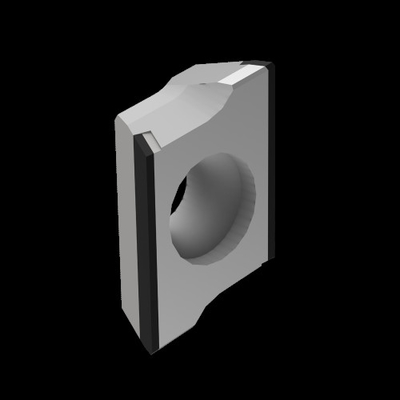

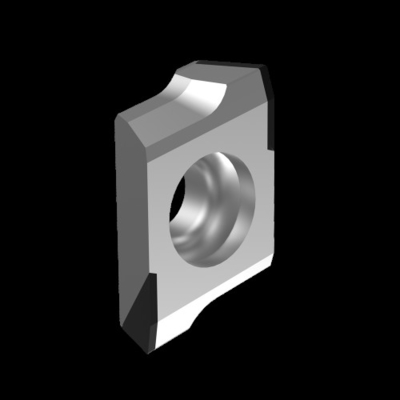

Standard Diamond PCD Milling Insert Shoulder End Mill For Aluminum

Standard Diamond PCD Milling Insert Shoulder End Mill For Aluminum
Standard Diamond PCD Milling Insert Shoulder End Mill For Aluminum
Standard Diamond PCD Milling Insert Shoulder End Mill For Aluminum Standard Diamond PCD Milling Insert Shoulder End Mill For Aluminum Standard Diamond PCD Milling Insert Shoulder End Mill For Aluminum Standard Diamond PCD Milling Insert Shoulder End Mill For Aluminum Standard Diamond PCD Milling Insert Shoulder End Mill For Aluminum

Large Image :  Standard Diamond PCD Milling Insert Shoulder End Mill For Aluminum

Product Details:
Place of Origin: Beijing, China
Brand Name: Worldia
Model Number: Standard/Wiper/Corner edge/Popular wiper/Straight edge
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: $500-1000/Piece
Delivery Time: In stock，immediate despatch
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 20，000PCS（monthly）
Contact Now

Standard Diamond PCD Milling Insert Shoulder End Mill For Aluminum

Description
Product Brand: WORLDIA Name: Diamond (PCD) Milling Insert
Type: Standard/Wiper/Corner Edge/Popular Wiper/Straight Edge Usage: Metal Working Tool
Suitable For: Aluminum Coating: No
Processing Type: Finishing/Roughing Maching Application: End Millling And Shoulder Milling
High Light:

Standard Diamond PCD Milling Insert

,

ODM PCD Milling Insert

,

shoulder end mill For Aluminum

Standard Diamond Milling Insert PCD milling cutters for end and shoulder milling



DESCRIPTION:

  • Introduction
 WORLDIA PCD Indexable face milling on end milling and shoulder milling of non-ferrous metal.Compare with the same pricing level products,this line of products has super higher flexibility ,both roughing and finishing processing on one tool.Maximum reduce time for changing tools.Whether high chip removal,consistency,or flatness,WORLDIA PCD indexable face milling always meets customers' requirements.
  • Application
 WORLDIA PCD Milling Insert are designed by variety of Kr,could meet different application of end millling and shoulder milling.Two cutting edges design and retip service which could help customers reduce their cost.There are five types of cutting edge which can meet various application with different combinations.Realize both roughing and finishing in one tool.



FEATURES:

  • "Aluminum Alloy-Steel" double metal design the aluminum center reduces the weightwhile the hardened steel outer ring increases the rigidity speed and feeds.
  • The double metal design makes the tooling lifetime several times longer than other aluminum face milling cutter.
  • High-precision pocket seat keeps 0.02mm axial runout without insertadjustment.
  • It can be easily adjusted to 2um axial run out within 0.1mm range.
  • Inserts are designed by variety of Kr could meet different application of end milling and shoulder milling.
  • The positioning surface and Flank face separated design, keep the positioning surface effectiveness when we do relap or retip.
  • Two cutting edges design and retip service which could help our customers reduce their cost..
  • Rough and finish in one tool.



SPECIFICATIONS:
Standard Diamond PCD Milling Insert Shoulder End Mill For Aluminum 0

    Material Teeth L d S BS L1 Re
Type Specification PD01F PD10F PD32E CVDD Z mm mm mm mm mm mm
Standard BEHW1204EZTR1 ○ ● ○ ○ 1 12.23 9.525 4.76 1 8 0.4
BEHW1204EZTR2 ○ ● ○ ○ 2 12.23 9.525 4.76 1 8 0.4
Wiper BEHW1204EZTR1-WG ○ ● ○ ○ 1 12.23 9.525 4.76 4 8 -
BEHW1204EZTR2-WG ○ ● ○ ○ 2 12.23 9.525 4.76 4 8 -
Sharp corner BEHW1204EZTR1-PT ○ ● ○ ○ 1 12.23 9.525 4.76 - 8 0.4
BEHW1204EZTR2-PT ○ ● ○ ○ 2 12.23 9.525 4.76 - 8 0.4
Right-angle BEHW1204PZTR1 ○ ● ○ ○ 1 12.23 9.525 4.76 1 11 0.4



PROCESSING CASES:

Standard Diamond PCD Milling Insert Shoulder End Mill For Aluminum 1



DETAIL:

Standard Diamond PCD Milling Insert Shoulder End Mill For Aluminum 2

SERVICES:



Under current cutting condition during machining WORLDIA can provide the most reasonablescientific

process and design to customers depends on our fully experience to ensure the high efficiency.



  • New Products Delivery
 According to requirements,we can adjust the inserts and setup milling cutter completely before delivery.
  • PCD Inserts Service
 Supply regrinding service.
Supply retip service which can
keep the same size as the new tools.


ABOUT US:



Standard Diamond PCD Milling Insert Shoulder End Mill For Aluminum 3
