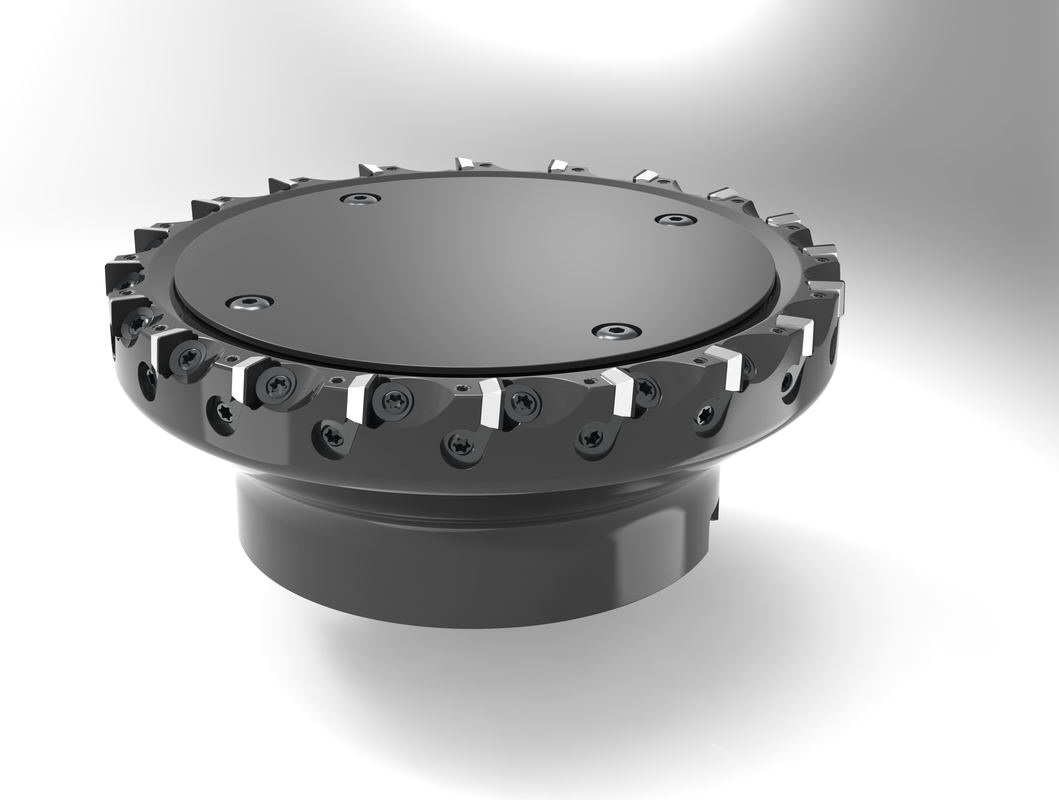

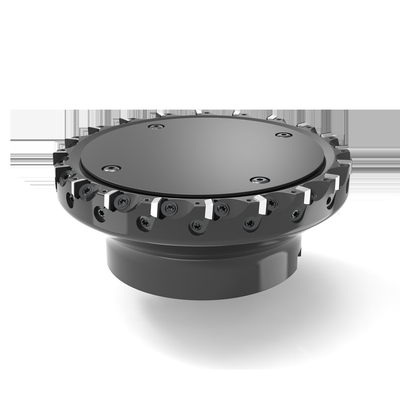

PCBN Face Milling Cutters Cast Iron End Milling Cutter For Finishing

PCBN Face Milling Cutters Cast Iron End Milling Cutter For Finishing
PCBN Face Milling Cutters Cast Iron End Milling Cutter For Finishing
PCBN Face Milling Cutters Cast Iron End Milling Cutter For Finishing PCBN Face Milling Cutters Cast Iron End Milling Cutter For Finishing PCBN Face Milling Cutters Cast Iron End Milling Cutter For Finishing PCBN Face Milling Cutters Cast Iron End Milling Cutter For Finishing PCBN Face Milling Cutters Cast Iron End Milling Cutter For Finishing

Large Image :  PCBN Face Milling Cutters Cast Iron End Milling Cutter For Finishing

Product Details:
Place of Origin: Beijing, China
Brand Name: Worldia
Model Number: Standard
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: $500-1000/Piece
Delivery Time: In stock，immediate despatch
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000PCS（monthly）
Contact Now

PCBN Face Milling Cutters Cast Iron End Milling Cutter For Finishing

Description
Product Brand: WORLDIA Name: PCBN Milling Cutter
Model Number: Standard Material: Steel
CBN Content: 90~95% Hardness: 3700-3900Hv
Usage: Metal Working Tool Processing Type: Finishing/Roughing Maching
Characteristics: Excellent Abrasive Resistance, Combination Of Impact Resistance And Abrasive Resistance Application: CNC Milling Machining
High Light:

PCBN Face Milling Cutters

,

Face Milling Cutters For Finishing

,

Cast Iron End Milling Cutter

Face Milling Cutter Indexable PCD milling cutter for CNC Milling Machining



DESCRIPTION:

  • Introduction
 Worldia PCBN Face Milling Cutter with indexable inserts used for finishing on end milling of cast iron,it can satisfy the demand for surface roughness and geometric toklerances.
  • Application
  • Hardened steel
  • Cast irons (Recommend)
  • Sintered irons
  • Power Metallurgy



FEATURES:

  • Cutter body made by forging Alloy-Steelall setting parts are completed by hard milling with five axle maching one time
  • High-precision pocket seats keep 0.01mm positioning precision without insert adjustment
  • The adjustment structure is simple and easy to use.The inserts can be easily adjusted to 5 micron axial run out within the 0.3mm range
  • Positive rake anglelow resistance cutting,widely application scope
  • Easily install the inserts,including different kinds of wiper inserts
  • The positioning surface and flank face separated design, keep the positioning surface stability and effectiveness.
  • Mini type, full face with 4 tips designmore economical application with regrinding service
  • Multi-kinds of wiper inserts designsuitable for different applications


SPECIFICATIONS:


PCBN Face Milling Cutters Cast Iron End Milling Cutter For Finishing 0

Specification System Code D D1 D2 D3 L L1 Teeth Weight max RPM
mm mm mm mm mm mm Z Kg
FMP050SA22-SD07-05 40401060023 50 22 45 - 40 7.94 5 0.40 9500
FMP063SA22-SD07-08 40401060022 63 22 45 - 40 7.94 8 0.60 7500
FMP080SA27-SD07-10 40401060021 80 27 60 - 50 7.94 10 1.20 6000
FMP100SB32-SD07-12 40401060020 100 32 80 - 50 7.94 12 1.90 4700
FMP125SB40-SD07-16 40401060019 125 40 90 - 63 7.94 16 3.20 3800
FMP160SC40-SD07-20 40401060018 160 40 110 66.7 63 7.94 20 4.50 3000
FMP200SC60-SD07-24 40401060017 200 60 150 101.6 63 7.94 24 6.80 2300
FMP250SC60-SD07-32 40401060016 250 60 200 101.6 63 7.94 32 11.60 1900



PROCESSING CASES:

PCBN Face Milling Cutters Cast Iron End Milling Cutter For Finishing 1



DETAIL:

PCBN Face Milling Cutters Cast Iron End Milling Cutter For Finishing 2



SERVICES:



Under current cutting condition during machining WORLDIA can provide the most reasonablescientific

process and design to customers depends on our fully experience to ensure the high efficiency.



  • New Products Delivery
 According to requirements,we can adjust the inserts and setup milling cutter completely before delivery.
  • PCD Inserts Service
 Supply regrinding service.
Supply retip service which can
keep the same size as the new tools.


ABOUT US:



PCBN Face Milling Cutters Cast Iron End Milling Cutter For Finishing 3



Tag:

shoulder end mill For Aluminum,

Straight Shank Indexable milling cutter,

ODM PCD Milling Insert
