Product Details:
|
| Product Brand: | WORLDIA | Product Family: | ManaNova |
|---|---|---|---|
| Model Number: | TCGW | Name: | PCD Standard Insert |
| Usage: | Turning Tools | Material: | PCD+Carbide |
| PCD Grade: | MND10 | Application: | High-precision Maching Of Non-ferrous Materials |
| High Light: | MND10 PCD Blanks Cutting Insert,TCGW Carbide PCD Blanks,TCGW Standard Carbide Turning Insert |
||

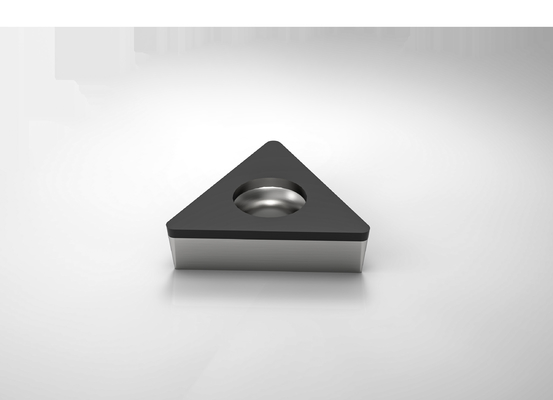

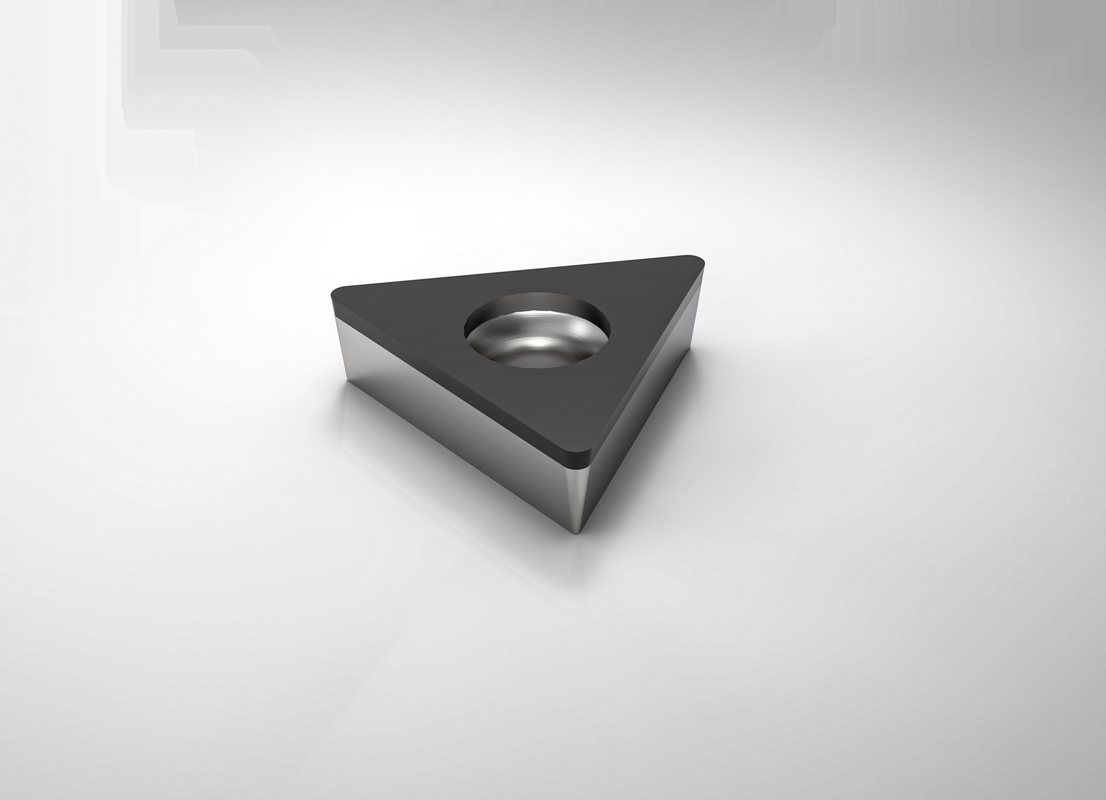

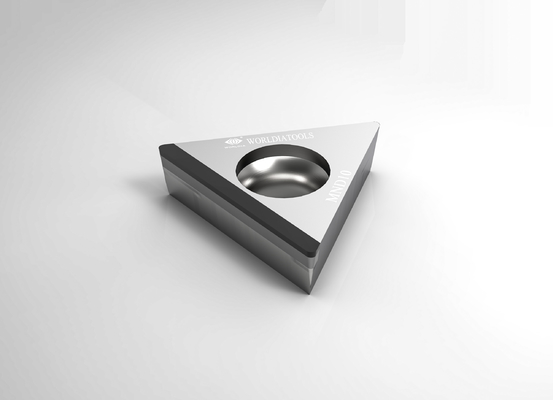

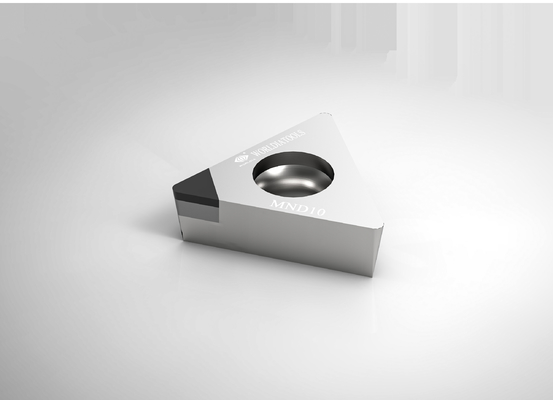

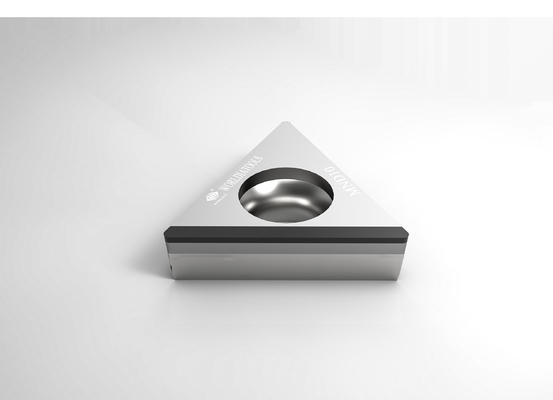

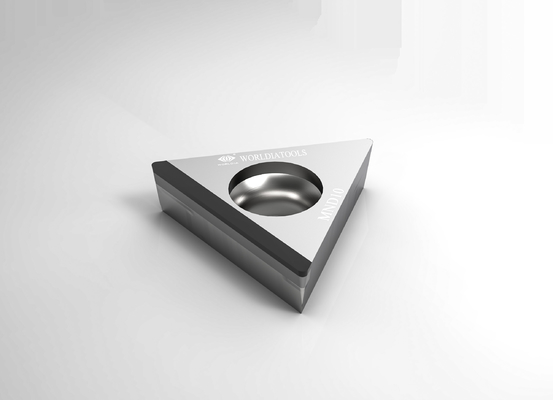

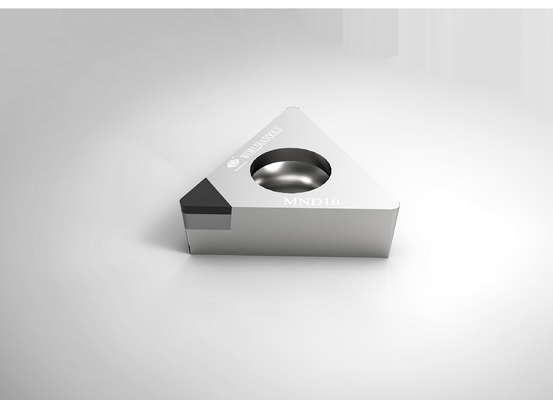

TCGW Standard Carbide Turning Insert PCD Cutting Insert for non-ferrous materials
Description:
"ManaNova" is a sub-brand of Worldia,focusing on the high-end standard series.
ManaNova is a concept which stands at the view of end-users, we strictly choose PCD and PCBN Material
to provide universal cutting effect.
The key feature of ManaNova is Easy choice and Fast delivery.
"Easy choice" : It is easy to choose according to comparison table and application.
"Fast delivery": All the types of ManaNova PCD Inserts in the catalog are available in stock.
Eliminating of force majeure, you can get within 4-5 days.
Main products:
PCBN insert: material/ 1 type, universal for hardened steel,cast iron,ductile iron and powder metallury.
Polycrystalline cubic boron nitride(CBN) is a material with excellent hot hardness that can be used at very high
cutting speeds. It also exhibits good toughness and thermal shock resistance.CBN tools are ideal for the use with
hardened steel,cast irons and sintered irons as well as powder metallurgy components.
PCD insert: Providing stable, universal, high efficient cutting effect.
PCD Turning Inserts can be used in many fields including car industry, energy equipment, and the wood and stone
industry. It can be used to cut and process different materials such as nonferrous metal, tungsten carbide, ceramic,
nonmetal and composite material.
Advantages:
· Universal
· Easy choice
· Fast delivery
Service:
· Online store service
· Local distributer support
· Technical support
Application:
| MND10 | Applied to cutting of non-ferrous materials such as aluminum alloys,etc. |
| PCD tools are limited to non-ferrous materials, such as high-silicon aluminium, metal matrix composites (MMC) and carbon fibre reinforced plastics (CFRP). PCD with flood coolant can also be used in titanium super-finishing applications. |
|
| ·Aluminum and aluminum alloys | |
| ·Copper, brass and bronze alloys | |
| ·Zinc and magnesium alloys | |
| ·Carbon Fiber | |
| ·Epoxy resins | |
| ·Plastics | |
| ·Fiberglass composites | |
| ·Graphite composites |
Specification:
| Angle | Dimensions | Grade | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
MND 10 |
| TCGW 1.81.50.5 | TCGW 090202 | 1N | 5.56 | 2.38 | 0.2 | 2.4 | 2.5 | √ |
| TCGW 1.81.51 | TCGW 090204 | 1N | 5.56 | 2.38 | 0.4 | 2.4 | 2.5 | √ |
| TCGW 220.5 | TCGW 110302 | 1N | 6.35 | 3.18 | 0.2 | 2.8 | 2.5 | √ |
| TCGW 221 | TCGW 110304 | 1N | 6.35 | 3.18 | 0.4 | 2.8 | 2.5 | √ |
| TCGW 222 | TCGW 110308 | 1N | 6.35 | 3.18 | 0.8 | 2.8 | 2.5 | √ |
| TCGW 32.51 | TCGW 16T304 | 1N | 9.525 | 3.97 | 0.4 | 4.4 | 2.5 | √ |
| TCGW 32.52 | TCGW 16T308 | 1N | 9.525 | 3.97 | 0.8 | 4.4 | 2.5 | √ |
| L-TCGW 32.50.5 | L-TCGW 16T302 | 2N | 9.525 | 3.97 | 0.2 | 4.4 | 16.2 | √ |
| L-TCGW 32.51 | L-TCGW 16T304 | 2N | 9.525 | 3.97 | 0.4 | 4.4 | 15.9 | √ |
| L-TCGW 32.52 | L-TCGW 16T308 | 2N | 9.525 | 3.97 | 0.8 | 4.4 | 15.3 | √ |
| F-VBGW 1.81.51 | F-VBGW 090204 | 3N | 5.56 | 2.38 | 0.4 | 2.4 | 9 | √ |
| Feed rate recommendation | ||||||
| Nose radius(mm) | Ra um | |||||
| 0.2 | 0.4 | 0.8 | 1.6 | 3.2 | 6.4 | |
| Feed Rate f (mm/rev)≤ | ||||||
| 0.2 | 0.028 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 |
| 0.4 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 |
| 0.8 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 |
| 1.2 | 0.069 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 |
| 1.6 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 | 0.453 |
| 2.4 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 | 0.554 |
