Product Details:
|
| Product Brand: | WORLDIA | Product Family: | ManaNova |
|---|---|---|---|
| Name: | PCBN Standard Insert | Usage: | Turning Tools |
| Material: | PCBN+Carbide | PCBN Grade: | MNH10C/20C/30C |
| Coating: | C3 | Color: | Yellow |
| Model Number: | CNGA 120404 | Application: | High-precision Maching Of Hardening Steel |

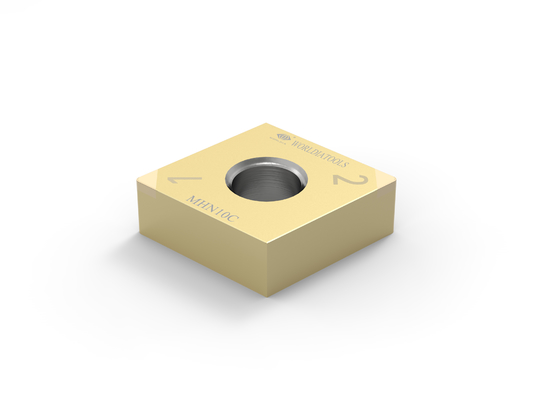

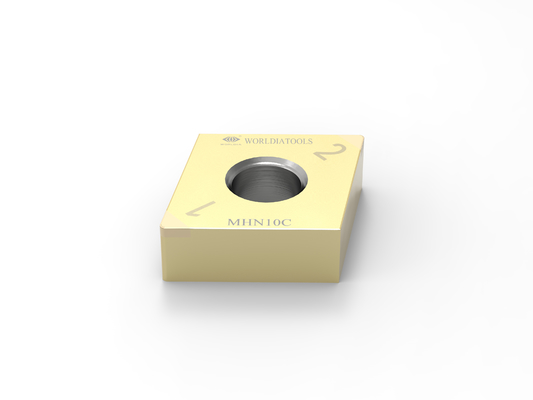

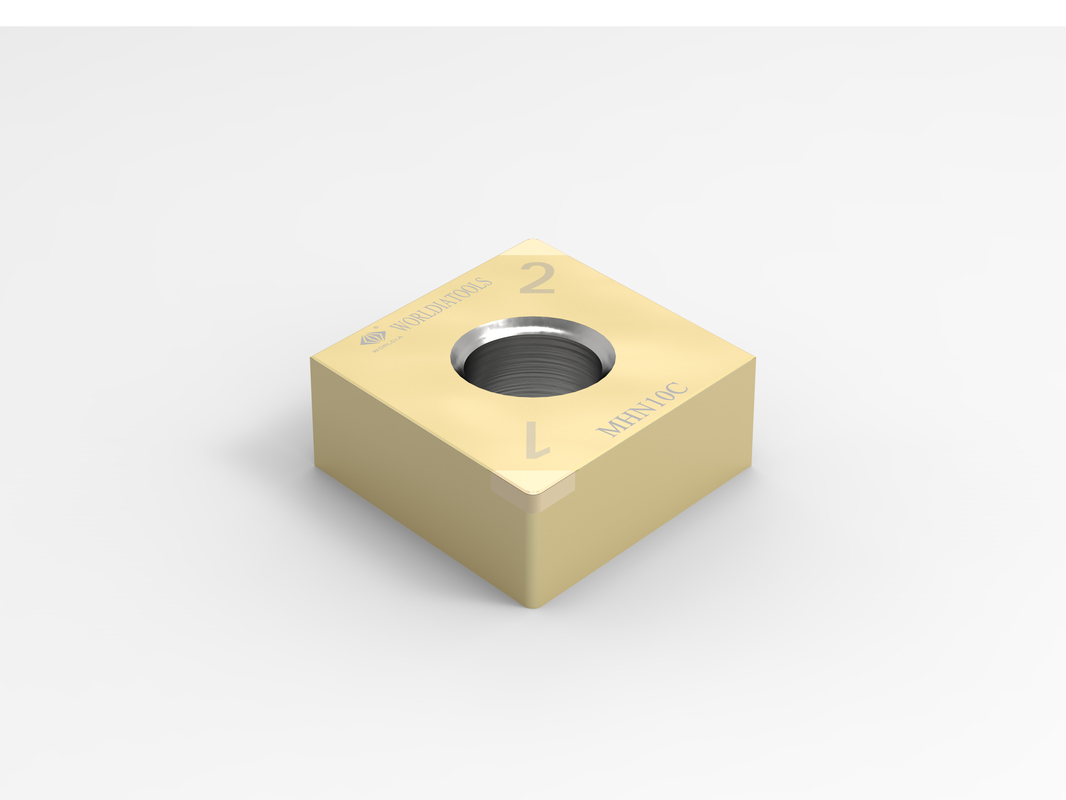

CNGA120404 Coated PCBN Carbide Turning PCBN Cutting Insert for hardened steel
PCBN Turning Insert Description:
PCBN stands for Polycrystalline Cubic Boron Nitride, which is a synthetic material that is extremely hard and wear-resistant.
PCBN turning inserts have several advantages over traditional cutting tools.
They can operate at higher cutting speeds, which results in shorter machining times and improved productivity.
They also have longer tool life, which reduces the need for tool changes and increases efficiency.
PCBN Turning Insert: MANANOVA Standard Series
ANANOVA is the sub-brand of WORLDIA, positioned as a high-end standard series,mainly promoting PCD / PCBN standard inserts.
Main products:
PCBN standard turning insert is suitable for machining hardened steel, gray cast iron, ductile iron, and powder metallurgy.
PCD standard turning insert is suitable for rough and finish machining of aluminum alloy and other non-metal materials.
PCBN Turning Insert Advantages:
· Universal
· Easy choice
· Fast delivery
PCBN Turning Insert Application:
| MHN10C | Applied to the continuous cutting of hardened steel |
| MHN20C | Applied to medium interrupted cutting of hardened steel |
| MHN30C | Applied to the heavy interrupted cutting of hardened steel |
| MKN10 | Applied to the cutting of gray cast iron |
| MKN20 | Applied to the cutting of ductile iron |
| MSN10 | Applied to the cutting of powder metallurgy |
| MSN20 | Applied to the cutting of powder metallurgy |
PCBN Turning Insert Specification:
Material Introduction - Easy choice for CBN Grade
ISO H: Hardened Steel Continuous cutting
ISO K: Cast Iron Light interrupted cutting
ISO S: Powder Metallurgy Heavy interrupted cutting
| Material | ISO H | ISO K | ISO S | ||||
| PCBN Grade | MHN10C | MHN20C | MNH30C | MKN10 | MKN20 | MSN10 | MSN20 |
| Smooth | Moderate | Toughness | Cast Iron | Ductile Iron | Powder Metallurgy | Powder Metallurgy | |
| Vc | 180(150~250) m/min |
100(50~150) m/min |
80(30~120) m/min |
600(300~800) m/min |
300(150~450) m/min |
300(200~500) m/min |
500(300~800) m/min |
| fn | 0.1(0.03~0.2) mm/r |
0.1(0.03~0.2) mm/r |
0.1(0.03~0.2) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
| % | 45~55 | 60~70 | 85~95 | 85~95 | 60~70 | 60~70 | 85~95 |
| Grain size | 1~2 um | 1~2 um | 2~3um | 2~3 um | 1~2 um | 1~2 um | 2~3 um |
| Bond | TiC | TiN | Co/W | Co/W | TiCN | TiCN | Co/W |
| CNGA | Shape | Dimensions | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
|
| All Stocked |
CNGA 431 | CNGA 120404 | 2N | 12.7 | 4.76 | 0.4 | 5.16 | 2.2 |
| CNGA 432 | CNGA 120408 | 2N | 12.7 | 4.76 | 0.8 | 5.16 | 2.2 | |
| CNGA 432 | CNGA 120408 | 4N | 12.7 | 4.76 | 0.8 | 5.16 | 2.2 | |
