Product Details:
|
| Product Brand: | WORLDIA | Product Family: | ManaNova |
|---|---|---|---|
| Usage: | Turning Tools | Material: | PCBN+Carbide |
| Tips: | 2 | Coating: | C3 |
| PCBN Grade: | MNH10C/20C/30C | Model Number: | DCGW 11T304 |
| Application: | High-precision Maching Of Hardening Steel | ||
| High Light: | DCGW11T304 PCBN Cutting Inserts,RoHS PCBN Cutting Inserts,Polycrystalline Cubic Boron Nitride Inserts |
||

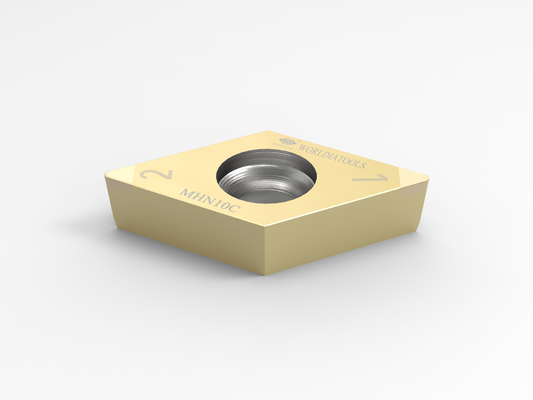

DCGW11T304 Coated CBN Carbide Turning Insert CBN Cutting Insert for hardened steel
Material:
Polycrystalline cubic boron nitride(CBN):
1. with an excellent hot hardness that can be used at very high cutting speeds
2. good toughness and thermal shock resistance
CBN tools are ideal for the use with hardened steel, cast irons, and sintered irons as well as
powder metallurgy components.
Especially coated PCBN insert is suitable for continuous to the heavy interrupted cutting of hardened steel
and has excellent universal performance.
Description:
Easy choice and Fast delivery
MANANOVA takes “Easy choice and Fast delivery” as the feature. Two factories to the product at the same time,
so spot delivery once orders are completed. Welcome to inquiry to learn more information!
Service:
· Online store service
· Local distributor support
· Technical support
Application:
| MHN10C | Applied to the continuous cutting of hardened steel |
| MHN20C | Applied to medium interrupted cutting of hardened steel |
| MHN30C | Applied to the heavy interrupted cutting of hardened steel |
| MKN10 | Applied to the cutting of gray cast iron |
| MKN20 | Applied to the cutting of ductile iron |
| MSN10 | Applied to the cutting of powder metallurgy |
| MSN20 | Applied to the cutting of powder metallurgy |
Specification:
| Material | ISO H | ISO K | ISO S | ||||
| PCBN Grade | MHN10C | MHN20C | MNH30C | MKN10 | MKN20 | MSN10 | MSN20 |
| Smooth | Moderate | Toughness | Cast Iron | Ductile Iron | Powder Metallurgy | Powder Metallurgy | |
| Vc | 180(150~250) m/min |
100(50~150) m/min |
80(30~120) m/min |
600(300~800) m/min |
300(150~450) m/min |
300(200~500) m/min |
500(300~800) m/min |
| fn | 0.1(0.03~0.2) mm/r |
0.1(0.03~0.2) mm/r |
0.1(0.03~0.2) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
| % | 45~55 | 60~70 | 85~95 | 85~95 | 60~70 | 60~70 | 85~95 |
| Grain size | 1~2 um | 1~2 um | 2~3um | 2~3 um | 1~2 um | 1~2 um | 2~3 um |
| Bond | TiC | TiN | Co/W | Co/W | TiCN | TiCN | Co/W |
Material Introduction - Easy choice for CBN Grade
ISO H: Hardened Steel Continuous cutting
ISO K: Cast Iron Light interrupted cutting
ISO S: Powder Metallurgy Heavy interrupted cutting
| DCGW | Shape | Dimensions | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
|
| All Stocked |
DCGW 21.51 | DCGW 070204 | 2N | 6.35 | 2.38 | 0.4 | 2.8 | 2.2 |
| DCGW 21.52 | DCGW 070208 | 2N | 6.35 | 2.38 | 0.8 | 2.8 | 2.2 | |
| DCGW 32.50.5 | DCGW 11T302 | 2N | 9.525 | 3.97 | 0.2 | 4.4 | 2.2 | |
| DCGW 32.51 | DCGW 11T304 | 2N | 9.525 | 3.97 | 0.4 | 4.4 | 2.2 | |
| DCGW 32.52 | DCGW 11T308 | 2N | 9.525 | 3.97 | 0.8 | 4.4 | 2.2 | |
