Product Details:
|
| Product Brand: | WORLDIA | Product Family: | ManaNova |
|---|---|---|---|
| Model Number: | DNGA 150604 | Material: | PCBN+Carbide |
| PCBN Grade: | MNH10C/20C/30C | Application: | Machining Of Hardened Steel |
| Type: | Turning Tools | Advantages: | Easy Choice And Fast Delivery |
| Highlight: | Coated Carbide CBN Turning Insert,DNGA150604 CBN Turning Insert,CBN hardened steel cutting Insert |
||

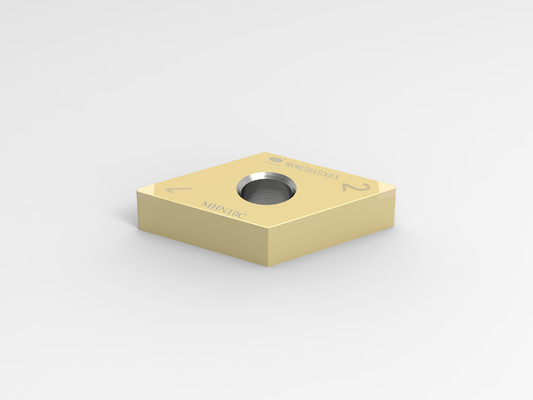

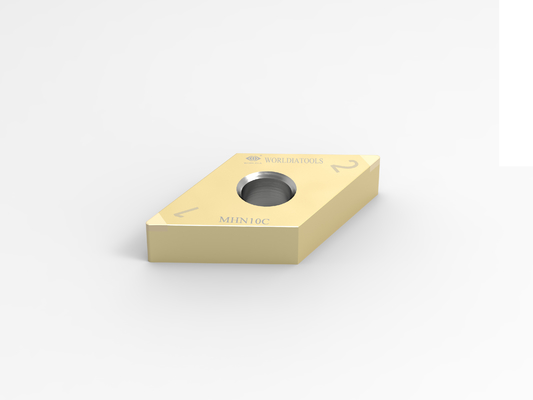

DNGA150412 Coated CBN Carbide Turning Insert PCBN Cutting Insert for hardened steel
Specification:
| Material | ISO H | ISO K | ISO S | ||||
| PCBN Grade | MHN10C | MHN20C | MNH30C | MKN10 | MKN20 | MSN10 | MSN20 |
| Smooth | Moderate | Toughness | Cast Iron | Ductile Iron | Powder Metallurgy | Powder Metallurgy | |
| Vc | 180(150~250) m/min |
100(50~150) m/min |
80(30~120) m/min |
600(300~800) m/min |
300(150~450) m/min |
300(200~500) m/min |
500(300~800) m/min |
| fn | 0.1(0.03~0.2) mm/r |
0.1(0.03~0.2) mm/r |
0.1(0.03~0.2) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
| % | 45~55 | 60~70 | 85~95 | 85~95 | 60~70 | 60~70 | 85~95 |
| Grain size | 1~2 um | 1~2 um | 2~3um | 2~3 um | 1~2 um | 1~2 um | 2~3 um |
| Bond | TiC | TiN | Co/W | Co/W | TiCN | TiCN | Co/W |
| DNGA | Shape | Dimensions | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
|
| All Stocked |
DNGA 431 | DNGA 150404 | 2N | 12.7 | 4.76 | 0.4 | 5.16 | 2.2 |
| DNGA 432 | DNGA 150408 | 2N | 12.7 | 4.76 | 0.8 | 5.16 | 2.2 | |
| DNGA 433 | DNGA 150412 | 2N | 12.7 | 4.76 | 1.2 | 5.16 | 2.2 | |
| DNGA 441 | DNGA 150604 | 2N | 12.7 | 6.35 | 0.4 | 5.16 | 2.2 | |
| DNGA 442 | DNGA 150608 | 2N | 12.7 | 6.35 | 0.8 | 5.16 | 2.2 |
|
Application:
| MHN10C | Applied to the continuous cutting of hardened steel |
| MHN20C | Applied to medium interrupted cutting of hardened steel |
| MHN30C | Applied to the heavy interrupted cutting of hardened steel |
| MKN10 | Applied to the cutting of gray cast iron |
| MKN20 | Applied to the cutting of ductile iron |
| MSN10 | Applied to the cutting of powder metallurgy |
| MSN20 | Applied to the cutting of powder metallurgy |
Worldia ManaNova series covers 7 high-quality CBN grades for the processing of hardened steel,
cast iron, and powder metallurgy, the available grades are MHN10C, MHN20C, MHN30C,
MKN10, MKN20, MSN10, and MSN20.
MANANOVA is the sub-brand of WORLDIA, positioned as a high-end standard series
MANANOVA takes “Easy choice and Fast delivery” as the feature, which intends to provide fast and efficient
service for domestic and foreign customers to meet their demand for standardized and universalized tools.
Advantages:
· Universal
· Easy choice
· Fast delivery
Main products:
PCBN insert is suitable for machining of hardened steel, gray cast iron, ductile iron, and powder.
PCD insert (MND10 material ) is suitable for rough and finish machining of aluminum alloy and other non-mental materials.
