Product Details:
|
| Product Brand: | WORLDIA | Product Family: | ManaNova |
|---|---|---|---|
| Name: | PCBN Standard Insert | Material: | PCBN+Carbide |
| PCBN Grade: | MNH10C/20C/30C | Model Number: | TCGW 090202 |
| Application: | High-precision Maching Of Hardening Steel | Tips: | 3 |
| Type: | Turning Tools | ||
| High Light: | TCGW090202 CBN Cutting Inserts,High Precision CBN Cutting Inserts,3 Tips PCBN Turning Tools |
||

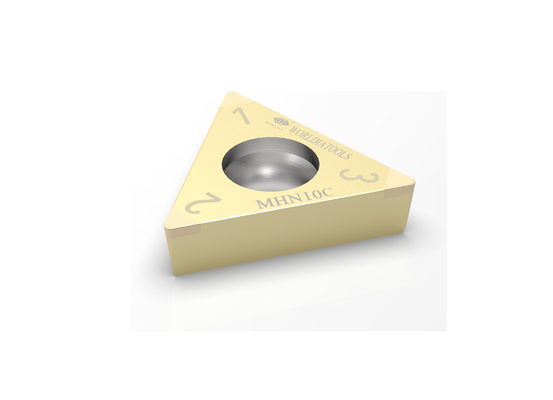

TCGW090202 Coated PCBN Carbide Turning Insert CBN Cutting Insert for hardened steel
Description:
MANANOVA is the sub-brand of WORLDIA, positioned as a high-end standard series,
mainly promoting PCD / PCBN standard inserts.
We strictly choose PCD and PCBN materials to provide the universal cutting effect and
meet customers' demand for standardized and universalized tools.
The key feature of ManaNova is Easy choice and Fast delivery.
MANANOVA takes “Easy choice and Fast delivery” as the feature, which intends to provide
fast and efficient service for domestic and foreign customers
Main products:
PCBN insert: 7 materials/ 1 type, universal for hardened steel, cast iron, ductile iron, and powder metallurgy.
Polycrystalline cubic boron nitride(CBN)
PCD insert: Providing stable, universal, high efficient cutting effect.
PCD Turning Inserts
Advantages:
· Universal
· Easy choice
· Fast delivery
Application:
| MHN10C | Applied to the continuous cutting of hardened steel |
| MHN20C | Applied to medium interrupted cutting of hardened steel |
| MHN30C | Applied to the heavy interrupted cutting of hardened steel |
| MKN10 | Applied to the cutting of gray cast iron |
| MKN20 | Applied to the cutting of ductile iron |
| MSN10 | Applied to the cutting of powder metallurgy |
| MSN20 | Applied to the cutting of powder metallurgy |
Specification:
| Material | ISO H | ISO K | ISO S | ||||
| PCBN Grade | MHN10C | MHN20C | MNH30C | MKN10 | MKN20 | MSN10 | MSN20 |
| Smooth | Moderate | Toughness | Cast Iron | Ductile Iron | Powder Metallurgy | Powder Metallurgy | |
| Vc | 180(150~250) m/min |
100(50~150) m/min |
80(30~120) m/min |
600(300~800) m/min |
300(150~450) m/min |
300(200~500) m/min |
500(300~800) m/min |
| fn | 0.1(0.03~0.2) mm/r |
0.1(0.03~0.2) mm/r |
0.1(0.03~0.2) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
| % | 45~55 | 60~70 | 85~95 | 85~95 | 60~70 | 60~70 | 85~95 |
| Grain size | 1~2 um | 1~2 um | 2~3um | 2~3 um | 1~2 um | 1~2 um | 2~3 um |
| Bond | TiC | TiN | Co/W | Co/W | TiCN | TiCN | Co/W |
Material Introduction - Easy choice for CBN Grade
ISO H: Hardened Steel Continuous cutting
ISO K: Cast Iron Light interrupted cutting
ISO S: Powder Metallurgy Heavy interrupted cutting
| TCGW | Shape | Dimensions | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
|
| All Stocked |
TCGW 1.81.51 | TCGW 090202 | 3N | 5.56 | 2.38 | 0.4 | 2.8 | 2.2 |
| TCGW 1.81.52 | TCGW 090208 | 3N | 5.56 | 2.38 | 0.8 | 2.8 | 2.2 | |
| TCGW 21.51 | TCGW 110204 | 3N | 6.35 | 2.38 | 0.4 | 2.8 | 2.2 | |
| TCGW 21.52 | TCGW 110208 | 3N | 6.35 | 2.38 | 0.8 | 2.8 | 2.2 | |
| TCGW 221 | TCGW 110304 | 3N | 6.35 | 3.18 | 0.4 | 2.8 | 2.2 | |
| TCGW 222 | TCGW 110308 | 3N | 6.35 | 3.18 | 0.8 | 2.8 | 2.2 | |
