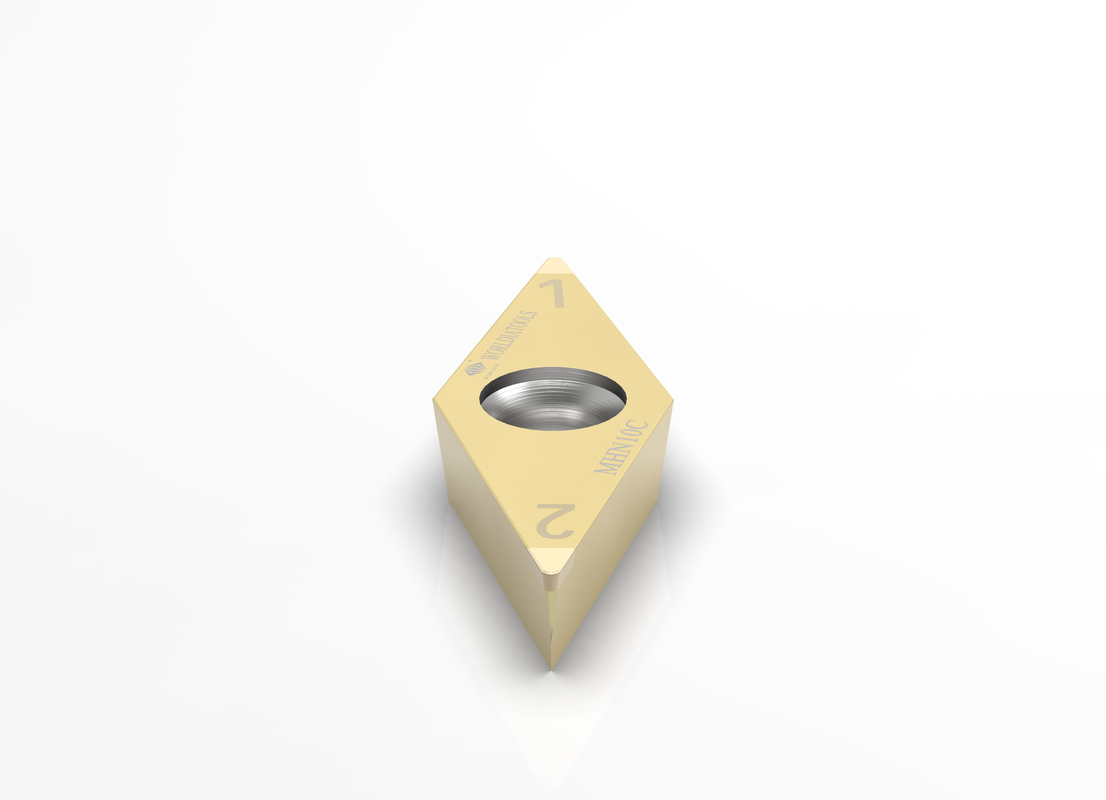

VCGW160404 Coated CBN Carbide Turning Insert CBN Cutting Insert for hardened steel
PCBN Insert Description:
PCBN (Polycrystalline Cubic Boron Nitride) insert is a cutting tool insert made from a synthetic material that is very hard and wear-resistant.
PCBN inserts are commonly used in turning, milling, and boring applications in industries such as automotive, aerospace, and oil and gas.
MANANOVA PCBN Insert: The Standard Portfolio
MANANOVA is the name for Worldia‘s stock-keeping standard product portfolio.
Main Products:
Poly-Crystalline Diamond (PCD) Standard Insert
For non-ferrous metal machining
Polycrystalline cubic boron nitride (CBN) Standard Insert
For hardened steel, cast irons, sintered irons as well as powder metallurgy components machining
PCBN Insert Applications:
PCBN Inserts are used for the processing of hardened steel,
cast iron, and powder metallurgy, the available grades are MHN10C, MHN20C, MHN30C,
MKN10, MKN20, MSN10, MSN20.
| MHN10C | Applied to the continuous cutting of hardened steel |
| MHN20C | Applied to medium interrupted cutting of hardened steel |
| MHN30C | Applied to the heavy interrupted cutting of hardened steel |
| MKN10 | Applied to the cutting of gray cast iron |
| MKN20 | Applied to the cutting of ductile iron |
| MSN10 | Applied to the cutting of powder metallurgy |
| MSN20 | Applied to the cutting of powder metallurgy |
PCBN Insert Advantages:
· Universal
· Easy choice
· Fast delivery
PCBN Insert Service:
· Online store service
· Local distributor support
· Technical support
PCBN Insert Specification:
Material Introduction - Easy choice for CBN Grade
ISO H: Hardened Steel Continuous cutting
ISO K: Cast Iron Light interrupted cutting
ISO S: Powder Metallurgy Heavy interrupted cutting
| Material | ISO H | ISO K | ISO S | ||||
| PCBN Grade | MHN10C | MHN20C | MNH30C | MKN10 | MKN20 | MSN10 | MSN20 |
| Smooth | Moderate | Toughness | Cast Iron | Ductile Iron | Powder Metallurgy | Powder Metallurgy | |
| Vc | 180(150~250) m/min |
100(50~150) m/min |
80(30~120) m/min |
600(300~800) m/min |
300(150~450) m/min |
300(200~500) m/min |
500(300~800) m/min |
| fn | 0.1(0.03~0.2) mm/r |
0.1(0.03~0.2) mm/r |
0.1(0.03~0.2) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
| % | 45~55 | 60~70 | 85~95 | 85~95 | 60~70 | 60~70 | 85~95 |
| Grain size | 1~2 um | 1~2 um | 2~3um | 2~3 um | 1~2 um | 1~2 um | 2~3 um |
| Bond | TiC | TiN | Co/W | Co/W | TiCN | TiCN | Co/W |
| VCGW | Shape | Dimensions | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
|
| All Stocked |
VCGW 221 | VCGW 110304 | 2N | 6.35 | 3.18 | 0.4 | 2.8 | 2.2 |
| VCGW 222 | VCGW 110308 | 2N | 6.35 | 3.18 | 0.8 | 2.8 | 2.2 | |
| VCGW 331 | VCGW 160404 | 2N | 9.525 | 4.76 | 0.4 | 4.4 | 2.2 | |
| VCGW 332 | VCGW 160408 | 2N | 9.525 | 4.76 | 0.8 | 4.4 | 2.2 | |
