Product Details:
|
| Product Brand: | WORLDIA | Product Family: | ManaNova |
|---|---|---|---|
| Material: | PCBN+Carbide | PCBN Grade: | MNH10C/20C/30C |
| Model Number: | VCGW 160408 | Tips: | 2 |
| Type: | Turning Tools | Application: | High-precision Maching Of Hardening Steel |
| High Light: | Carbide CBN Cutting Insert,VCGW160408 CBN Cutting Insert,ISO18001 Two Tips cbn insert |
||

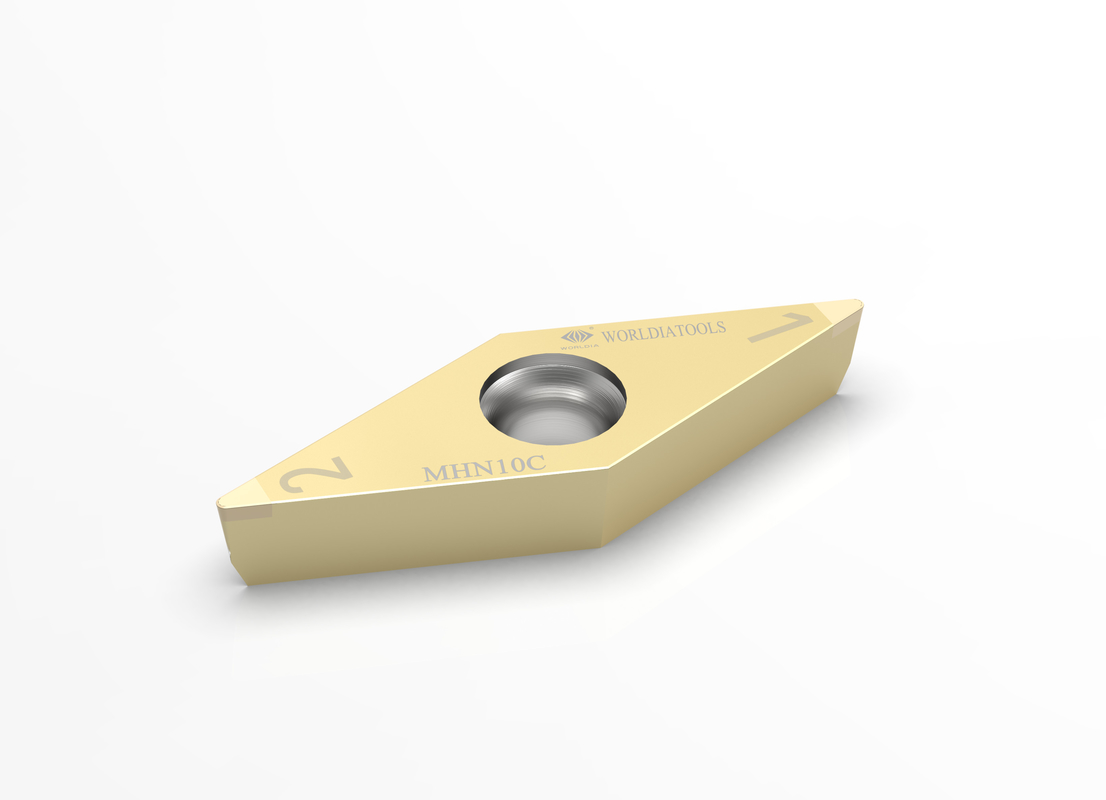

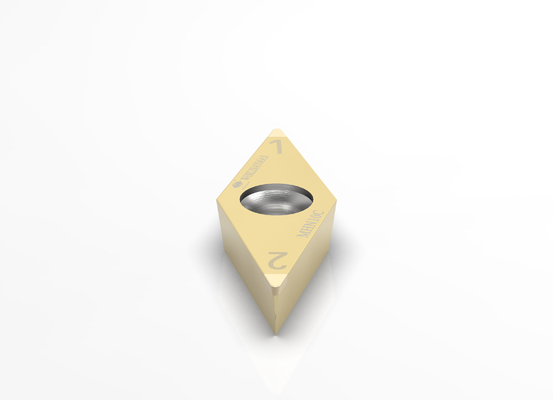

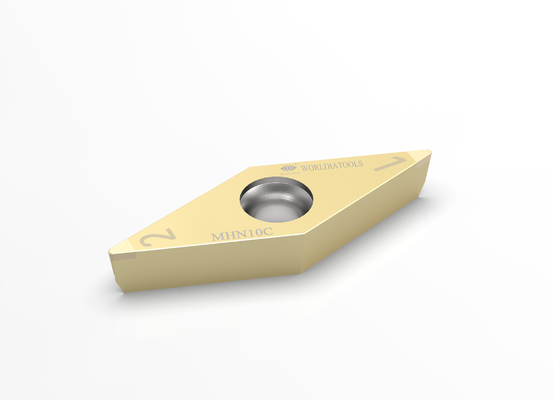

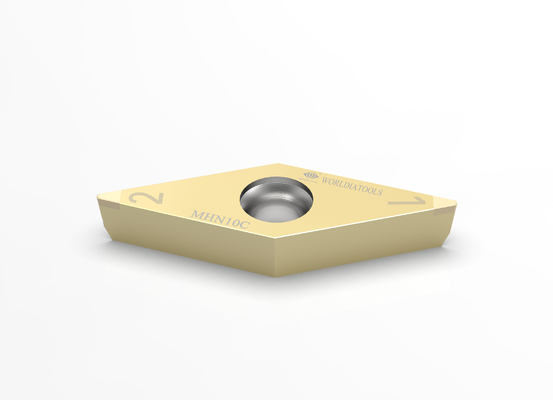

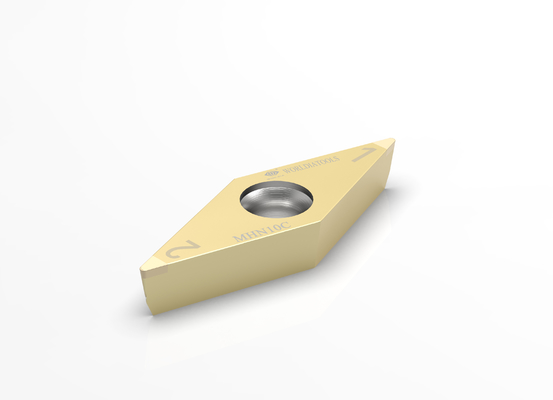

VCGW160408 Coated CBN Carbide Turning Insert CBN Cutting Insert for hardened steel
We pay special attention to the making of Standard Super Hard Cutting Tools.
And we have made a tremendous amount of technical innovations in the design and manufacturing
of PCBN/PCD/CVD inserts and related products.
Description:
MANANOVA is the sub-brand of WORLDIA, positioned as a high-end standard series,
mainly promoting PCD / PCBN standard inserts.
PCBN insert:
PCBN insert is suitable for machining hardened steel, gray cast iron, ductile iron, and powder metallurgy.
PCD insert:
PCD insert is suitable for rough and finish machining of aluminum alloy and other non-metal materials.
Advantages:
MANANOVA takes “Easy choice and Fast delivery” as the feature, which intends to provide
fast and efficient service for domestic and foreign customers to meet their demand for standardized and universalized tools.
Material:
Poly-Crystalline Diamond (PCD)
1. Reduce your tooling cost significantly
2. For non-ferrous metal machining
Polycrystalline cubic boron nitride(CBN)
1. With an excellent hot hardness
2. Good toughness and thermal shock resistance.
Application:
| MHN10C | Applied to the continuous cutting of hardened steel |
| MHN20C | Applied to medium interrupted cutting of hardened steel |
| MHN30C | Applied to the heavy interrupted cutting of hardened steel |
| MKN10 | Applied to the cutting of gray cast iron |
| MKN20 | Applied to the cutting of ductile iron |
| MSN10 | Applied to the cutting of powder metallurgy |
| MSN20 | Applied to the cutting of powder metallurgy |
Main products:
· Universal
· Easy choice
· Fast delivery
Specification:
| Material | ISO H | ISO K | ISO S | ||||
| PCBN Grade | MHN10C | MHN20C | MNH30C | MKN10 | MKN20 | MSN10 | MSN20 |
| Smooth | Moderate | Toughness | Cast Iron | Ductile Iron | Powder Metallurgy | Powder Metallurgy | |
| Vc | 180(150~250) m/min |
100(50~150) m/min |
80(30~120) m/min |
600(300~800) m/min |
300(150~450) m/min |
300(200~500) m/min |
500(300~800) m/min |
| fn | 0.1(0.03~0.2) mm/r |
0.1(0.03~0.2) mm/r |
0.1(0.03~0.2) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
| % | 45~55 | 60~70 | 85~95 | 85~95 | 60~70 | 60~70 | 85~95 |
| Grain size | 1~2 um | 1~2 um | 2~3um | 2~3 um | 1~2 um | 1~2 um | 2~3 um |
| Bond | TiC | TiN | Co/W | Co/W | TiCN | TiCN | Co/W |
| VCGW | Shape | Dimensions | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
|
| All Stocked |
VCGW 221 | VCGW 110304 | 2N | 6.35 | 3.18 | 0.4 | 2.8 | 2.2 |
| VCGW 222 | VCGW 110308 | 2N | 6.35 | 3.18 | 0.8 | 2.8 | 2.2 | |
| VCGW 331 | VCGW 160404 | 2N | 9.525 | 4.76 | 0.4 | 4.4 | 2.2 | |
| VCGW 332 | VCGW 160408 | 2N | 9.525 | 4.76 | 0.8 | 4.4 | 2.2 | |
