Product Details:
|
| Product Brand: | WORLDIA | Product Family: | ManaNova |
|---|---|---|---|
| Material: | PCBN+Carbide | PCBN Grade: | MNH10C/20C/30C |
| Model Number: | VNGA 160404 | Application: | High-precision Maching Of Hardening Steel |
| Coating: | C3 | Color: | Yellow |
| High Light: | C3 Coated PCBN Cutting Inserts,VNGA160404 PCBN Cutting Inserts,cbn cutting inserts For Hardening Steel |
||

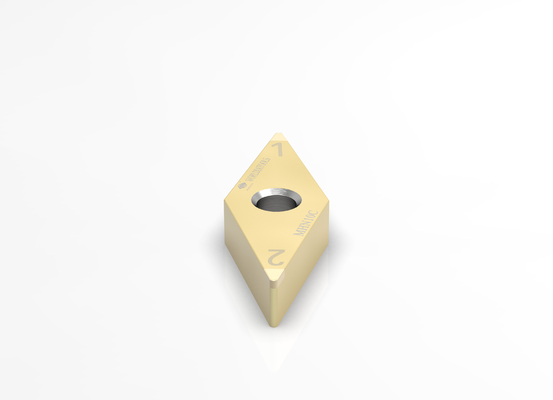

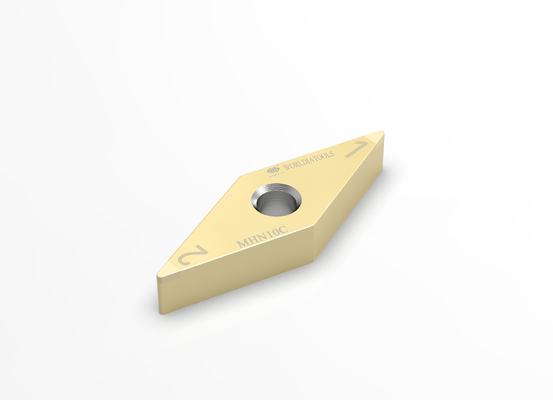

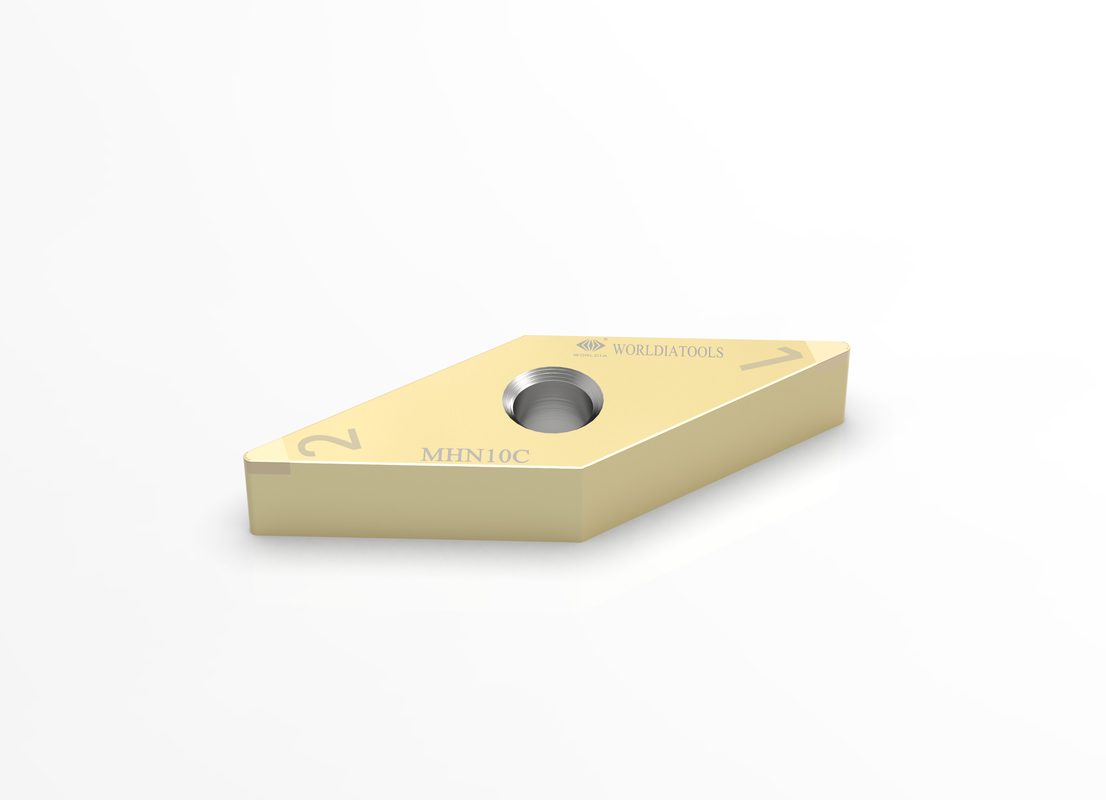

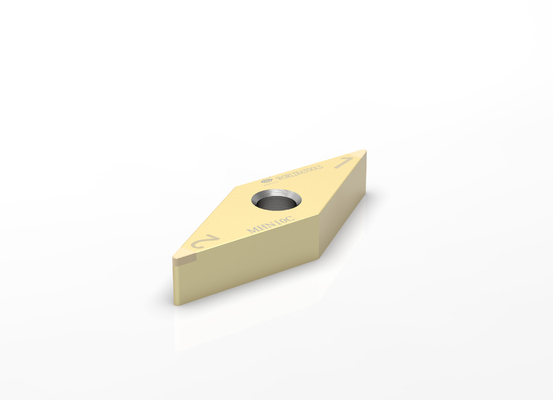

VNGA160404 Coated CBN Carbide Turning Insert CBN Cutting Insert for hardened steel
Material:
PCD tools are ideal for the use with non-ferrous metal, such as aluminum, Zinc and magnesium alloys,
GRP composites, carbon fiber reinforced plastics, “green” carbide, and ceramic as well as all abrasive materials.
CBN tools are ideal for the use with hardened steel, cast irons, and sintered irons as well as powder metallurgy
components.
Description:
"ManaNova" is a sub-brand of Worldia, focusing on the high-end standard series, mainly promoting
PCD / PCBN standard inserts.
MANANOVA takes “Easy choice and Fast delivery” as the feature, which intends to provide fast and efficient
service for domestic and foreign customers to meet their demand for standardized and universalized tools.
Main products:
PCBN insert:7material/ 1 type, universal for hardened steel, cast iron, ductile iron, and powder metallurgy.
Especially coated PCBN insert is suitable for continuous to the heavy interrupted cutting of hardened steel
and has excellent universal performance.
PCD insert: Suitable for rough and finish machining of aluminum alloy and other non-ferrous metal materials.
The PCD chip-breaker insert is mainly used to solve the problem of chip wrapping during processing, and it has
excellent performance!
Advantages:
· Universal
· Easy choice
· Fast delivery
Service:
· Online store service
· Local distributor support
· Technical support
Application:
| MHN10C | Applied to the continuous cutting of hardened steel |
| MHN20C | Applied to medium interrupted cutting of hardened steel |
| MHN30C | Applied to the heavy interrupted cutting of hardened steel |
| MKN10 | Applied to the cutting of gray cast iron |
| MKN20 | Applied to the cutting of ductile iron |
| MSN10 | Applied to the cutting of powder metallurgy |
| MSN20 | Applied to the cutting of powder metallurgy |
Specification:
Material Introduction - Easy choice for CBN Grade
ISO H: Hardened Steel Continuous cutting
ISO K: Cast Iron Light interrupted cutting
ISO S: Powder Metallurgy Heavy interrupted cutting
| Material | ISO H | ISO K | ISO S | ||||
| PCBN Grade | MHN10C | MHN20C | MNH30C | MKN10 | MKN20 | MSN10 | MSN20 |
| Smooth | Moderate | Toughness | Cast Iron | Ductile Iron | Powder Metallurgy | Powder Metallurgy | |
| Vc | 180(150~250) m/min |
100(50~150) m/min |
80(30~120) m/min |
600(300~800) m/min |
300(150~450) m/min |
300(200~500) m/min |
500(300~800) m/min |
| fn | 0.1(0.03~0.2) mm/r |
0.1(0.03~0.2) mm/r |
0.1(0.03~0.2) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
0.1(0.03~0.3) mm/r |
| % | 45~55 | 60~70 | 85~95 | 85~95 | 60~70 | 60~70 | 85~95 |
| Grain size | 1~2 um | 1~2 um | 2~3um | 2~3 um | 1~2 um | 1~2 um | 2~3 um |
| Bond | TiC | TiN | Co/W | Co/W | TiCN | TiCN | Co/W |
| VNGA | Shape | Dimensions | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
|
| All Stocked |
VNGA 330.5 | VNGA 160402 | 2N | 9.525 | 4.76 | 0.2 | 3.81 | 2.2 |
| VNGA 331 | VNGA 160404 | 2N | 9.525 | 4.76 | 0.4 | 3.81 | 2.2 | |
| VNGA 332 | VNGA 160408 | 2N | 9.525 | 4.76 | 0.8 | 3.81 | 2.2 | |
| VNGA 333 | VNGA 160412 | 2N | 9.525 | 4.76 | 1.2 | 3.81 | 2.2 | |
