Product Details:
|
| Product Brand: | WORLDIA | Product Family: | ManaNova |
|---|---|---|---|
| Model Number: | CCGW 060204 | Name: | PCD Standard Insert |
| Material: | PCD+Carbide | PCD Grade: | MND10 |
| Tips: | 1N | Application: | High-precision Maching Of Non-ferrous Materials |

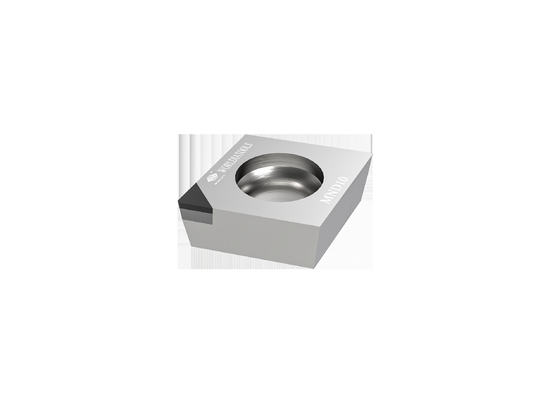

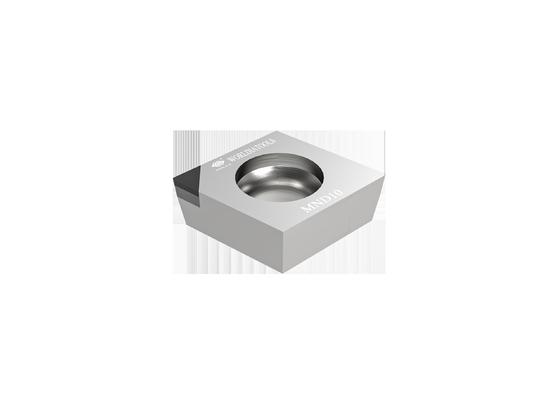

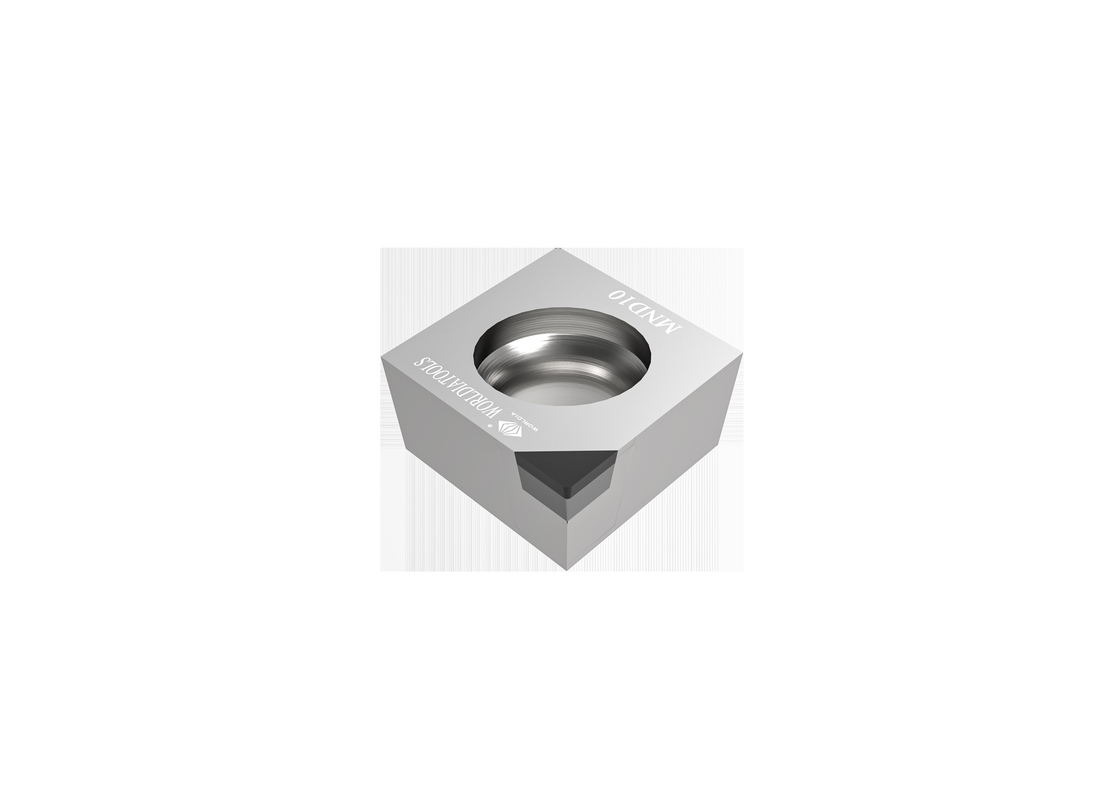

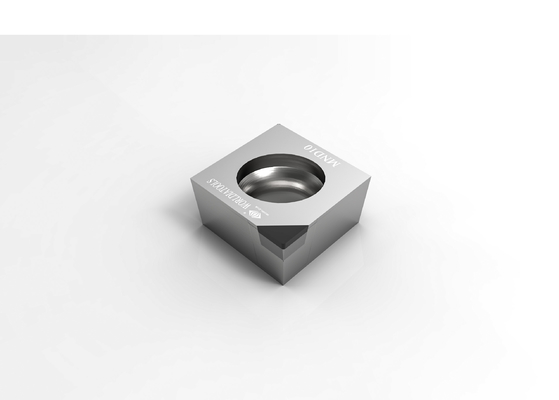

CCGW060204 Standard Carbide Turning PCD Cutting Insert for non-ferrous materials
Standard PCD Insert Description:
PCD stands for polycrystalline diamond, which is a synthetic material that is extremely hard and wear-resistant.
Standard PCD inserts are designed for use in machining applications where high efficiency and precision are required.
They are commonly used to machine non-ferrous metals, such as aluminum, copper, and brass, as well as non-metallic materials, such as
plastics, composites, and wood.
Standard PCD Insert: MANANOVA Series:
MANANOVA is the sub-brand of WORLDIA, positioned as a high-end standard series,
mainly promoting PCD / PCBN standard inserts.
Main products:
PCD standard insert is suitable for rough and finish machining of aluminum alloy and other non-ferrous metal materials.
PCBN standard insert is suitable for machining hardened steel, gray cast iron, ductile iron, and powder metallurgy.
Providing stable, universal, high efficient cutting effect.
Standard PCD Insert Advantages:
· Universal
· Easy choice
· Fast delivery
Standard PCD Insert Service:
· Online store service
· Local distributor support
· Technical support
Standard PCD Insert Application:
PCD insert (MND10 material ) is suitable for rough and finish machining of aluminum alloy and other
non-metal materials.
| MND10 | Applied to the cutting of non-ferrous materials such as aluminum alloys, etc. |
Standard PCD Insert Specification:
| CCGW | Dimensions | Grade | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
MND 10 |
| CCGW 21.50.5 | CCGW 060202 | 1N | 6.35 | 2.38 | 0.2 | 2.8 | 2.5 | √ |
| CCGW 21.51 | CCGW 060204 | 1N | 6.35 | 2.38 | 0.4 | 2.8 | 2.5 | √ |
| CCGW 32.50.5 | CCGW 09T302 | 1N | 9.525 | 3.97 | 0.2 | 4.4 | 2.5 | √ |
| CCGW 32.51 | CCGW 09T304 | 1N | 9.525 | 3.97 | 0.4 | 4.4 | 2.5 | √ |
| CCGW 32.52 | CCGW 09T308 | 1N | 9.525 | 3.97 | 0.8 | 4.4 | 2.5 | √ |
| C-CCGW 21.50.5 | C-CCGW 060202 | 1N | 6.35 | 2.38 | 0.2 | 2.8 | 2.5 | √ |
| C-CCGW 32.51 | C-CCGW 09T304 | 1N | 9.525 | 3.97 | 0.4 | 4.4 | 2.5 | √ |
| F-CCGW 21.51 | F-CCGW 060204 | 2N | 6.35 | 2.38 | 0.4 | 2.8 | 6.4 | √ |
Standard PCD Insert Recommendation:
| Feed rate recommendation | ||||||
| Nose radius(mm) | Ra um | |||||
| 0.2 | 0.4 | 0.8 | 1.6 | 3.2 | 6.4 | |
| Feed Rate f (mm/rev)≤ | ||||||
| 0.2 | 0.028 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 |
| 0.4 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 |
| 0.8 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 |
| 1.2 | 0.069 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 |
| 1.6 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 | 0.453 |
| 2.4 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 | 0.554 |
