Product Details:
|
| Product Brand: | WORLDIA | Product Family: | ManaNova |
|---|---|---|---|
| Model Number: | CCGW 09T304 | Item Name: | CNC Turning Inserts |
| Type: | PCD Insert | Material: | PCD+Carbide |
| Coating: | Uncoated | PCD Grade: | MND10 |
| Application: | Machining Of Non-ferrous Materials | ||
| High Light: | CCGW09T304 Carbide Insert Tool,CCGW Diamond Carbide Insert Tool,Uncoated PCD CNC Turning Inserts |
||

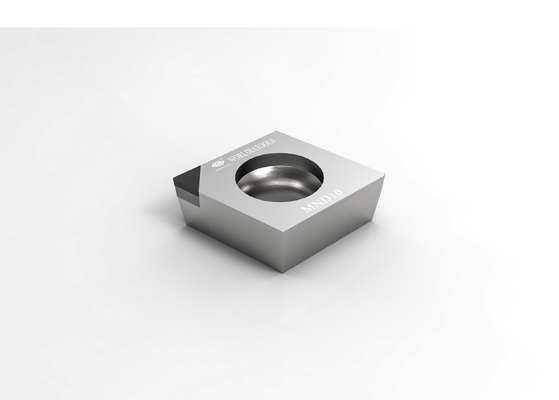

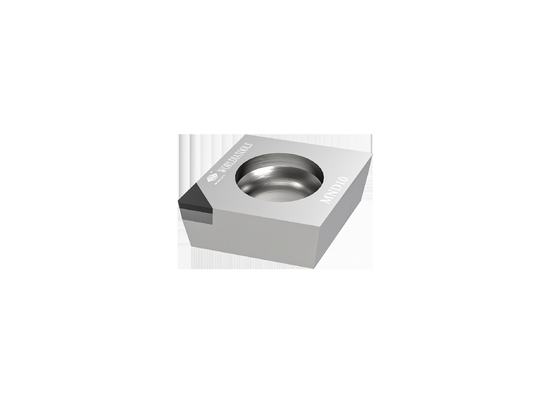

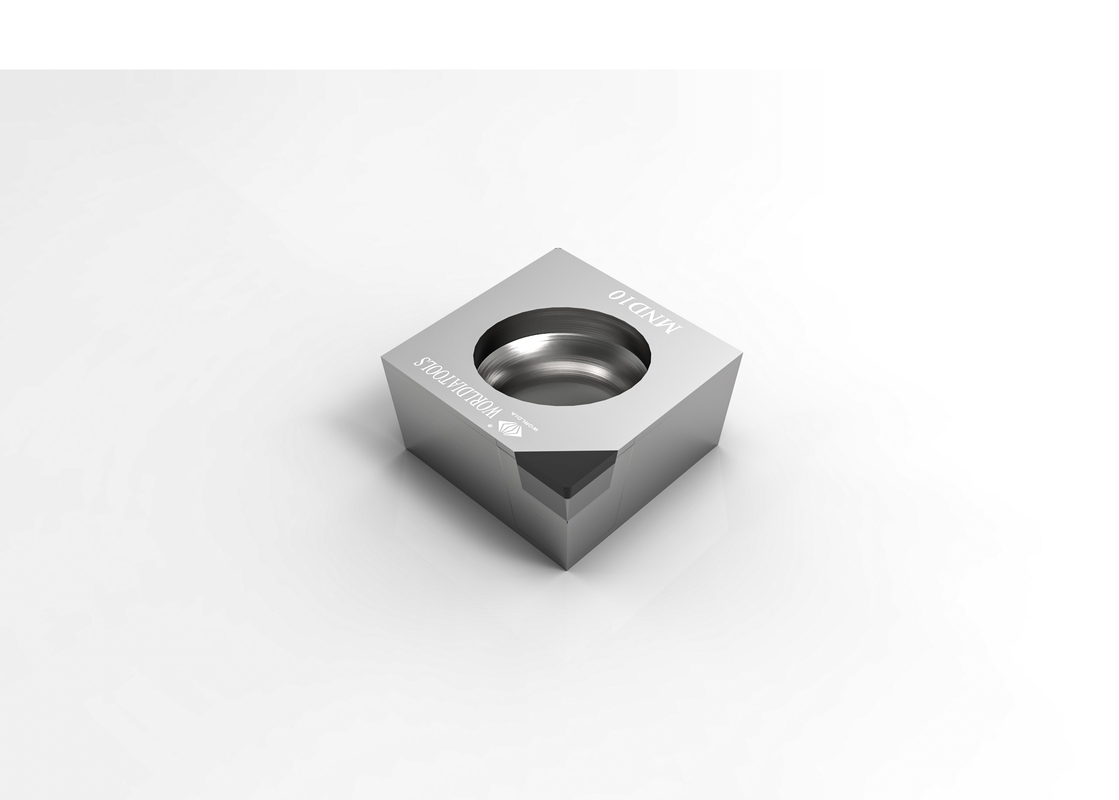

CCGW09T304 Standard Carbide Turning PCD Cutting Insert for non-ferrous materials
Material:
Poly-Crystalline Diamond (PCD)
1. Reduce your tooling cost significantly
2. For non-ferrous metal machining
We manufacture PCD Tools with advanced processing machines and control the product quality
from the very beginning which keeps PCD tools with high accuracy and good quality with consistency.
Description:
MANANOVA is the sub-brand of WORLDIA, positioned as a high-end standard series,
mainly promoting PCD / PCBN standard inserts.
MANANOVA takes “Easy choice and Fast delivery” as the feature.
Two factories to product at the same time, so spot delivery once orders are completed.
Welcome to inquiry to learn more information!
Main products:
PCD insert is suitable for rough and finish machining of aluminum alloy and other non-ferrous metal materials.
PCBN insert: 7material/ 1 type, universal for hardened steel, cast iron, ductile iron, and powder metallurgy.
Advantages:
· Universal
· Easy choice
· Fast delivery
Application:
PCD Turning Inserts can be used in many fields including the car industry, energy equipment,
and the wood and stone industry.
| MND10 | Applied to the cutting of non-ferrous materials such as aluminum alloys, etc. |
Specification:
| CCGW | Dimensions | Grade | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
MND 10 |
| CCGW 21.50.5 | CCGW 060202 | 1N | 6.35 | 2.38 | 0.2 | 2.8 | 2.5 | √ |
| CCGW 21.51 | CCGW 060204 | 1N | 6.35 | 2.38 | 0.4 | 2.8 | 2.5 | √ |
| CCGW 32.50.5 | CCGW 09T302 | 1N | 9.525 | 3.97 | 0.2 | 4.4 | 2.5 | √ |
| CCGW 32.51 | CCGW 09T304 | 1N | 9.525 | 3.97 | 0.4 | 4.4 | 2.5 | √ |
| CCGW 32.52 | CCGW 09T308 | 1N | 9.525 | 3.97 | 0.8 | 4.4 | 2.5 | √ |
| C-CCGW 21.50.5 | C-CCGW 060202 | 1N | 6.35 | 2.38 | 0.2 | 2.8 | 2.5 | √ |
| C-CCGW 32.51 | C-CCGW 09T304 | 1N | 9.525 | 3.97 | 0.4 | 4.4 | 2.5 | √ |
| F-CCGW 21.51 | F-CCGW 060204 | 2N | 6.35 | 2.38 | 0.4 | 2.8 | 6.4 | √ |
Recommendation:
| Feed rate recommendation | ||||||
| Nose radius(mm) | Ra um | |||||
| 0.2 | 0.4 | 0.8 | 1.6 | 3.2 | 6.4 | |
| Feed Rate f (mm/rev)≤ | ||||||
| 0.2 | 0.028 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 |
| 0.4 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 |
| 0.8 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 |
| 1.2 | 0.069 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 |
| 1.6 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 | 0.453 |
| 2.4 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 | 0.554 |
