Product Details:
|
| Product Brand: | WORLDIA | Product Family: | ManaNova |
|---|---|---|---|
| Model Number: | C-CCGW 060202 | Material: | PCD+Carbide |
| Coating: | Uncoated | PCD Grade: | MND10 |
| Edge Types: | Chip Breaker | Tips: | 2N |
| Application: | Machining Of Non-ferrous Materials | ||
| Highlight: | C-CCGW 060202 Carbide Turning Insert,Carbide Turning Insert 2N Tips,CCGW Standard PCD Turning Insert |
||

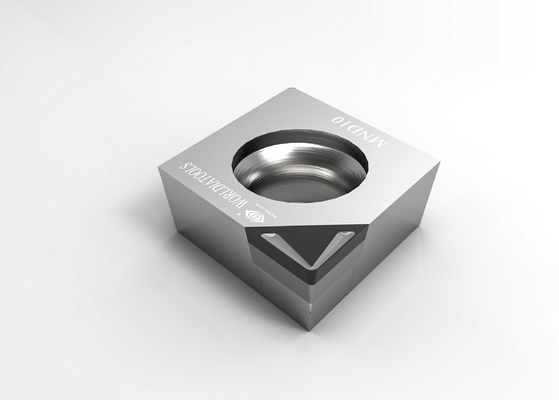

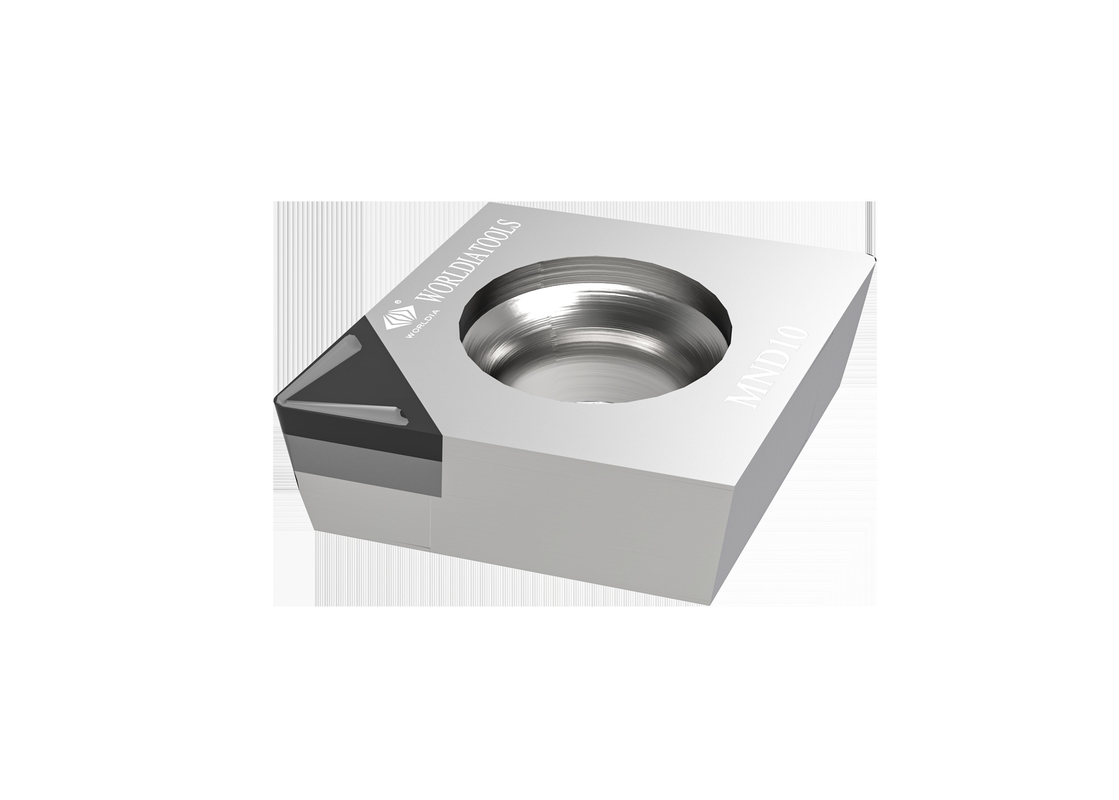

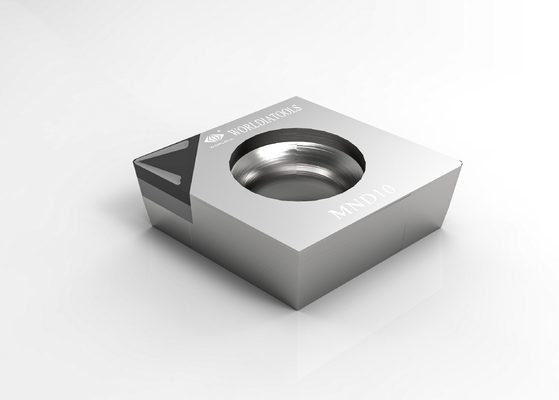

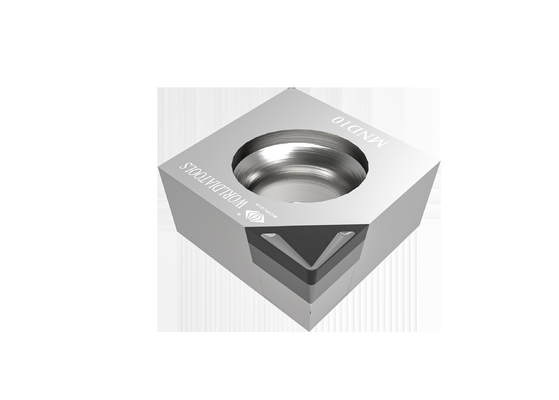

C-CCGW 060202 Standard Carbide Turning PCD Cutting Insert for non-ferrous materials
Advantages:
PCD Insert with chip-breaker
Excellent chip breaking in finishing machining
As the first PCD chip breaker tool maker in China, we have helped many automated workshops
improve their chip control, greatly reducing stringy chipping.
Material:
Poly-Crystalline Diamond (PCD)
1. Reduce your tooling cost significantly
2. For non-ferrous metal machining
Application:
PCD tools are ideal for the use with non-ferrous metal, such as aluminum, Zinc, and magnesium alloys,
GRP composites, carbon fiber reinforced plastics, “green” carbide, and ceramic as well as all abrasive materials.
| MND10 | Applied to the cutting of non-ferrous materials such as aluminum alloys, etc. |
Description:
"ManaNova" is a sub-brand of Worldia, focusing on the high-end standard series.
ManaNova is a concept that stands in the view of end-users, we strictly choose PCD and PCBN materials
to provide the universal cutting effect.
"Easy choice": It is easy to choose according to the comparison table and application.
"Fast delivery": All the types of ManaNova PCD Inserts in the catalog are available in stock.
Main products:
PCD insert is suitable for rough and finish machining of aluminum alloy and other non-ferrous metal materials.
Providing stable, universal, high efficient cutting effect.
PCBN insert 7material/ 1 type, universal for hardened steel, cast iron, ductile iron, and powder metallurgy.
It also exhibits good toughness and thermal shock resistance.
Service:
· Online store service
· Local distributor support
· Technical support
Specification:
| CCGW | Dimensions | Grade | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
MND 10 |
| CCGW 21.50.5 | CCGW 060202 | 1N | 6.35 | 2.38 | 0.2 | 2.8 | 2.5 | √ |
| CCGW 21.51 | CCGW 060204 | 1N | 6.35 | 2.38 | 0.4 | 2.8 | 2.5 | √ |
| CCGW 32.50.5 | CCGW 09T302 | 1N | 9.525 | 3.97 | 0.2 | 4.4 | 2.5 | √ |
| CCGW 32.51 | CCGW 09T304 | 1N | 9.525 | 3.97 | 0.4 | 4.4 | 2.5 | √ |
| CCGW 32.52 | CCGW 09T308 | 1N | 9.525 | 3.97 | 0.8 | 4.4 | 2.5 | √ |
| C-CCGW 21.50.5 | C-CCGW 060202 | 1N | 6.35 | 2.38 | 0.2 | 2.8 | 2.5 | √ |
| C-CCGW 32.51 | C-CCGW 09T304 | 1N | 9.525 | 3.97 | 0.4 | 4.4 | 2.5 | √ |
| F-CCGW 21.51 | F-CCGW 060204 | 2N | 6.35 | 2.38 | 0.4 | 2.8 | 6.4 | √ |
Recommendation:
| Feed rate recommendation | ||||||
| Nose radius(mm) | Ra um | |||||
| 0.2 | 0.4 | 0.8 | 1.6 | 3.2 | 6.4 | |
| Feed Rate f (mm/rev)≤ | ||||||
| 0.2 | 0.028 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 |
| 0.4 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 |
| 0.8 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 |
| 1.2 | 0.069 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 |
| 1.6 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 | 0.453 |
| 2.4 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 | 0.554 |
