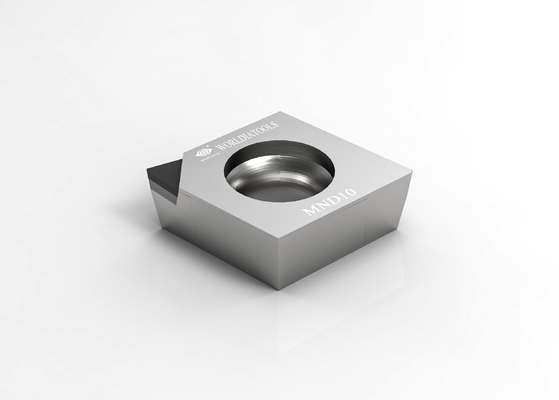

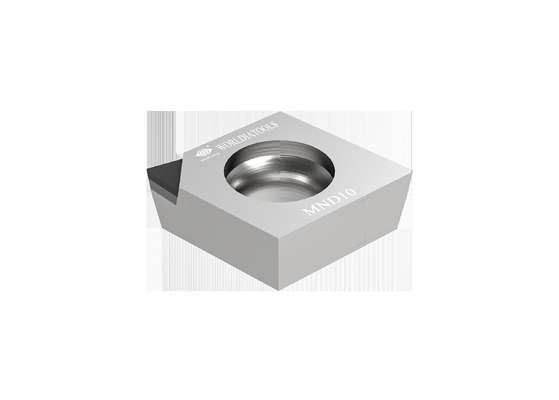

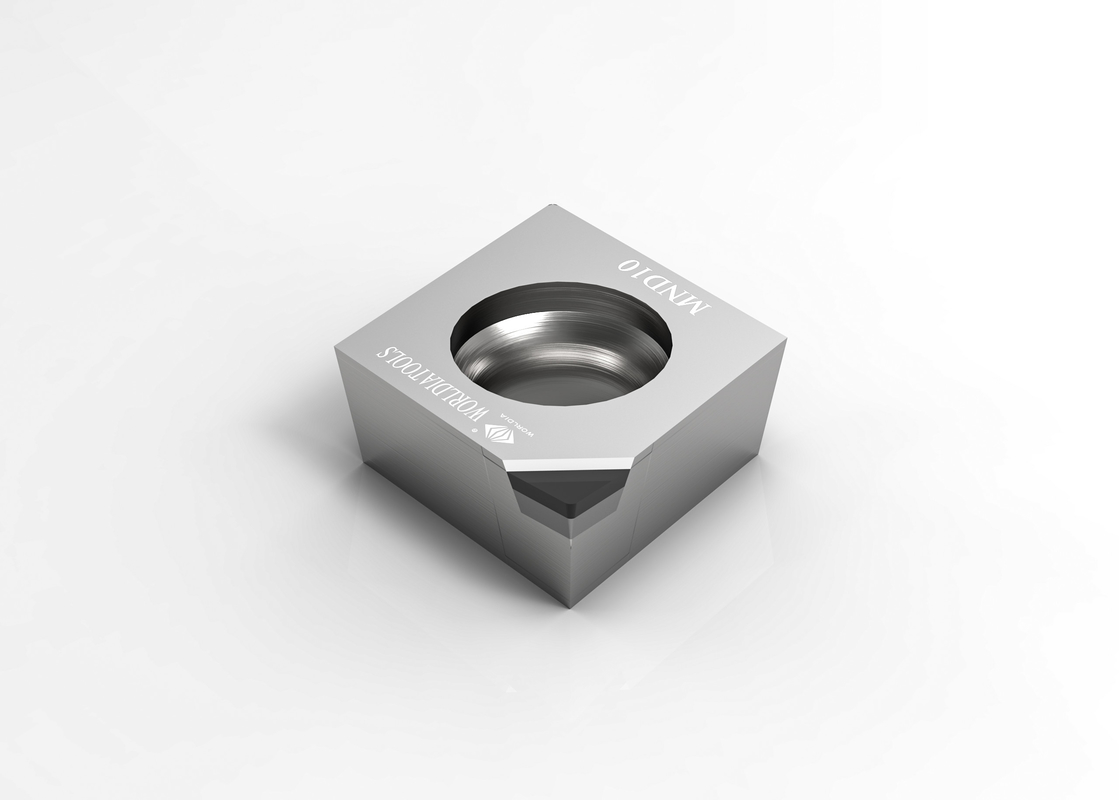

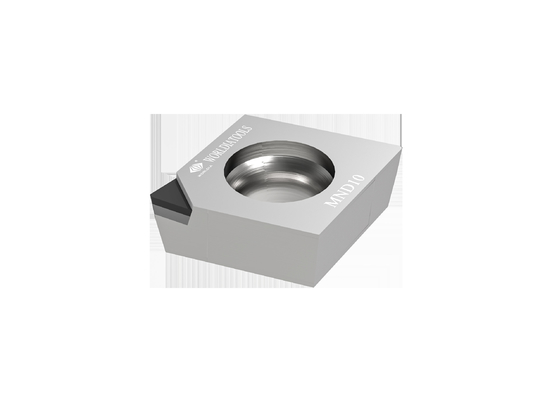

CCGT09T302 PCD Blanks Carbide Cutting Insert For Non Ferrous Materials

CCGT09T302 Standard Carbide Turning PCD Cutting Insert for non-ferrous materials


In the manufacturing worldia, changes push us to promote our products and service.

We are devoted to providing you with cutting tools and solutions that match your company's ambitions.

We want to grow up with you together.





Material:

Poly-Crystalline Diamond (PCD)

1. Reduce your tooling cost significantly

2. For non-ferrous metal machining



Polycrystalline cubic boron nitride(CBN)

1. With an excellent hot hardness

2. Good toughness and thermal shock resistance.

3. For hardened steel, cast irons, sintered irons as well as powder metallurgy components machining



Specification:



Angle		Dimensions						Grade
ANSI Code	ISO Code	Tips	IC mm	S mm	R mm	Φd mm	LE mm	MND 10
CCGT 21.50.5	CCGT 060202	1N	6.35	2.38	0.2	2.8	2.5	√
CCGT 21.51	CCGT 060204	1N	6.35	2.38	0.4	2.8	2.5	√
CCGT 32.50.5	CCGT 09T302	1N	9.525	3.97	0.2	4.4	2.5	√
CCGT 32.51	CCGT 09T304	1N	9.525	3.97	0.4	4.4	2.5	√
CCGT 32.52	CCGT 09T308	1N	9.525	3.97	0.8	4.4	2.5	√

                                                                                                      For another ISO Code, please get in touch with us!

Application:



MND10

Applied to the cutting of non-ferrous materials such as aluminum alloys, etc.



PCD tools are limited to non-ferrous materials, such as high-silicon aluminum, metal matrix composites (MMC), and carbon fiber reinforced plastics (CFRP). PCD with flood coolant can also be used in titanium super-finishing applications.

·Aluminum and aluminum alloys

·Copper, brass, and bronze alloys

·Zinc and magnesium alloys

·Carbon Fiber

·Epoxy resins

·Plastics

·Fiberglass composites

·Graphite composites



Description:

"ManaNova" is a sub-brand of Worldia, focusing on the high-end standard series.

we strictly choose PCD and PCBN materials to provide the universal cutting effect.



The critical feature of ManaNova is Easy choice and Fast delivery.
"Easy choice": It is easy to choose according to the comparison table and application.
"Fast delivery": All the types of ManaNova PCD Inserts in the catalog are available in stock.



Main products:

PCD insert is suitable for rough and finish machining of aluminum alloy and other non-ferrous metal materials.


PCBN insert is suitable for machining hardened steel, gray cast iron, ductile iron, and powder metallurgy.



Advantages:
· Universal
· Easy choice
· Fast delivery

Service:
· Online store service
· Local distributor support
· Technical support



Feed rate recommendation
Nose radius(mm)	Ra um
	0.2	0.4	0.8	1.6	3.2	6.4
	Feed Rate f (mm/rev)≤
0.2	0.028	0.040	0.057	0.080	0.113	0.160
0.4	0.040	0.057	0.080	0.113	0.160	0.226
0.8	0.057	0.080	0.113	0.160	0.226	0.320
1.2	0.069	0.098	0.139	0.196	0.277	0.392
1.6	0.080	0.113	0.160	0.226	0.320	0.453
2.4	0.098	0.139	0.196	0.277	0.392	0.554

​
