Product Details:
|
Product Brand: | WORLDIA | Product Family: | ManaNova |
---|---|---|---|
PCD Grade: | MND10 | Material: | PCD+Carbide |
Model Number: | CCGT 09T308 | Tips: | 1N |
Application: | Cutting Tools | Color: | Picture |
Workpiece: | Nonferrous Metal |

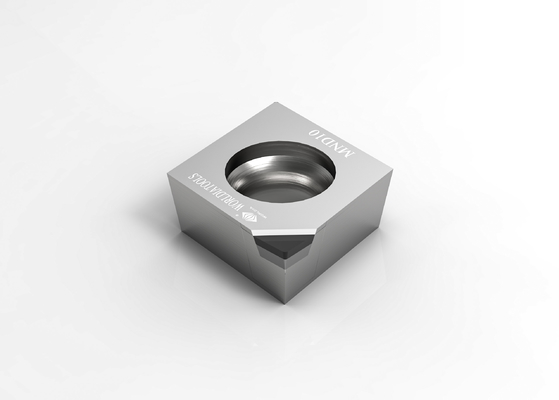

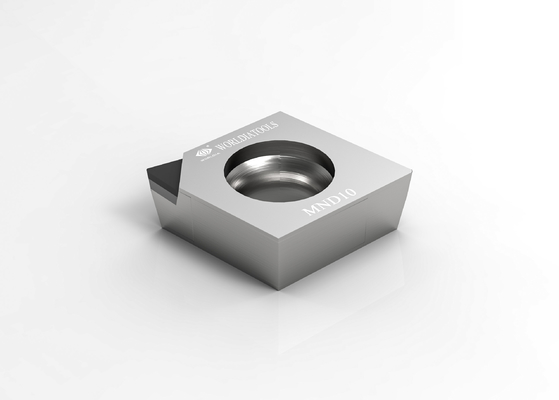

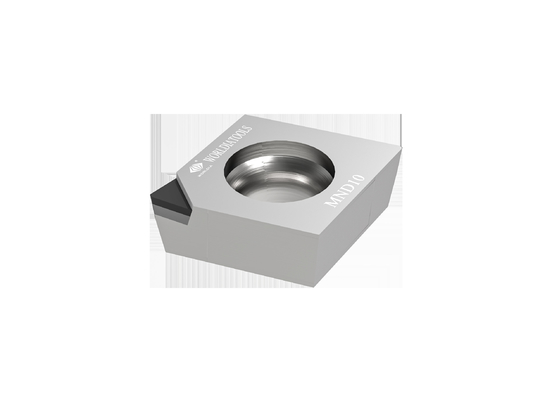

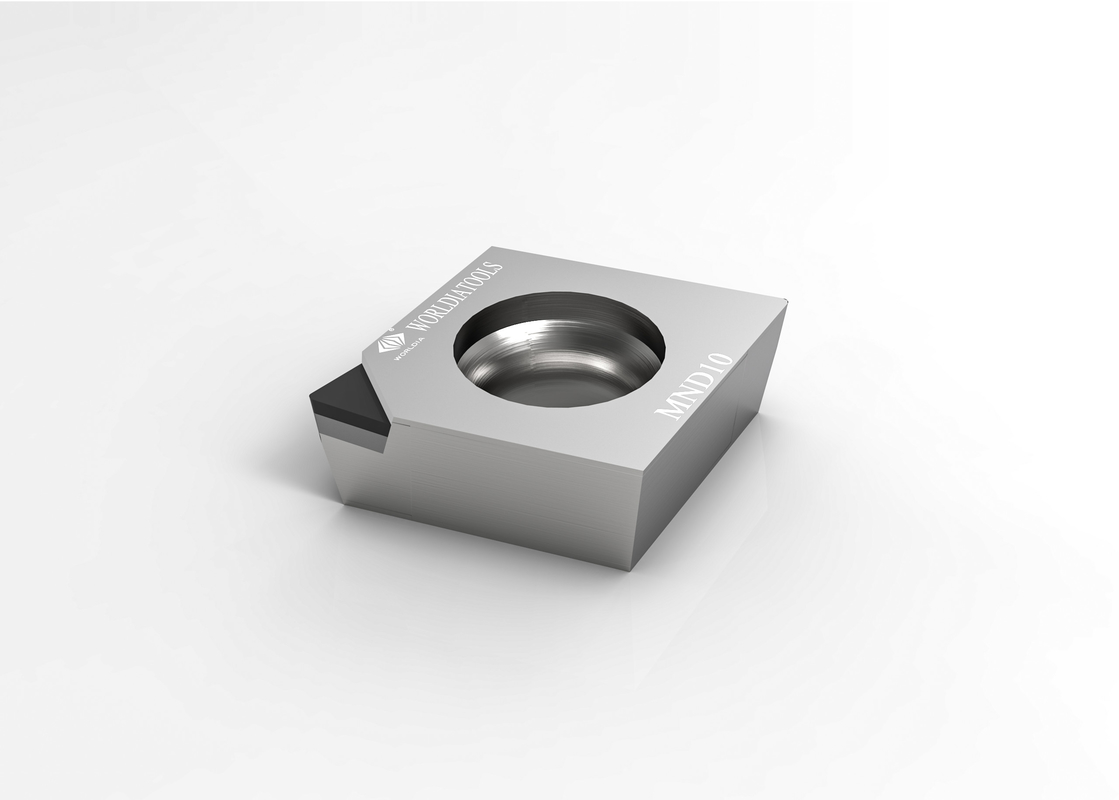

CCGT09T308 Standard Carbide Turning PCD Cutting Insert for non-ferrous materials
In the manufacturing worldia, changes push us to promote our products and service.
WORLDIA pays special attention to the making of Standard Super Hard Cutting Tools.
Material:
We manufacture PCD Tools with advanced processing machines and control the product quality
from the very beginning which keeps PCD tools with high accuracy and good quality with consistency.
We manufacture CBN tools with an industry-leading 5-axis cutting machine and self-designed vacuum
brazing furnace which keeps CBN tools with high accuracy and welding strength.
Specification:
Angle | Dimensions | Grade | ||||||
ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
MND 10 |
CCGT 21.50.5 | CCGT 060202 | 1N | 6.35 | 2.38 | 0.2 | 2.8 | 2.5 | √ |
CCGT 21.51 | CCGT 060204 | 1N | 6.35 | 2.38 | 0.4 | 2.8 | 2.5 | √ |
CCGT 32.50.5 | CCGT 09T302 | 1N | 9.525 | 3.97 | 0.2 | 4.4 | 2.5 | √ |
CCGT 32.51 | CCGT 09T304 | 1N | 9.525 | 3.97 | 0.4 | 4.4 | 2.5 | √ |
CCGT 32.52 | CCGT 09T308 | 1N | 9.525 | 3.97 | 0.8 | 4.4 | 2.5 | √ |
For another ISO Code, please get in touch with us!
Application:
MND10 | Applied to the cutting of non-ferrous materials such as aluminum alloys, etc. |
PCD tools are limited to non-ferrous materials, such as high-silicon aluminum, metal matrix composites (MMC), and carbon fiber reinforced plastics (CFRP). PCD with flood coolant can also be used in titanium super-finishing applications. |
|
·Aluminum and aluminum alloys | |
·Copper, brass, and bronze alloys | |
·Zinc and magnesium alloys | |
·Carbon Fiber | |
·Epoxy resins | |
·Plastics | |
·Fiberglass composites | |
·Graphite composites |
Description:
"ManaNova" is a sub-brand of Worldia, focusing on the high-end standard series.
we strictly choose PCD and PCBN materials to provide the universal cutting effect.
MANANOVA takes “Easy choice and Fast delivery” as the feature, which intends to
provide fast and efficient service for domestic and foreign customers to meet their
demand for standardized and universalized tools.
Main products:
PCD insert: Providing stable, universal, high efficient cutting effect.
PCBN insert: 7 material/ 1 type, universal for hardened steel, cast iron, ductile iron, and powder metallurgy.
Recommendation:
Feed rate recommendation | ||||||
Nose radius(mm) | Ra um | |||||
0.2 | 0.4 | 0.8 | 1.6 | 3.2 | 6.4 | |
Feed Rate f (mm/rev)≤ | ||||||
0.2 | 0.028 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 |
0.4 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 |
0.8 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 |
1.2 | 0.069 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 |
1.6 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 | 0.453 |
2.4 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 | 0.554 |
