Product Details:
|
| Product Brand: | WORLDIA | Product Family: | ManaNova |
|---|---|---|---|
| Name: | PCD Standard Insert | Usage: | Turning Tools |
| Material: | PCD+Carbide | PCD Grade: | MND10 |
| Coating: | No | Model Number: | DCGWDCGW 070202 |
| Application: | High-precision Maching Of Non-ferrous Materials |

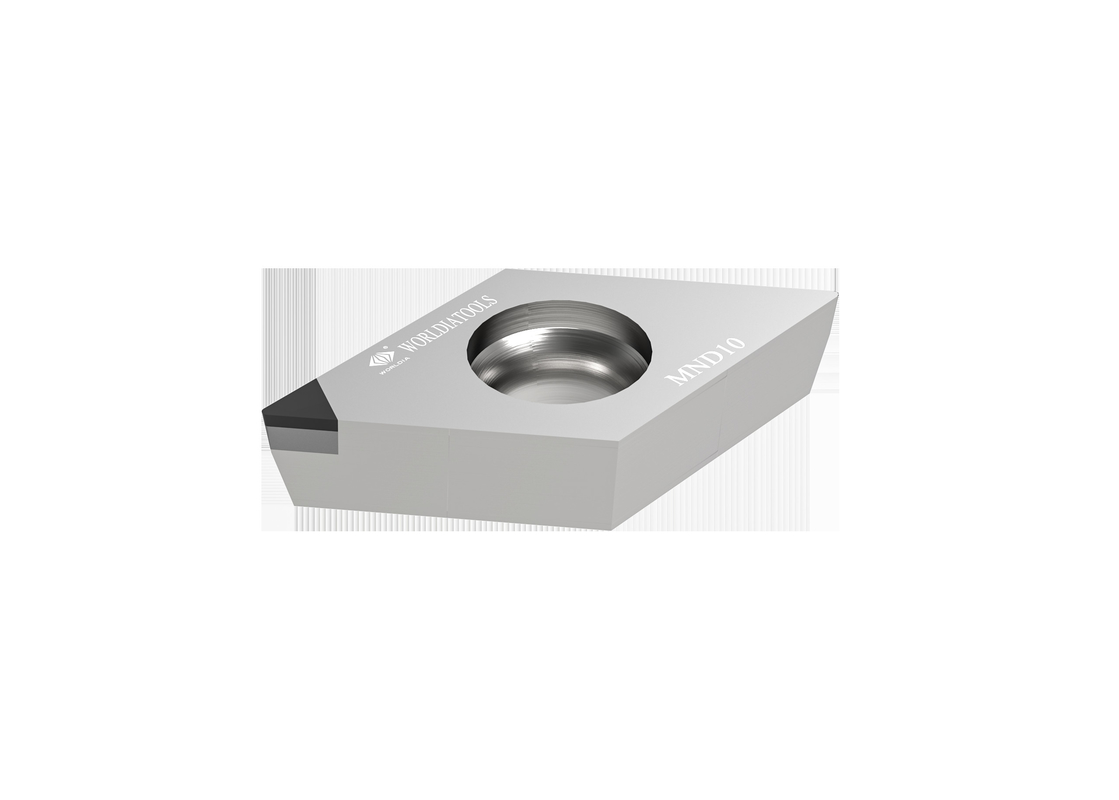

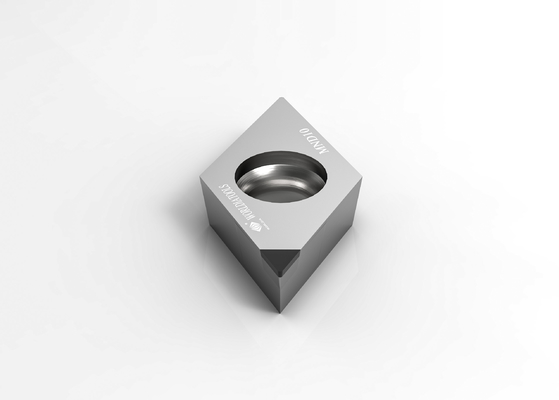

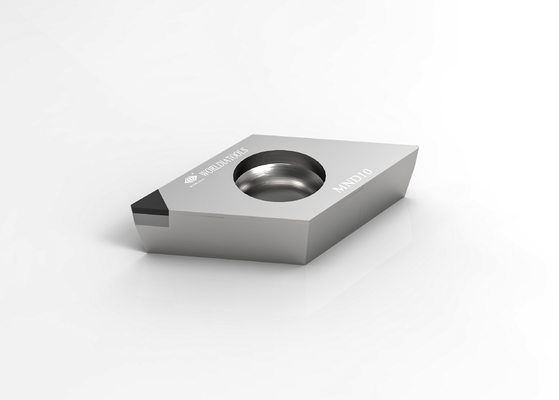

DCGW070202 Carbide Turning Insert PCD Cutting Insert for non-ferrous materials
Description:
ManaNova, a sub-brand of Worldia, is positioned as a high-end standard series.
To meet the needs of customers as the goal, we strictly select PCD/PCBN materials to
provide a universal, stable, and efficient cutting effect.
Easy choice and Fast delivery is the feature of ManaNova.
"Easy choice": It is easy to choose according to the comparison table and application.
"Fast delivery": All the types of ManaNova PCD Inserts in the catalog are available in stock.
Eliminating force majeure, you can get within 4-5 days.
Main products:
PCBN insert: 7material/ 1 type, universal for hardened steel, cast iron, ductile iron, and powder metallurgy.
PCD insert: Providing stable, universal, high efficient cutting effect.
Advantages:
· Universal
· Easy choice
· Fast delivery
Service:
· Online store service
· Local distributor support
· Technical support
Application:
| MND10 |
Applied to cutting of non-ferrous materials such as aluminum alloys, etc. |
| PCD tools are limited to non-ferrous materials, such as high-silicon aluminum, metal matrix composites (MMC), and carbon fiber reinforced plastics (CFRP). PCD with flood coolant can also be used in titanium super-finishing applications. |
|
| ·Aluminum and aluminum alloys | |
| ·Copper, brass, and bronze alloys | |
| ·Zinc and magnesium alloys | |
| ·Carbon Fiber | |
| ·Epoxy resins | |
| ·Plastics | |
| ·Fiberglass composites | |
| ·Graphite composites |
Specification:
| Angle | Dimensions | Grade | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
MND10 |
| DCGW 21.50.5 | DCGW 070202 | 1N | 6.35 | 2.38 | 0.2 | 2.8 | 2.5 | √ |
| DCGW 21.51 | DCGW 070204 | 1N | 6.35 | 2.38 | 0.4 | 2.8 | 2.5 | √ |
| DCGW 32.50.5 | DCGW 11T302 | 1N | 9.525 | 3.97 | 0.2 | 4.4 | 2.5 | √ |
| DCGW 32.51 | DCGW 11T304 | 1N | 9.525 | 3.97 | 0.4 | 4.4 | 2.5 | √ |
| DCGW 32.52 | DCGW 11T308 | 1N | 9.525 | 3.97 | 0.8 | 4.4 | 2.5 | √ |
| Feed rate recommendation | ||||||
| Nose radius(mm) | Ra um | |||||
| 0.2 | 0.4 | 0.8 | 1.6 | 3.2 | 6.4 | |
| Feed Rate f (mm/rev)≤ | ||||||
| 0.2 | 0.028 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 |
| 0.4 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 |
| 0.8 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 |
| 1.2 | 0.069 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 |
| 1.6 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 | 0.453 |
| 2.4 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 | 0.554 |
