Product Details:
|
| Product Brand: | WORLDIA | Product Family: | ManaNova |
|---|---|---|---|
| Coating: | Uncoated | Material: | PCD+Carbide |
| Tips: | 1N | PCD Grade: | MND10 |
| Model Number: | DCGT070204 | Application: | Maching Of Non-ferrous Materials |

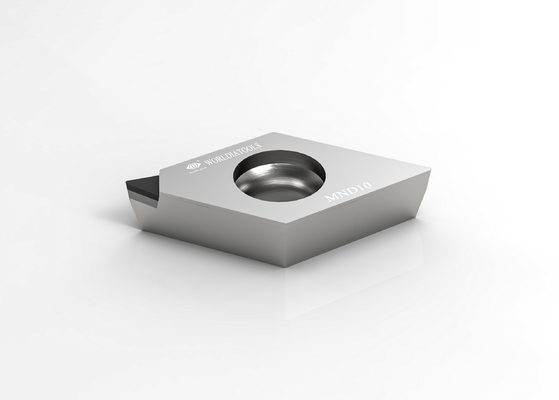

DCGT070204 Carbide Turning Insert PCD Cutting Insert for non-ferrous materials
Description:
ManaNova, a sub-brand of Worldia, is positioned as a high-end standard series.
As a high-end standard cutting tool series, MANANOVA carries out the whole process
of quality management from raw materials, with sophisticated production testing equipment,
professional and experienced R&D and production team, and professional technical services,
so that every user can continue to experience Worldia cutting tools advantages.
MANANOVA takes “Easy choice and Fast delivery” as the feature, which intends to provide fast
and efficient service for domestic and foreign customers to meet their demand for standardized
and universalized tools.
Main products:
PCBN insert
Suitable for machining hardened steel, gray cast iron, ductile iron, and powder metallurgy.
PCD insert
Suitable for rough and finish machining of aluminum alloy and other non-metal materials.
Service:
· Online store service
· Local distributor support
· Technical support
Application:
| MND10 | For the cutting of non-ferrous materials such as aluminum alloys, etc. |
| PCD tools are limited to non-ferrous materials, such as high-silicon aluminum, metal matrix composites (MMC), and carbon fiber reinforced plastics (CFRP). PCD with flood coolant can also be used in titanium super-finishing applications. |
|
| ·Aluminum and aluminum alloys | |
| ·Copper, brass, and bronze alloys | |
| ·Zinc and magnesium alloys | |
| ·Carbon Fiber | |
| ·Epoxy resins | |
| ·Plastics | |
| ·Fiberglass composites | |
| ·Graphite composites |
Specification:
| Angle | Dimensions | Grade | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
MND 10 |
| DCGT 21.50.5 | DCGT 070202 | 1N | 6.35 | 2.38 | 0.2 | 2.8 | 2.5 | √ |
| DCGT 21.51 | DCGT 070204 | 1N | 6.35 | 2.38 | 0.4 | 2.8 | 2.5 | √ |
| DCGT 32.50.5 | DCGT 11T302 | 1N | 9.525 | 3.97 | 0.2 | 4.4 | 2.5 | √ |
| DCGT 32.51 | DCGT 11T304 | 1N | 9.525 | 3.97 | 0.4 | 4.4 | 2.5 | √ |
| DCGT 32.52 | DCGT 11T308 | 1N | 9.525 | 3.97 | 0.8 | 4.4 | 2.5 | √ |
| Feed rate recommendation | ||||||
| Nose radius(mm) | Ra um | |||||
| 0.2 | 0.4 | 0.8 | 1.6 | 3.2 | 6.4 | |
| Feed Rate f (mm/rev)≤ | ||||||
| 0.2 | 0.028 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 |
| 0.4 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 |
| 0.8 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 |
| 1.2 | 0.069 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 |
| 1.6 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 | 0.453 |
| 2.4 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 | 0.554 |
