Product Details:
|
| Product Brand: | WORLDIA | Product Family: | ManaNova |
|---|---|---|---|
| Name: | PCD Standard Insert | Material: | PCD+Carbide |
| Tips: | 1N | PCD Grade: | MND10 |
| Model Number: | VCGT 110302 | Application: | High-precision Maching Of Non-ferrous Materials |

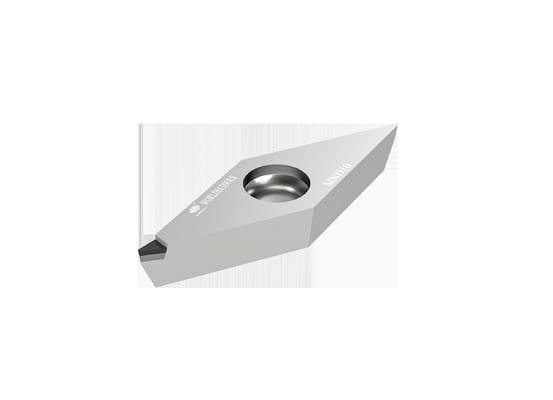

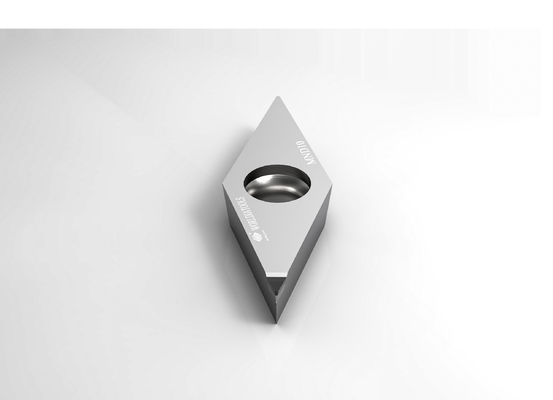

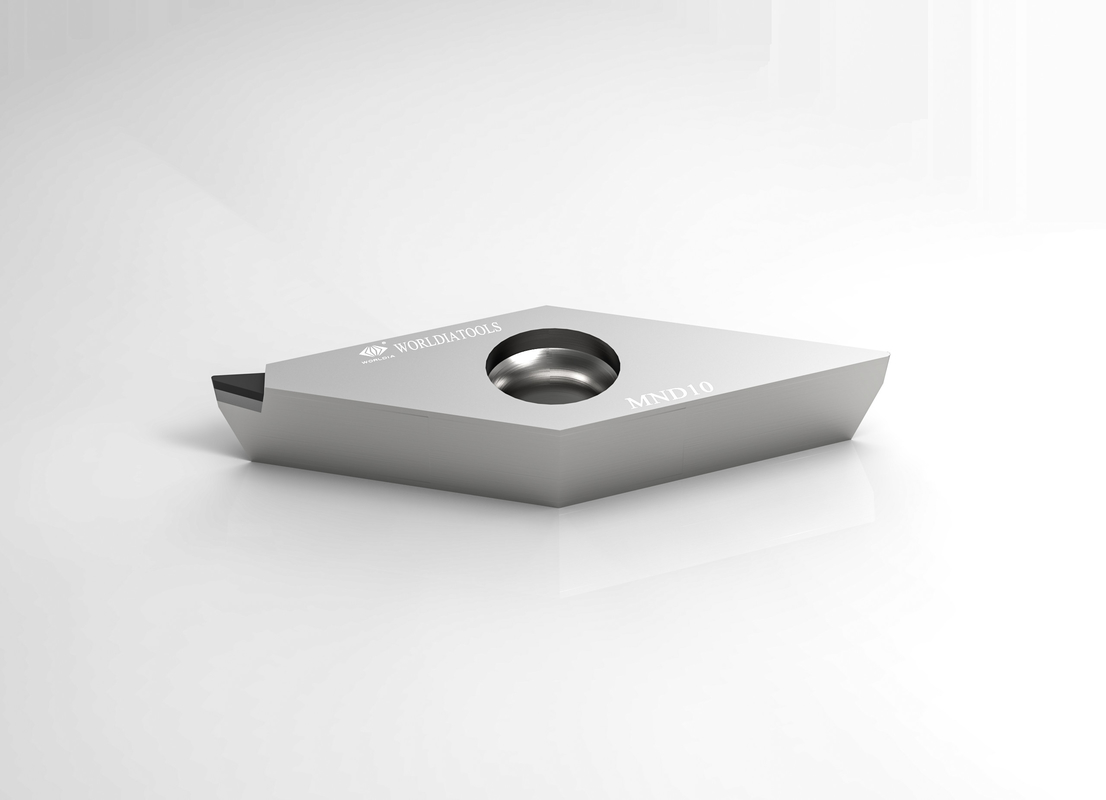

VCGT 110302 Standard Carbide Turning Insert PCD Cutting Insert for non-ferrous materials
WORLDIA pays special attention to the making of Standard Super Hard Cutting Tools.
And we have made a tremendous amount of technical innovations in designing and manufacturing
PCBN/PCD/CVD inserts and related products.
Description:
"ManaNova" is a sub-brand of Worldia, focusing on the high-end standard series.
We strictly choose PCD and PCBN materials to provide the universal cutting effect.
The key feature of ManaNova is Easy choice and Fast delivery.
"Easy choice" : It is easy to choose according to the comparison table and application.
"Fast delivery": All the types of ManaNova PCD Inserts in the catalog are available in stock.
Eliminating force majeure, you can get within 4-5 days.
Main products:
PCBN insert is suitable for machining hardened steel, gray cast iron, ductile iron, and powder metallurgy.
PCD insert is suitable for rough and finish machining of aluminum alloy and other non-metal materials.
Advantages:
· Universal
· Easy choice
· Fast delivery
Service:
· Online store service
· Local distributor support
· Technical support
Application:
| MND10 | Applied to the cutting of non-ferrous materials such as aluminum alloys, etc. |
| PCD tools are limited to non-ferrous materials, such as high-silicon aluminum, metal matrix composites (MMC), and carbon fiber reinforced plastics (CFRP). PCD with flood coolant can also be used in titanium super-finishing applications. |
|
| ·Aluminum and aluminum alloys | |
| ·Copper, brass, and bronze alloys | |
| ·Zinc and magnesium alloys | |
| ·Carbon Fiber | |
| ·Epoxy resins | |
| ·Plastics | |
| ·Fiberglass composites | |
| ·Graphite composites |
Specification:
| Angle | Dimensions | Grade | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
MND 10 |
| VCGT 220.5 | VCGT 110302 | 1N | 6.35 | 3.18 | 0.2 | 2.8 | 2.5 | √ |
| VCGT 221 | VCGT 110304 | 1N | 6.35 | 3.18 | 0.4 | 2.8 | 2.5 | √ |
| VCGT 330.5 | VCGT 160402 | 1N | 9.525 | 4.76 | 0.2 | 4.4 | 2.5 | √ |
| VCGT 331 | VCGT 160404 | 1N | 9.525 | 4.76 | 0.4 | 4.4 | 2.5 | √ |
| VCGT 332 | VCGT 160408 | 1N | 9.525 | 4.76 | 0.8 | 4.4 | 2.5 | √ |
| Feed rate recommendation | ||||||
| Nose radius(mm) | Ra um | |||||
| 0.2 | 0.4 | 0.8 | 1.6 | 3.2 | 6.4 | |
| Feed Rate f (mm/rev)≤ | ||||||
| 0.2 | 0.028 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 |
| 0.4 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 |
| 0.8 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 |
| 1.2 | 0.069 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 |
| 1.6 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 | 0.453 |
| 2.4 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 | 0.554 |
