Product Details:
|
| Product Brand: | WORLDIA | Product Family: | ManaNova |
|---|---|---|---|
| Name: | PCD Standard Insert | Material: | PCD+Carbide |
| Coating: | Uncoated | PCD Grade: | MND10 |
| Model Number: | VCGT 110304 | Application: | Maching Of Non-ferrous Materials |

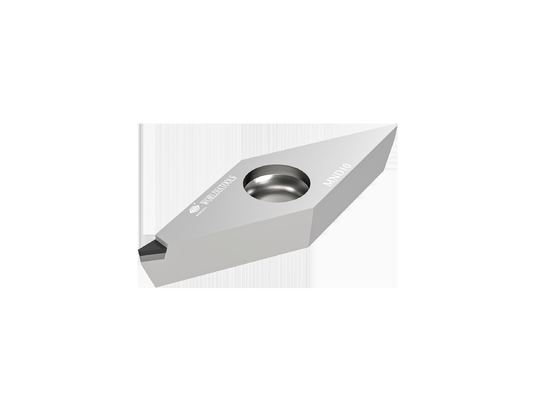

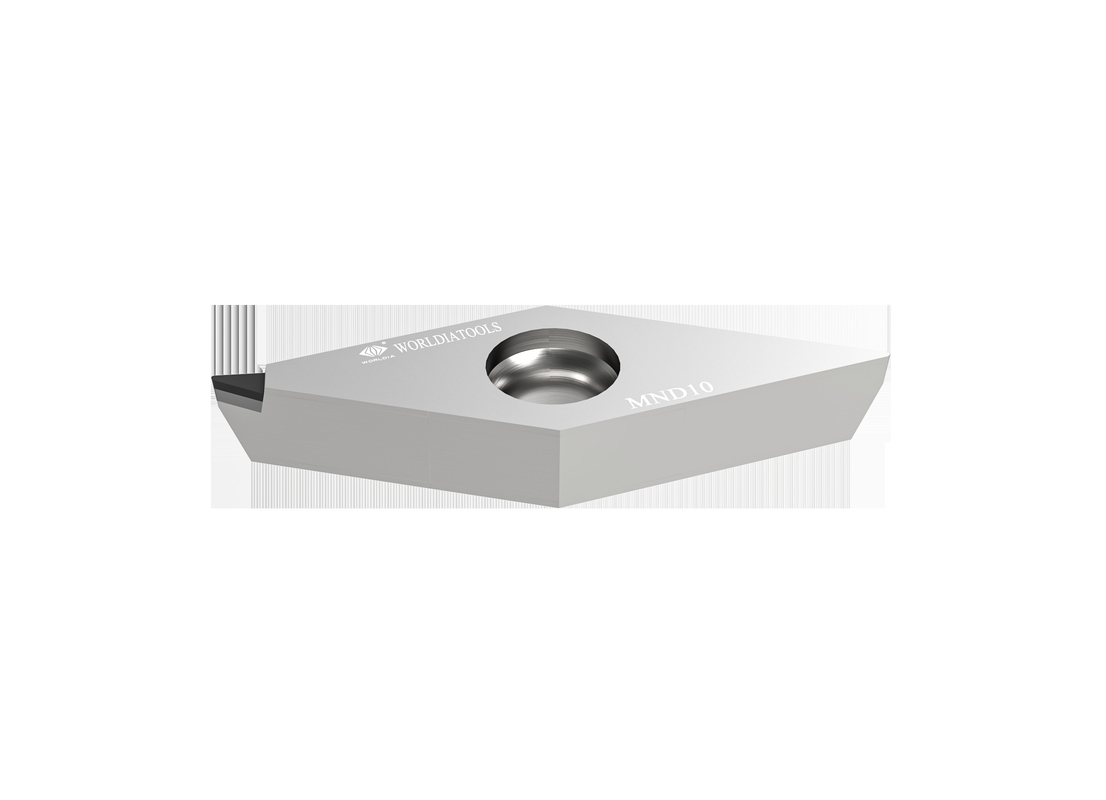

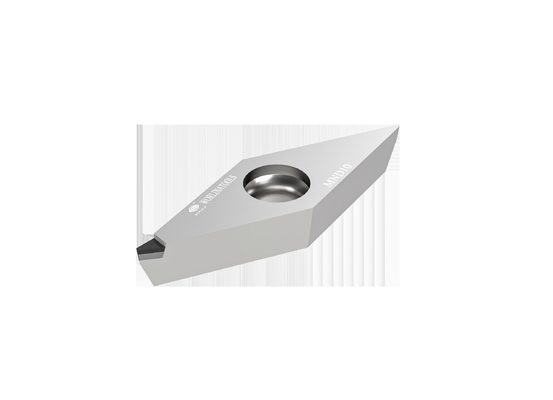

VCGT 110304 Standard Carbide Turning Insert PCD Cutting Insert for non-ferrous materials
In the manufacturing worldia, changes push us to promote our products and service.
We are devoted to providing you with cutting tools and solutions that match the ambitions of your company.
We want to grow up with you together.
Description:
MANANOVA is the sub-brand of WORLDIA, positioned as a high-end standard series,
mainly promoting PCD / PCBN standard inserts.
MANANOVA takes “Easy choice and Fast delivery” as the feature, which intends to provide
fast and efficient service for domestic and foreign customers to meet their demand for standardized
and universalized tools.
Main products:
Worldia ManaNova series covers 7 high-quality CBN grades for the processing of hardened steel, cast iron,
and powder metallurgy, the available grades are MHN10C, MHN20C, MHN30C, MKN10, MKN20, MSN10, and MSN20.
PCD insert (MND10 material ) is suitable for rough and finish machining of aluminum alloy and other non-metal materials.
The four edge types are standard, chip breaker, full edge, and full face.
Advantages:
· Universal
· Easy choice
· Fast delivery
Application:
| MND10 | Applied to the cutting of non-ferrous materials such as aluminum alloys, etc. |
| PCD tools are limited to non-ferrous materials, such as high-silicon aluminum, metal matrix composites (MMC), and carbon fiber reinforced plastics (CFRP). PCD with flood coolant can also be used in titanium super-finishing applications. |
|
| ·Aluminum and aluminum alloys | |
| ·Copper, brass, and bronze alloys | |
| ·Zinc and magnesium alloys | |
| ·Carbon Fiber | |
| ·Epoxy resins | |
| ·Plastics | |
| ·Fiberglass composites | |
| ·Graphite composites |
Specification:
| Angle | Dimensions | Grade | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
MND 10 |
| VCGT 220.5 | VCGT 110302 | 1N | 6.35 | 3.18 | 0.2 | 2.8 | 2.5 | √ |
| VCGT 221 | VCGT 110304 | 1N | 6.35 | 3.18 | 0.4 | 2.8 | 2.5 | √ |
| VCGT 330.5 | VCGT 160402 | 1N | 9.525 | 4.76 | 0.2 | 4.4 | 2.5 | √ |
| VCGT 331 | VCGT 160404 | 1N | 9.525 | 4.76 | 0.4 | 4.4 | 2.5 | √ |
| VCGT 332 | VCGT 160408 | 1N | 9.525 | 4.76 | 0.8 | 4.4 | 2.5 | √ |
| Feed rate recommendation | ||||||
| Nose radius(mm) | Ra um | |||||
| 0.2 | 0.4 | 0.8 | 1.6 | 3.2 | 6.4 | |
| Feed Rate f (mm/rev)≤ | ||||||
| 0.2 | 0.028 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 |
| 0.4 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 |
| 0.8 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 |
| 1.2 | 0.069 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 |
| 1.6 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 | 0.453 |
| 2.4 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 | 0.554 |
