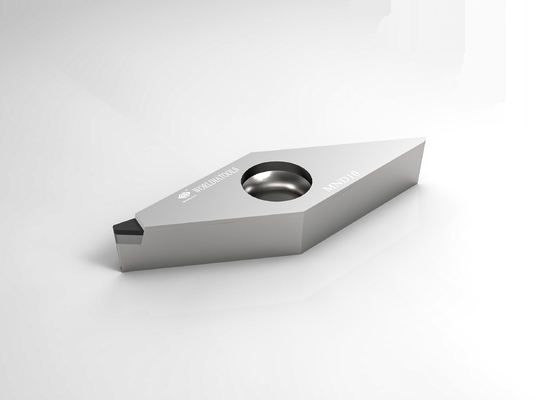

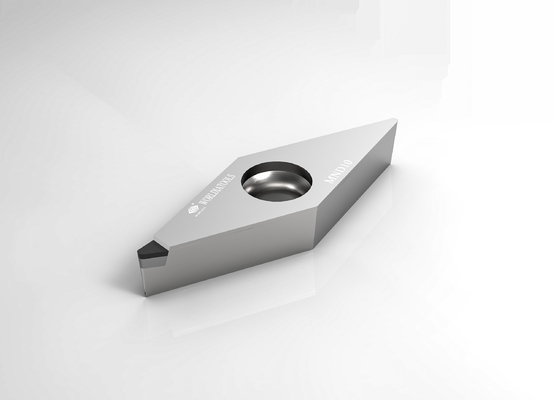

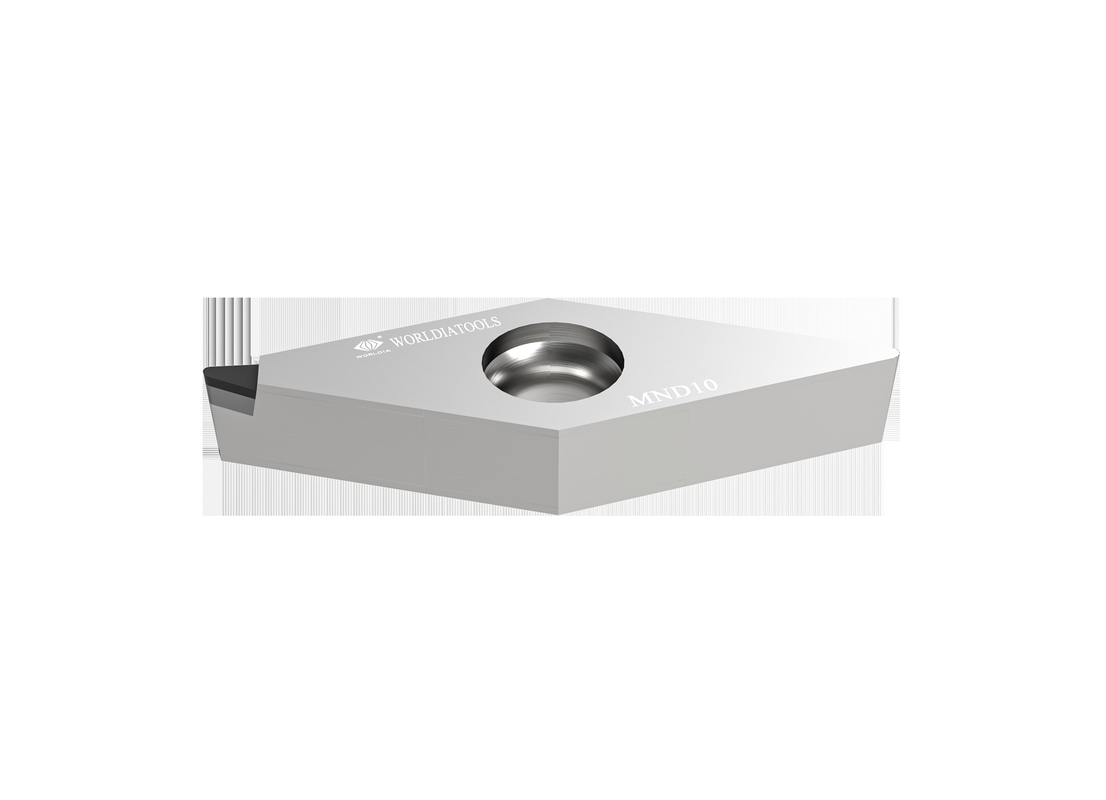

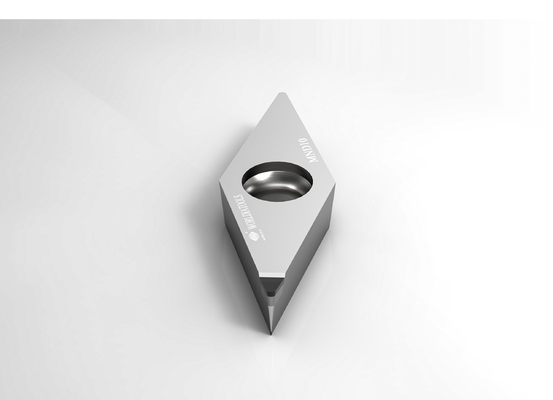

VBGT160404 Diamond Cutting Inserts PCD Inserts For Aluminum

VBGT160404 Diamond Cutting Inserts PCD Inserts For Aluminum
VBGT160404 Diamond Cutting Inserts PCD Inserts For Aluminum VBGT160404 Diamond Cutting Inserts PCD Inserts For Aluminum VBGT160404 Diamond Cutting Inserts PCD Inserts For Aluminum VBGT160404 Diamond Cutting Inserts PCD Inserts For Aluminum

Large Image :  VBGT160404 Diamond Cutting Inserts PCD Inserts For Aluminum

Product Details:
Place of Origin: Beijing, China
Brand Name: ManaNova
Certification: ISO9001,14001.18001, RoHS
Model Number: VBGT160404
Payment & Shipping Terms:
Minimum Order Quantity: 2 Piece
Price: $20-40/ Piece
Packaging Details: 2 PCs/Blue rose box
Delivery Time: 3-4days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: In stock

VBGT160404 Diamond Cutting Inserts PCD Inserts For Aluminum

Description
Product Brand: WORLDIA Product Family: ManaNova
Coating: Uncoated Tips: 1N
Material: PCD+Carbide PCD Grade: MND10
Model Number: VBGT160404 Application: Machining Of Non-ferrous Materials
High Light:

VBGT Diamond Cutting Inserts

,

MND10 Diamond Cutting Inserts

,

VBGT PCD Inserts For Aluminum

VBGT 160402 Standard Carbide Turning Insert PCD Cutting Insert for non-ferrous materials


In the manufacturing worldia, changes push us to promote our products and service.

WORLDIA pays special attention to the making of Standard Super Hard Cutting Tools.


Description:
"ManaNova" is a sub-brand of Worldia, focusing on the high-end standard series.

To meet the needs of customers as the goal, we strictly select PCD/PCBN materials to provide a universal,

stable, and efficient cutting effect.



The critical feature of ManaNova is Easy choice and Fast delivery.
"Easy choice": It is easy to choose according to the comparison table and application.
"Fast delivery": All the ManaNova PCD Inserts in the catalog are available in stock.

                        Eliminating force majeure, you can get within 4-5 days.


Main products:
PCBN insert is suitable for machining hardened steel, gray cast iron, ductile iron, and powder metallurgy.

Especially coated PCBN insert is suitable for continuous to the heavy interrupted cutting of hardened steel

and has excellent universal performance.



PCD insert (MND10 material ) has four edge types: standard, chip breaker, full edge, and full face, which is suitable

for rough and finish machining of aluminum alloy and other non-metal materials.




Advantages:

·High quality

·Low cost

·Factory direct supply




Service:
· Online store service
· Local distributor support
· Technical support


Application:

MND10  Suitable for the cutting of non-ferrous materials such as aluminum alloys, etc.



PCD tools are limited to non-ferrous materials, such as high-silicon aluminum, metal matrix composites (MMC), and carbon fiber reinforced plastics (CFRP).
PCD with flood coolant can also be used in titanium super-finishing applications.
·Aluminum and aluminum alloys
·Copper, brass, and bronze alloys
·Zinc and magnesium alloys
·Carbon Fiber
·Epoxy resins
·Plastics
·Fiberglass composites
·Graphite composites


Specification:


Angle Dimensions Grade
ANSI Code ISO Code Tips IC
mm
S
mm
R
mm
Φd
mm
LE
mm
MND
10
VBGT 330.5 VBGT 160402 1N 9.525 4.76 0.2 4.4 2.5
VBGT 331 VBGT 160404 1N 9.525 4.76 0.4 4.4 2.5
VBGT 332 VBGT 160408 1N 9.525 4.76 0.8 4.4 2.5



Feed rate recommendation
Nose radius(mm) Ra um
0.2 0.4 0.8 1.6 3.2 6.4
Feed Rate f (mm/rev)≤
0.2 0.028 0.040 0.057 0.080 0.113 0.160
0.4 0.040 0.057 0.080 0.113 0.160 0.226
0.8 0.057 0.080 0.113 0.160 0.226 0.320
1.2 0.069 0.098 0.139 0.196 0.277 0.392
1.6 0.080 0.113 0.160 0.226 0.320 0.453
2.4 0.098 0.139 0.196 0.277 0.392 0.554





VBGT160404 Diamond Cutting Inserts PCD Inserts For Aluminum 0
