Product Details:
|
| Product Brand: | WORLDIA | Product Family: | ManaNova |
|---|---|---|---|
| Type: | PCD Insert | Coating: | Uncoated |
| Material: | PCD+Carbide | PCD Grade: | MND10 |
| Model Number: | VBGT160408 | Application: | Machining Of Non-ferrous Materials |
| High Light: | VBGT PCD Cutting Inserts,ODM 1N Tips PCD Cutting Inserts,VBGT Insert For GRP Composites |
||

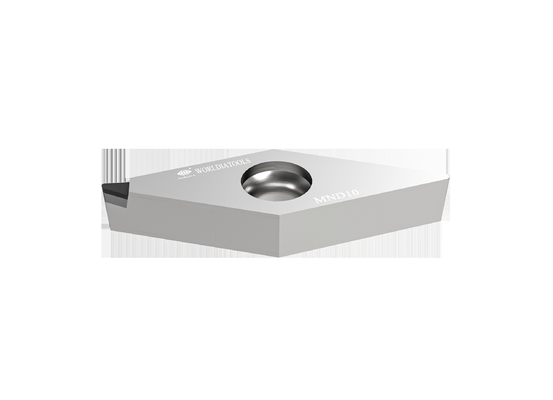

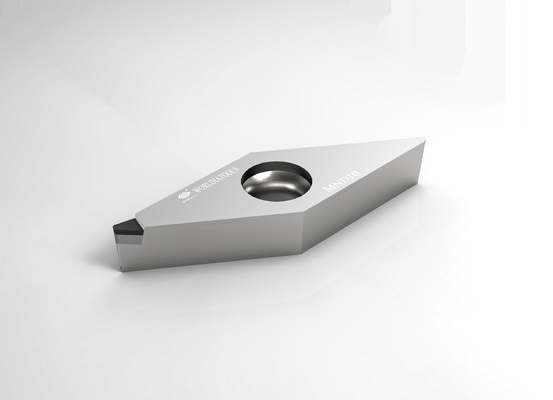

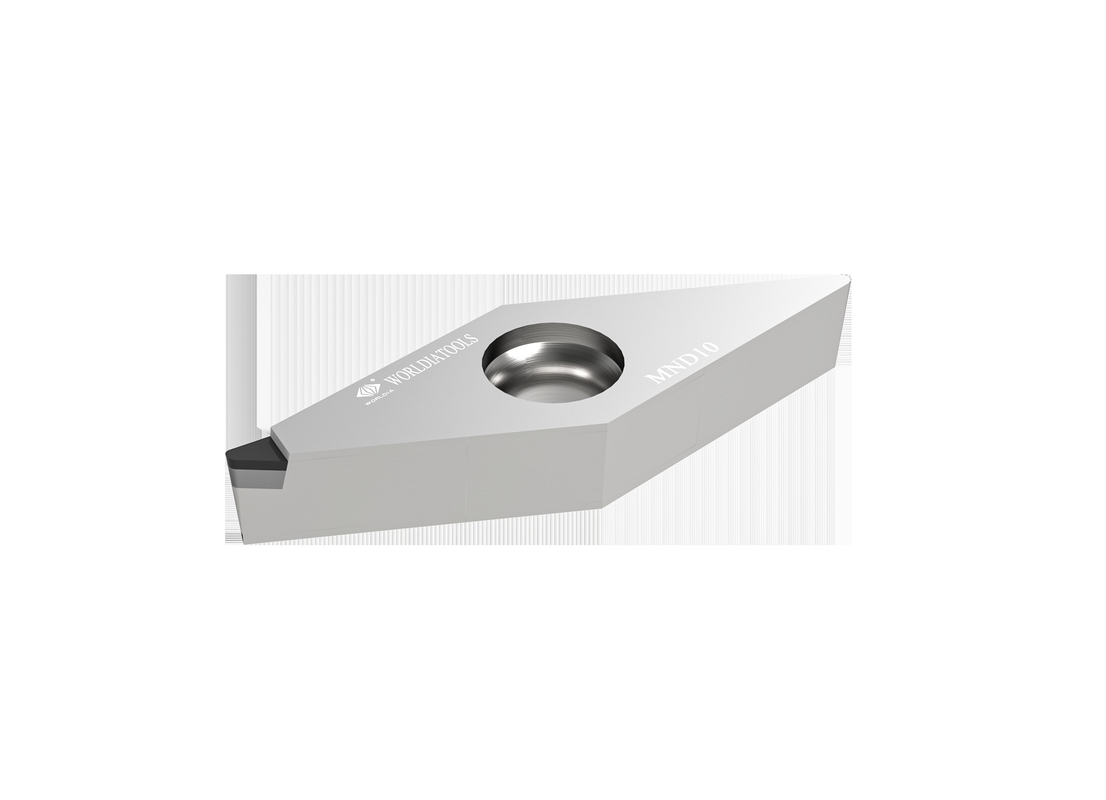

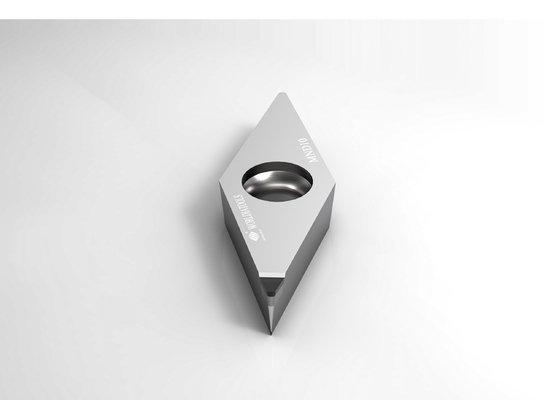

VBGT 160402 Standard Carbide Turning Insert PCD Cutting Insert for non-ferrous materials
In the manufacturing worldia, we have made a tremendous amount of technical innovations in designing
and manufacturing PCBN/PCD/CVD inserts and related products.
We are devoted to providing you with cutting tools and solutions that match the ambitions of your company.
We want to grow up with you together.
Description:
"ManaNova" is a sub-brand of Worldia, focusing on the high-end standard series.
ManaNova is a concept that stands in the view of end-users, we strictly choose
PCD and PCBN materials to provide the universal cutting effect.
MANANOVA takes “Easy choice and Fast delivery” as the feature, which intends to provide
fast and efficient service for domestic and foreign customers to meet their demand for standardized
and universalized tools.
Main products:
“Seven material/ one type” namely each specification corresponding to seven materials
(MHN10C ,MHN20C ,MHN30C, MKN10,MKN20,MSN 10)is the feature of the PCBN insert.
PCD tools are ideal for use with non-ferrous metal, such as aluminum, zinc, and magnesium alloys,
GRP composites, carbon fiber reinforced plastics, “green” carbide, and ceramic as well as all abrasive materials.
PCD insert is suitable for rough and finish machining of aluminum alloy and other non-metal materials.
Service:
· Online store service
· Local distributor support
· Technical support
Application:
| MND10 | Suitable for the cutting of non-ferrous materials such as aluminum alloys, etc. |
| PCD tools are limited to non-ferrous materials, such as high-silicon aluminum, metal matrix composites (MMC), and carbon fiber reinforced plastics (CFRP). PCD with flood coolant can also be used in titanium super-finishing applications. |
|
| ·Aluminum and aluminum alloys | |
| ·Copper, brass, and bronze alloys | |
| ·Zinc and magnesium alloys | |
| ·Carbon Fiber | |
| ·Epoxy resins | |
| ·Plastics | |
| ·Fiberglass composites | |
| ·Graphite composites |
Specification:
| Angle | Dimensions | Grade | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
MND 10 |
| VBGT 330.5 | VBGT 160402 | 1N | 9.525 | 4.76 | 0.2 | 4.4 | 2.5 | √ |
| VBGT 331 | VBGT 160404 | 1N | 9.525 | 4.76 | 0.4 | 4.4 | 2.5 | √ |
| VBGT 332 | VBGT 160408 | 1N | 9.525 | 4.76 | 0.8 | 4.4 | 2.5 | √ |
| Feed rate recommendation | ||||||
| Nose radius(mm) | Ra um | |||||
| 0.2 | 0.4 | 0.8 | 1.6 | 3.2 | 6.4 | |
| Feed Rate f (mm/rev)≤ | ||||||
| 0.2 | 0.028 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 |
| 0.4 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 |
| 0.8 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 |
| 1.2 | 0.069 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 |
| 1.6 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 | 0.453 |
| 2.4 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 | 0.554 |
