Product Details:
|
| Product Brand: | WORLDIA | Product Family: | ManaNova |
|---|---|---|---|
| Model Number: | TCGW 090204 | Usage: | Turning Tools |
| Material: | PCD+Carbide | PCD Grade: | MND10 |
| Coating: | Uncoated | Application: | Machining Of Non-ferrous Materials |
| High Light: | MND10 PCD carbide cutting inserts,TCGW carbide cutting inserts,TCGW carbide inserts for stainless steel |
||

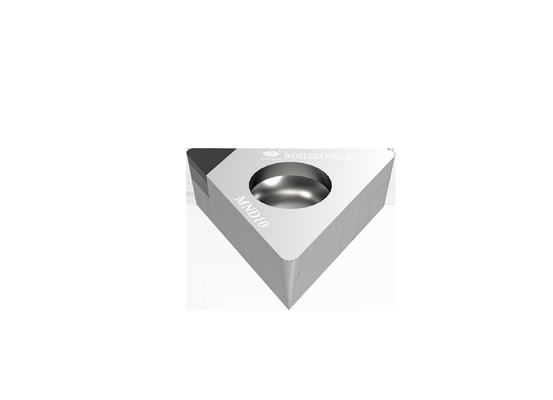

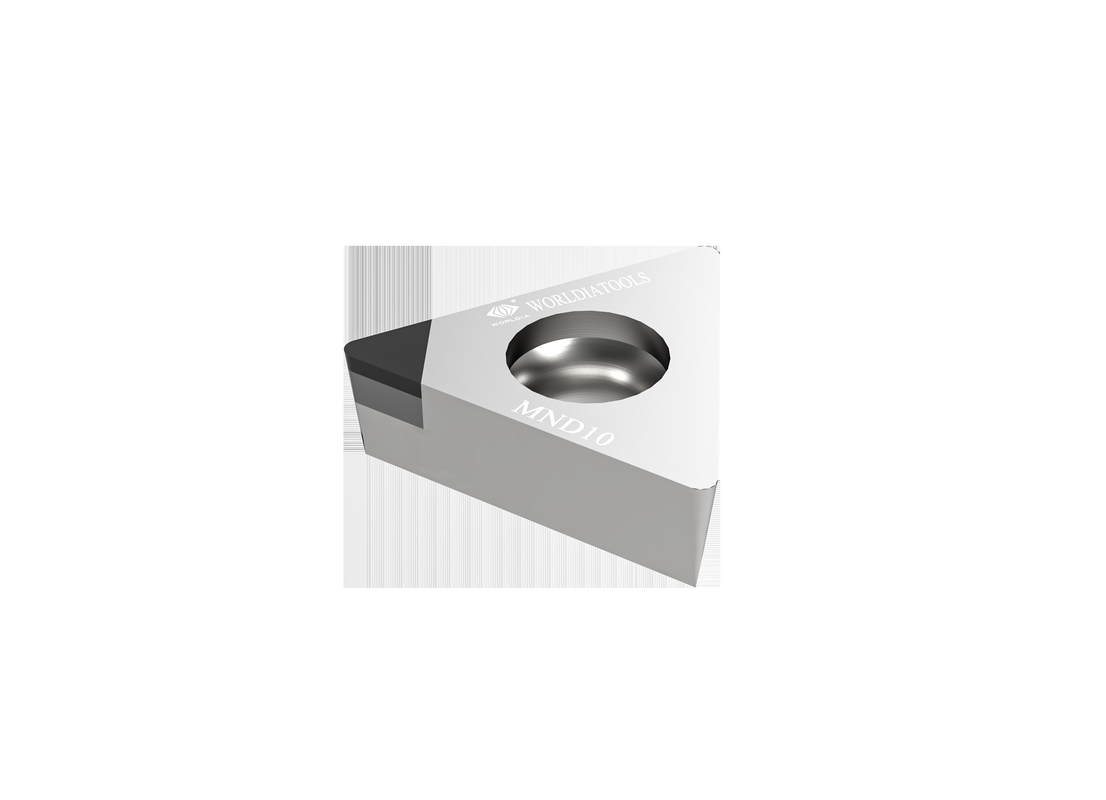

TCGW090204 Standard Carbide Turning Insert PCD Cutting Insert for non-ferrous materials
Description:
"ManaNova" is a sub-brand of Worldia, focusing on high-end standard series.
To meet the needs of customers as the goal, we strictly select PCD/PCBN materials to provide a universal,
stable, and efficient cutting effect.
Easy choice and Fast delivery is the feature of ManaNova.
MANANOVA takes “Easy choice and Fast delivery” as the feature, which intends to provide fast and
efficient service for domestic and foreign customers to meet their demand for standardized and
universalized tools.
Main products:
We manufacture PCD Tools with advanced processing machines and control the product quality
from the very beginning which keeps PCD tools with high accuracy and good quality with consistency.
PCD insert is suitable for rough and finish machining of aluminum alloy and other non-metal materials.
We manufacture CBN tools with an industry-leading 5-axis cutting machine and self-designed vacuum
brazing furnace which keeps CBN tools with high accuracy and welding strength.
PCBN insert is suitable for machining hardened steel, gray cast iron, ductile iron, and powder metallurgy.
Advantages:
·High quality
·Low cost
·Factory direct supply
Application:
| MND10 | Applied to cutting of non-ferrous materials such as aluminum alloys,etc. |
| PCD tools are limited to non-ferrous materials, such as high-silicon aluminium, metal matrix composites (MMC) and carbon fibre reinforced plastics (CFRP). PCD with flood coolant can also be used in titanium super-finishing applications. |
|
| ·Aluminum and aluminum alloys | |
| ·Copper, brass and bronze alloys | |
| ·Zinc and magnesium alloys | |
| ·Carbon Fiber | |
| ·Epoxy resins | |
| ·Plastics | |
| ·Fiberglass composites | |
| ·Graphite composites |
Specification:
| Angle | Dimensions | Grade | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
MND 10 |
| TCGW 1.81.50.5 | TCGW 090202 | 1N | 5.56 | 2.38 | 0.2 | 2.4 | 2.5 | √ |
| TCGW 1.81.51 | TCGW 090204 | 1N | 5.56 | 2.38 | 0.4 | 2.4 | 2.5 | √ |
| TCGW 220.5 | TCGW 110302 | 1N | 6.35 | 3.18 | 0.2 | 2.8 | 2.5 | √ |
| TCGW 221 | TCGW 110304 | 1N | 6.35 | 3.18 | 0.4 | 2.8 | 2.5 | √ |
| TCGW 222 | TCGW 110308 | 1N | 6.35 | 3.18 | 0.8 | 2.8 | 2.5 | √ |
| TCGW 32.51 | TCGW 16T304 | 1N | 9.525 | 3.97 | 0.4 | 4.4 | 2.5 | √ |
| TCGW 32.52 | TCGW 16T308 | 1N | 9.525 | 3.97 | 0.8 | 4.4 | 2.5 | √ |
| L-TCGW 32.50.5 | L-TCGW 16T302 | 2N | 9.525 | 3.97 | 0.2 | 4.4 | 16.2 | √ |
| L-TCGW 32.51 | L-TCGW 16T304 | 2N | 9.525 | 3.97 | 0.4 | 4.4 | 15.9 | √ |
| L-TCGW 32.52 | L-TCGW 16T308 | 2N | 9.525 | 3.97 | 0.8 | 4.4 | 15.3 | √ |
| F-VBGW 1.81.51 | F-VBGW 090204 | 3N | 5.56 | 2.38 | 0.4 | 2.4 | 9 | √ |
| Feed rate recommendation | ||||||
| Nose radius(mm) | Ra um | |||||
| 0.2 | 0.4 | 0.8 | 1.6 | 3.2 | 6.4 | |
| Feed Rate f (mm/rev)≤ | ||||||
| 0.2 | 0.028 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 |
| 0.4 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 |
| 0.8 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 |
| 1.2 | 0.069 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 |
| 1.6 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 | 0.453 |
| 2.4 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 | 0.554 |
