Product Details:
|
| Product Brand: | WORLDIA | Product Family: | ManaNova |
|---|---|---|---|
| Product Name: | PCD Standard CuttingInserts | Model Number: | TCGW 110302 |
| Usage: | Turning Tools | Material: | PCD+Carbide |
| PCD Grade: | MND10 | Application: | Machining Of Non-ferrous Materials |
| High Light: | TCGW PCD Cutting Inserts,ManaNova PCD Cutting Inserts,Polycrystalline Diamond CNC Turning Inserts |
||

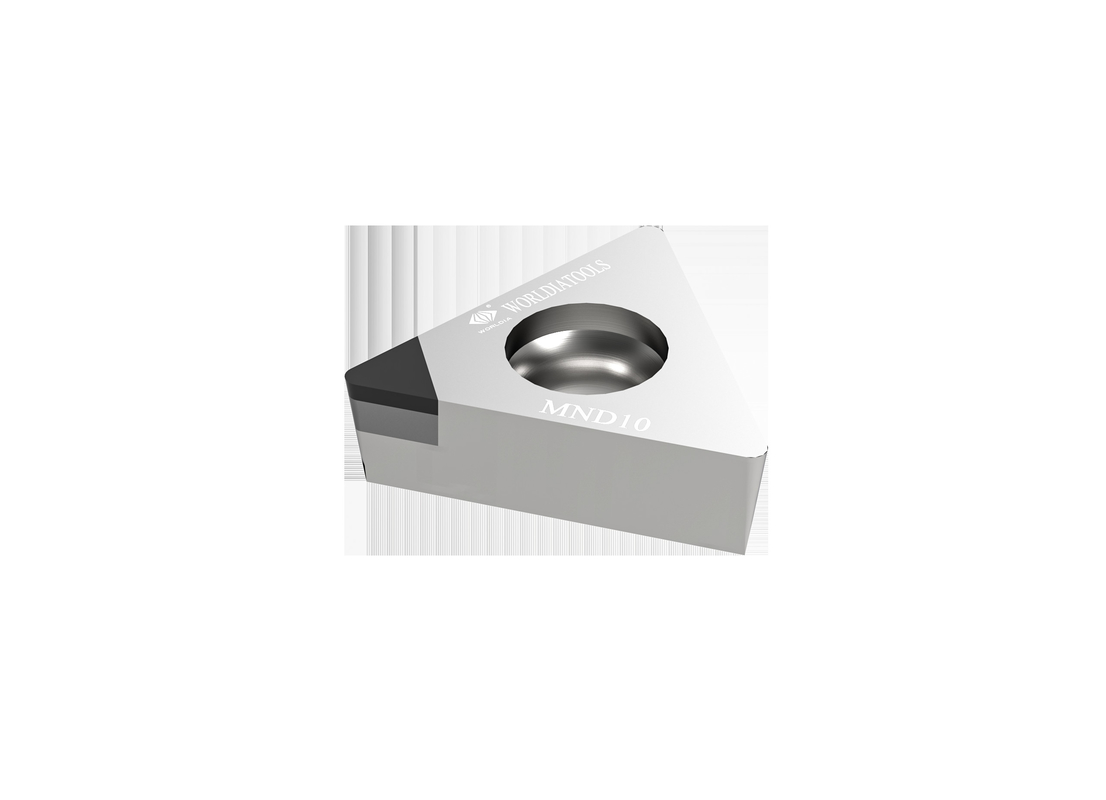

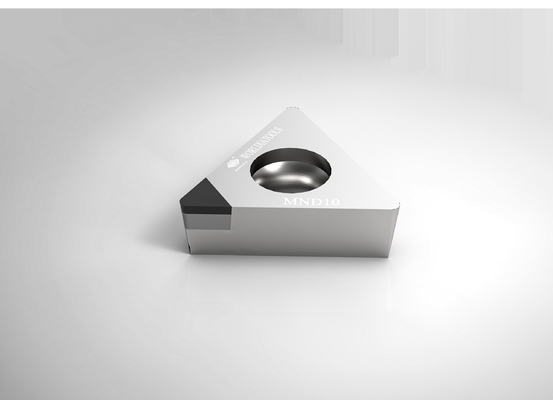

TCGW090204 Standard Carbide Turning Insert PCD Cutting Insert for non-ferrous materials
In the manufacturing worldia, changes push us to promote our products and service.
We are devoted to providing you with cutting tools and solutions that match the ambitions of your company.
We want to grow up with you together.
Description:
"ManaNova" is a sub-brand of Worldia, focusing on the high-end standard series.
ManaNova is a concept that stands in the view of end-users, we strictly choose
PCD and PCBN materials to provide the universal cutting effect.
Easy choice and Fast delivery is the feature of ManaNova.
Main products:
Poly-Crystalline Diamond (PCD)
1. Reduce your tooling cost significantly
2. For non-ferrous metal machining
PCD insert is suitable for rough and finish machining of aluminum alloy and other non-metal materials.
Polycrystalline cubic boron nitride(CBN)
1. With an excellent hot hardness
2. Good toughness and thermal shock resistance.
3. For hardened steel, cast irons, sintered irons as well as powder metallurgy components machining
PCBN insert is suitable for machining hardened steel, gray cast iron, ductile iron, and powder metallurgy.
Advantages:
·High quality
·Low cost
·Factory direct supply
Service:
· Online store service
· Local distributor support
· Technical support
Application:
| MND10 | Suitable for the cutting of non-ferrous materials such as aluminum alloys, etc. |
| PCD tools are limited to non-ferrous materials, such as high-silicon aluminum, metal matrix composites (MMC), and carbon fiber reinforced plastics (CFRP). PCD with flood coolant can also be used in titanium super-finishing applications. |
|
| ·Aluminum and aluminum alloys | |
| ·Copper, brass, and bronze alloys | |
| ·Zinc and magnesium alloys | |
| ·Carbon Fiber | |
| ·Epoxy resins | |
| ·Plastics | |
| ·Fiberglass composites | |
| ·Graphite composites |
Specification:
| Angle | Dimensions | Grade | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
MND 10 |
| TCGW 1.81.50.5 | TCGW 090202 | 1N | 5.56 | 2.38 | 0.2 | 2.4 | 2.5 | √ |
| TCGW 1.81.51 | TCGW 090204 | 1N | 5.56 | 2.38 | 0.4 | 2.4 | 2.5 | √ |
| TCGW 220.5 | TCGW 110302 | 1N | 6.35 | 3.18 | 0.2 | 2.8 | 2.5 | √ |
| TCGW 221 | TCGW 110304 | 1N | 6.35 | 3.18 | 0.4 | 2.8 | 2.5 | √ |
| TCGW 222 | TCGW 110308 | 1N | 6.35 | 3.18 | 0.8 | 2.8 | 2.5 | √ |
| TCGW 32.51 | TCGW 16T304 | 1N | 9.525 | 3.97 | 0.4 | 4.4 | 2.5 | √ |
| TCGW 32.52 | TCGW 16T308 | 1N | 9.525 | 3.97 | 0.8 | 4.4 | 2.5 | √ |
| L-TCGW 32.50.5 | L-TCGW 16T302 | 2N | 9.525 | 3.97 | 0.2 | 4.4 | 16.2 | √ |
| L-TCGW 32.51 | L-TCGW 16T304 | 2N | 9.525 | 3.97 | 0.4 | 4.4 | 15.9 | √ |
| L-TCGW 32.52 | L-TCGW 16T308 | 2N | 9.525 | 3.97 | 0.8 | 4.4 | 15.3 | √ |
| F-VBGW 1.81.51 | F-VBGW 090204 | 3N | 5.56 | 2.38 | 0.4 | 2.4 | 9 | √ |
| Feed rate recommendation | ||||||
| Nose radius(mm) | Ra um | |||||
| 0.2 | 0.4 | 0.8 | 1.6 | 3.2 | 6.4 | |
| Feed Rate f (mm/rev)≤ | ||||||
| 0.2 | 0.028 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 |
| 0.4 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 |
| 0.8 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 |
| 1.2 | 0.069 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 |
| 1.6 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 | 0.453 |
| 2.4 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 | 0.554 |
