Product Details:
|
| Product Brand: | WORLDIA | Product Family: | ManaNova |
|---|---|---|---|
| Model Number: | TCGW 110308 | Coating: | Uncoated |
| Tips: | 1N | Material: | PCD+Carbide |
| PCD Grade: | MND10 | Application: | High Precision Of Machining Of Non-ferrous Materials |
| High Light: | WORLDIA PCD Cutting Inserts,Uncoated PCD Cutting Inserts,Carbide Lathe Inserts For Aluminum Alloys |
||

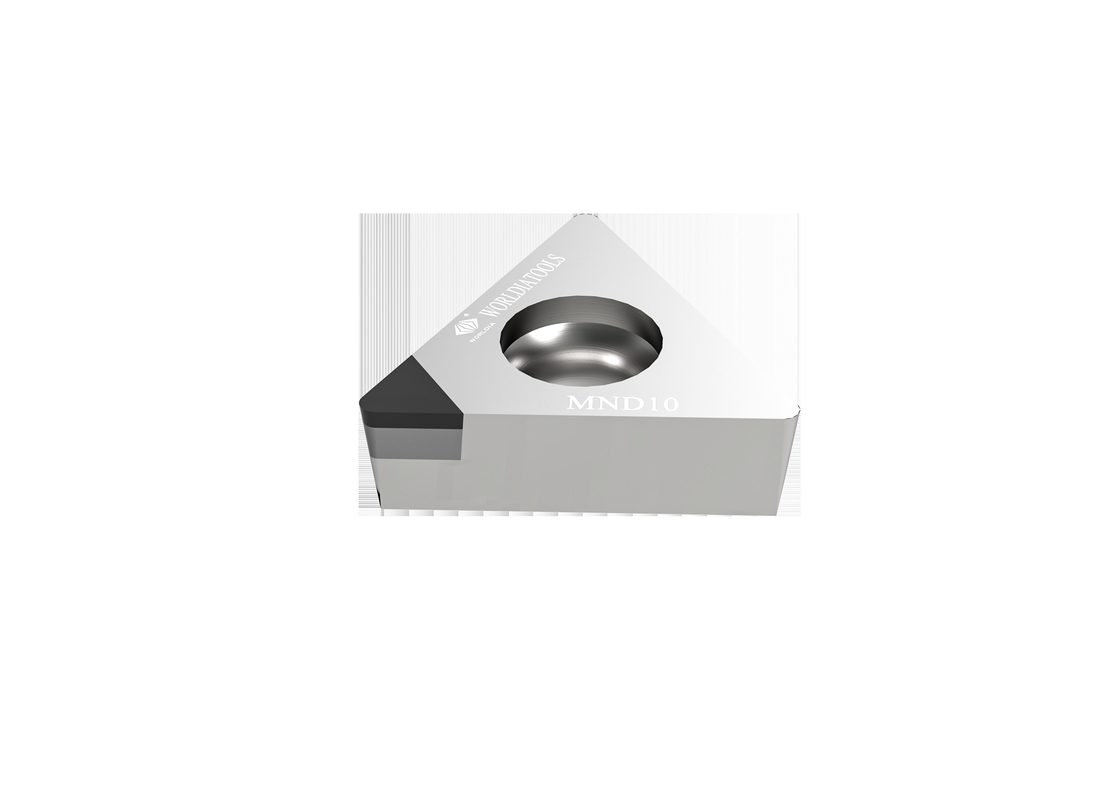

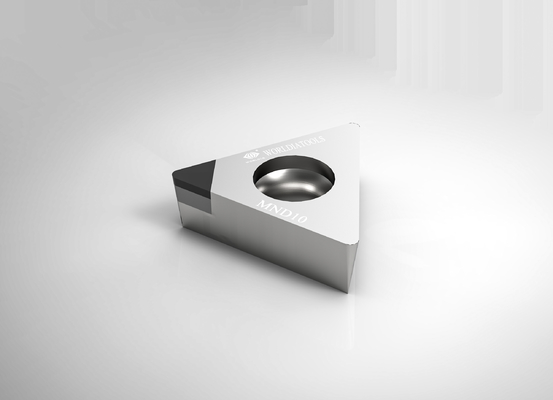

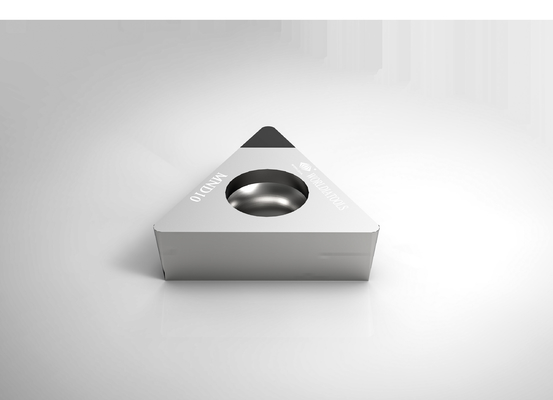

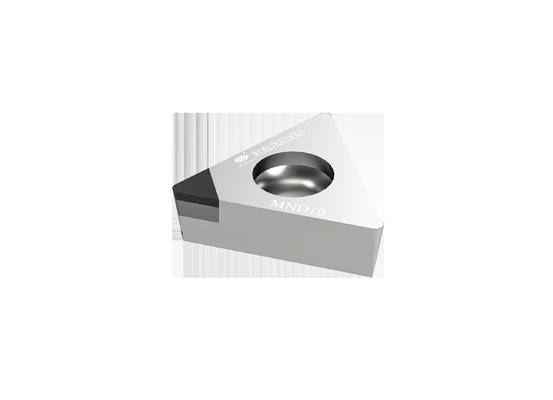

TCGW090208 Standard Carbide Turning Insert PCD Cutting Insert for non-ferrous materials
As a high-end standard cutting tool series, MANANOVA carries out the whole process of quality
management from raw materials, with sophisticated production testing equipment, professional and
experienced R&D and production team, and professional technical services, so that every user can
continue to experience Worldia cutting tools advantages.
Description:
"ManaNova" is a sub-brand of Worldia, focusing on high-end standard series.
We strictly select PCD and PCBN materials to meet customers' standardized and general
cutting requirements and provide fast and efficient services
MANANOVA takes “Easy choice and Fast delivery” as the feature, which intends to provide
fast and efficient service for domestic and foreign customers to meet their demand for
standardized and universalized tools.
Main products:
“Seven material/ one type” namely each specification corresponding to seven materials
(MHN10C ,MHN20C ,MHN30C, MKN10,MKN20,MSN 10)is the feature of the PCBN insert.
PCBN inserts are suitable for machining hardened steel, grey cast iron, ductile iron, and powder metallurgy.
The four edge types of PCD inserts are standard, chip breaker, full edge, and full face.
PCD insert (MND10 material ) is suitable for rough and finish machining of aluminum alloy and other non-metal materials.
Advantages:
· Universal
· Easy choice
· Fast delivery
Service:
· Online store service
· Local distributor support
· Technical support
Application:
| MND10 | Suitable for the cutting of non-ferrous materials such as aluminum alloys, etc. |
| PCD tools are limited to non-ferrous materials, such as high-silicon aluminum, metal matrix composites (MMC), and carbon fiber reinforced plastics (CFRP). PCD with flood coolant can also be used in titanium super-finishing applications. |
|
| ·Aluminum and aluminum alloys | |
| ·Copper, brass, and bronze alloys | |
| ·Zinc and magnesium alloys | |
| ·Carbon Fiber | |
| ·Epoxy resins | |
| ·Plastics | |
| ·Fiberglass composites | |
| ·Graphite composites |
Specification:
| Angle | Dimensions | Grade | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
MND 10 |
| TCGW 1.81.50.5 | TCGW 090202 | 1N | 5.56 | 2.38 | 0.2 | 2.4 | 2.5 | √ |
| TCGW 1.81.51 | TCGW 090204 | 1N | 5.56 | 2.38 | 0.4 | 2.4 | 2.5 | √ |
| TCGW 220.5 | TCGW 110302 | 1N | 6.35 | 3.18 | 0.2 | 2.8 | 2.5 | √ |
| TCGW 221 | TCGW 110304 | 1N | 6.35 | 3.18 | 0.4 | 2.8 | 2.5 | √ |
| TCGW 222 | TCGW 110308 | 1N | 6.35 | 3.18 | 0.8 | 2.8 | 2.5 | √ |
| TCGW 32.51 | TCGW 16T304 | 1N | 9.525 | 3.97 | 0.4 | 4.4 | 2.5 | √ |
| TCGW 32.52 | TCGW 16T308 | 1N | 9.525 | 3.97 | 0.8 | 4.4 | 2.5 | √ |
| L-TCGW 32.50.5 | L-TCGW 16T302 | 2N | 9.525 | 3.97 | 0.2 | 4.4 | 16.2 | √ |
| L-TCGW 32.51 | L-TCGW 16T304 | 2N | 9.525 | 3.97 | 0.4 | 4.4 | 15.9 | √ |
| L-TCGW 32.52 | L-TCGW 16T308 | 2N | 9.525 | 3.97 | 0.8 | 4.4 | 15.3 | √ |
| F-VBGW 1.81.51 | F-VBGW 090204 | 3N | 5.56 | 2.38 | 0.4 | 2.4 | 9 | √ |
| Feed rate recommendation | ||||||
| Nose radius(mm) | Ra um | |||||
| 0.2 | 0.4 | 0.8 | 1.6 | 3.2 | 6.4 | |
| Feed Rate f (mm/rev)≤ | ||||||
| 0.2 | 0.028 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 |
| 0.4 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 |
| 0.8 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 |
| 1.2 | 0.069 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 |
| 1.6 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 | 0.453 |
| 2.4 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 | 0.554 |
