Product Details:
|
| Model Number: | TCGT 090204 | Feature: | ·High Quality ·Low Cost ·Factory Direct Supply |
|---|---|---|---|
| PCD Grade: | MND10 | Coating: | Uncoated |
| Product Brand: | WORLDIA | Product Family: | ManaNova |
| Material: | PCD+Carbide | Application: | High Precision Of Machining Of Non-ferrous Materials |
| High Light: | TCGT PCD Turning Inserts,Carbide PCD turning Inserts,TCGT aluminium turning inserts |
||

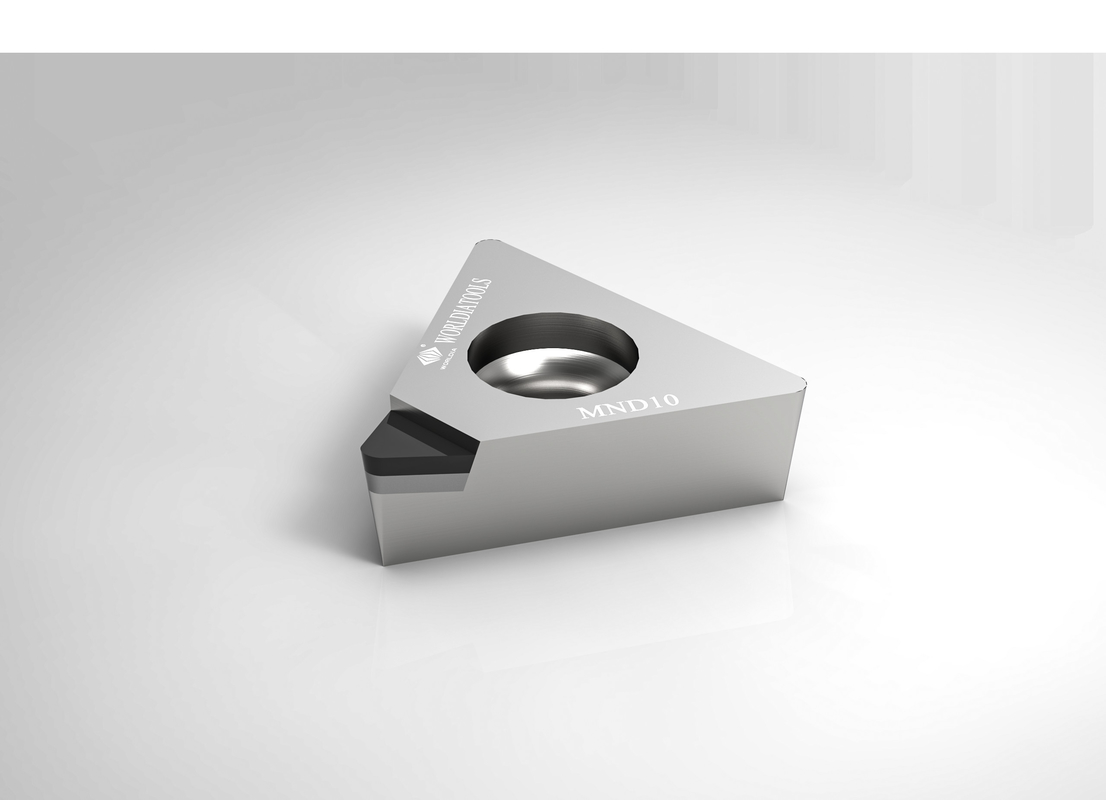

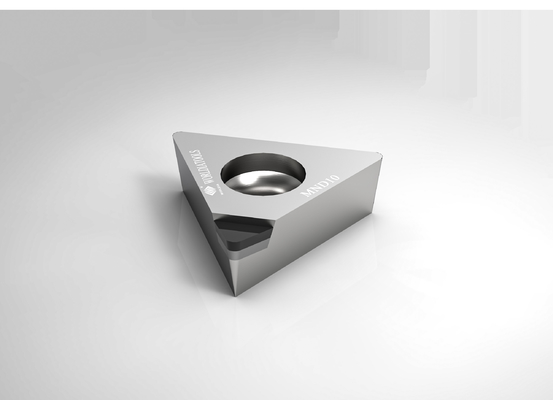

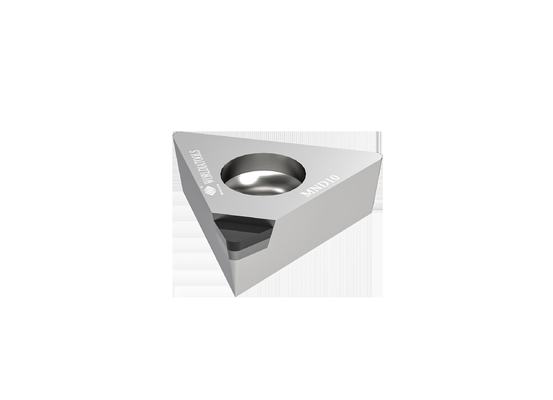

TCGT 090204 Standard Carbide Turning Insert PCD Cutting Insert for non-ferrous materials
WORLDIA
Our products mainly cover high-precision PCBN/PCD/CVD cutting tools, solid carbide tools,
holders as well as PCD/CVD materials.
Description:
ManaNova, a sub-brand of Worldia, is positioned as a high-end standard series.
To meet the needs of customers as the goal, we select PCD/PCBN materials to meet the needs of customers and
provide a universal, stable, and efficient cutting effect.
MANANOVA takes “Easy choice and Fast delivery”as the feature, which intends to provide fast and
efficient service for customers to meet their demand.
The critical feature of ManaNova is Easy choice and Fast delivery.
"Easy choice" is easy to choose according to the comparison table and application.
"Fast delivery" is all the ManaNova PCD Inserts in the catalog are available in stock.
Eliminating force majeure, you can get within 4-5 days.
Main products:
PCBN insert is suitable for machining hardened steel, gray cast iron, ductile iron, and powder metallurgy.
“Seven material/ one type” namely each specification corresponding to seven materials
(MHN10C ,MHN20C ,MHN30C, MKN10,MKN20,MSN 10,MSN20)is the feature of the PCBN insert.
PCD insert (MND10 material ) is suitable for rough and finish machining of aluminum alloy and other
non-metal materials. The four edge types are standard, chip breaker, full edge, and full face.
Advantages:
· Universal
· Easy choice
· Fast delivery
Service:
· Online store service
· Local distributor support
· Technical support
Application:
| MND10 | Suitable for the cutting of non-ferrous materials such as aluminum alloys, etc. |
| PCD tools are limited to non-ferrous materials, such as high-silicon aluminum, metal matrix composites (MMC), and carbon fiber reinforced plastics (CFRP). PCD with flood coolant can also be used in titanium super-finishing applications. |
|
| ·Aluminum and aluminum alloys | |
| ·Copper, brass, and bronze alloys | |
| ·Zinc and magnesium alloys | |
| ·Carbon Fiber | |
| ·Epoxy resins | |
| ·Plastics | |
| ·Fiberglass composites | |
| ·Graphite composites |
Specification:
| Angle | Dimensions | Grade | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
MND 10 |
| TCGT 1.81.50.5 | TCGT 090202 | 1N | 5.56 | 2.38 | 0.2 | 2.4 | 2.5 | √ |
| TCGT 1.81.51 | TCGT 090204 | 1N | 5.56 | 2.38 | 0.4 | 2.4 | 2.5 | √ |
| TCGT 220.5 | TCGT 110302 | 1N | 6.35 | 3.18 | 0.2 | 2.8 | 2.5 | √ |
| TCGT 221 | TCGT 110304 | 1N | 6.35 | 3.18 | 0.4 | 2.8 | 2.5 | √ |
| TCGT 222 | TCGT 110308 | 1N | 6.35 | 3.18 | 0.8 | 2.8 | 2.5 | √ |
| L-TCGT 32.51 | L-TCGT 16T304 | 2N | 9.525 | 3.97 | 0.4 | 4.4 | 15.9 | √ |
| Feed rate recommendation | ||||||
| Nose radius(mm) | Ra um | |||||
| 0.2 | 0.4 | 0.8 | 1.6 | 3.2 | 6.4 | |
| Feed Rate f (mm/rev)≤ | ||||||
| 0.2 | 0.028 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 |
| 0.4 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 |
| 0.8 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 |
| 1.2 | 0.069 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 |
| 1.6 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 | 0.453 |
| 2.4 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 | 0.554 |
