Product Details:
|
| Model Number: | TCGT 110302 | Feature: | · Universal · Easy Choice · Fast Delivery |
|---|---|---|---|
| PCD Grade: | MND10 | Service: | · Online Store Service · Local Distributor Support · Technical Support |
| Product Brand: | WORLDIA | Product Family: | ManaNova |
| Material: | PCD+Carbide | Application: | Machining Of Non-ferrous Materials |
| High Light: | TCGT PCD Cutting Inserts,Carbide PCD Cutting Inserts,Non Ferrous aluminum turning inserts |
||

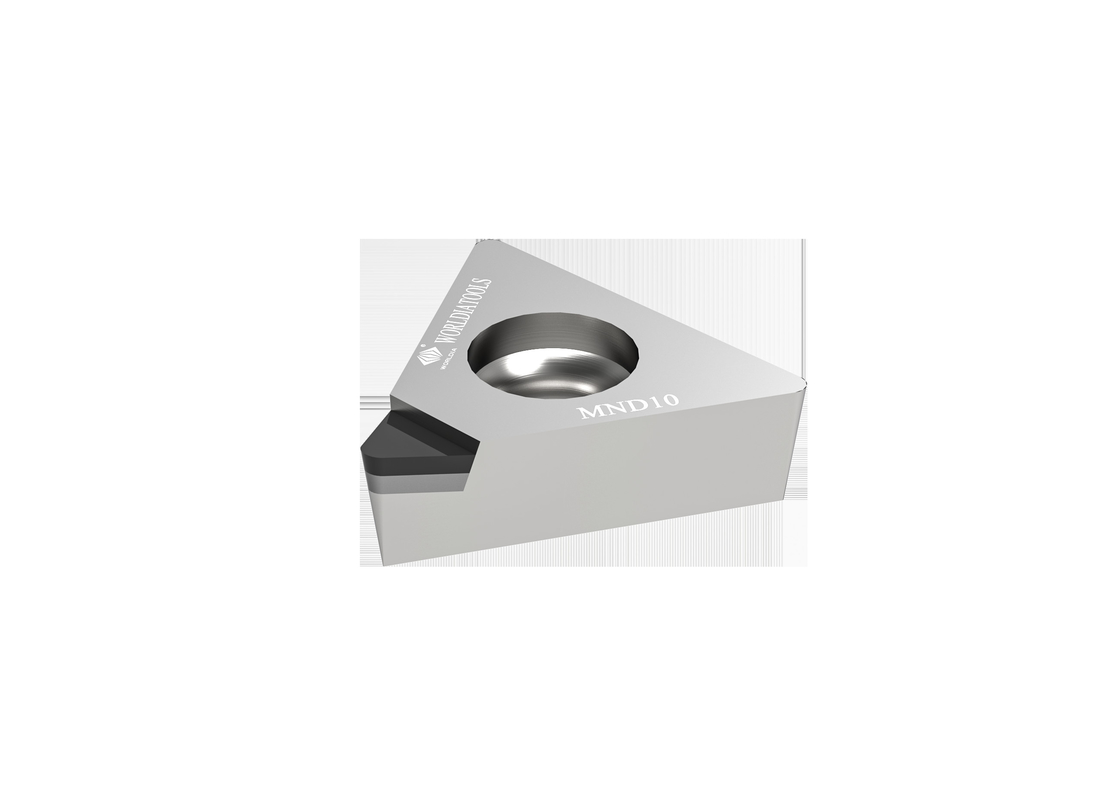

TCGT 110302 Standard Carbide Turning Insert PCD Cutting Insert for non-ferrous materials
WORLDIA
With high-quality products and professional technical support, we are honored to service
the top manufacturers in automotive, new energy, wind power, engineering machinery industries, etc.
Description:
ManaNova is positioned as a high-end standard series.
The PCD/PCBN materials are selected strictly to meet the needs of customers and
provide a universal, stable, and efficient cutting effect.
Easy choice and Fast delivery is the feature of ManaNova.
Materials:
Poly-Crystalline Diamond (PCD)
1. Reduce your tooling cost significantly
2. For non-ferrous metal machining
Polycrystalline cubic boron nitride(CBN)
1. With an excellent hot hardness
2. Good toughness and thermal shock resistance.
3. For hardened steel, cast irons, sintered irons as well as powder metallurgy components machining
Main products:
PCBN insert is suitable for machining hardened steel, gray cast iron, ductile iron, and powder metallurgy.
PCD insert (MND10 material ) is suitable for rough and finish machining of aluminum alloy and other
Advantages:
·High quality
·Low cost
·Factory direct supply
Application:
| MND10 | Suitable for the cutting of non-ferrous materials such as aluminum alloys, etc. |
| PCD tools are limited to non-ferrous materials, such as high-silicon aluminum, metal matrix composites (MMC), and carbon fiber reinforced plastics (CFRP). PCD with flood coolant can also be used in titanium super-finishing applications. |
|
| ·Aluminum and aluminum alloys | |
| ·Copper, brass, and bronze alloys | |
| ·Zinc and magnesium alloys | |
| ·Carbon Fiber | |
| ·Epoxy resins | |
| ·Plastics | |
| ·Fiberglass composites | |
| ·Graphite composites |
Specification:
| Angle | Dimensions | Grade | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
MND 10 |
| TCGT 1.81.50.5 | TCGT 090202 | 1N | 5.56 | 2.38 | 0.2 | 2.4 | 2.5 | √ |
| TCGT 1.81.51 | TCGT 090204 | 1N | 5.56 | 2.38 | 0.4 | 2.4 | 2.5 | √ |
| TCGT 220.5 | TCGT 110302 | 1N | 6.35 | 3.18 | 0.2 | 2.8 | 2.5 | √ |
| TCGT 221 | TCGT 110304 | 1N | 6.35 | 3.18 | 0.4 | 2.8 | 2.5 | √ |
| TCGT 222 | TCGT 110308 | 1N | 6.35 | 3.18 | 0.8 | 2.8 | 2.5 | √ |
| L-TCGT 32.51 | L-TCGT 16T304 | 2N | 9.525 | 3.97 | 0.4 | 4.4 | 15.9 | √ |
| Feed rate recommendation | ||||||
| Nose radius(mm) | Ra um | |||||
| 0.2 | 0.4 | 0.8 | 1.6 | 3.2 | 6.4 | |
| Feed Rate f (mm/rev)≤ | ||||||
| 0.2 | 0.028 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 |
| 0.4 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 |
| 0.8 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 |
| 1.2 | 0.069 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 |
| 1.6 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 | 0.453 |
| 2.4 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 | 0.554 |
