Product Details:
|
| Model Number: | L-TCGT16T304 | Type: | Full Length |
|---|---|---|---|
| Feature: | Easy Choice And Fast Delivery | PCD Grade: | MND10 |
| Coating: | Uncoated | Product Brand: | WORLDIA |
| Product Family: | ManaNova | Material: | PCD+Carbide |
| Application: | Machining Of Non-ferrous Materials | ||
| High Light: | Uncoated Carbide Insert Turning Tools,ISO14001 Carbide Insert Turning Tools,Triangle Carbide Inserts For Lathe |
||

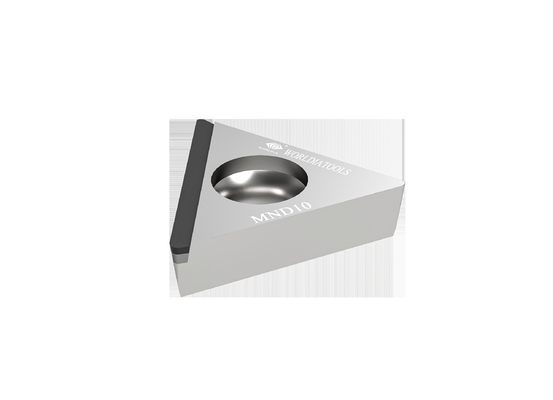

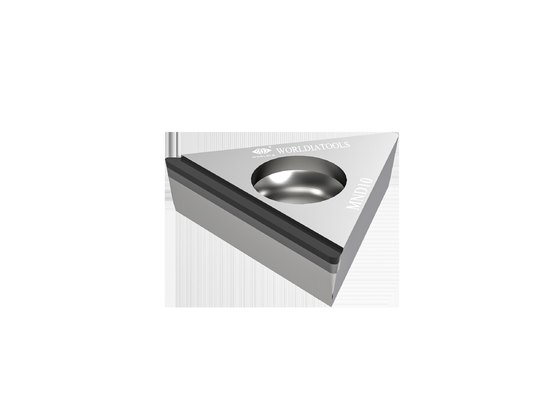

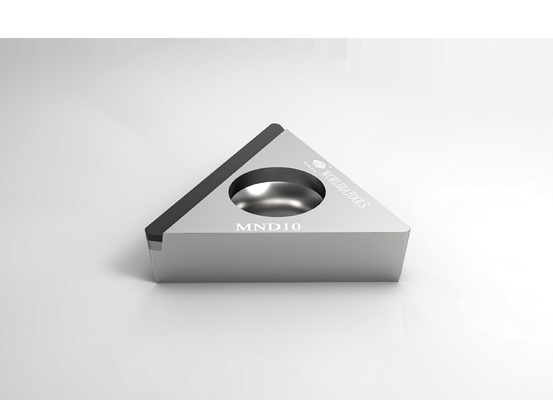

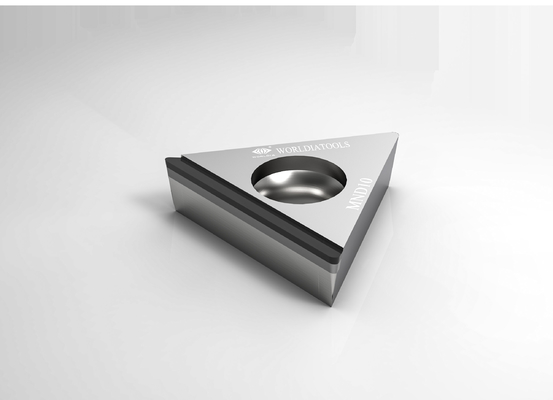

L-TCGT16T304 Standard Carbide Turning Insert PCD Cutting Insert for non-ferrous materials
WORLDIA
In the manufacturing worldia, changes push us to promote our products and service.
We are devoted to providing you with cutting tools and solutions that match the ambitions of your company.
We want to grow up with you together.
Description:
ManaNova, a sub-brand of Worldia, is positioned as a high-end standard series.
We strictly select PCD/PCBN materials to meet the needs of customers and provide a universal,
stable, and efficient cutting effect.
MANANOVA takes “Easy choice and Fast delivery” as the feature, which intends to provide fast
and efficient service for domestic and foreign customers to meet their demand for standardized and universalized tools.
Materials:
We manufacture PCD Tools with advanced processing machines and control the product quality
from the very beginning which keeps PCD tools with high accuracy and good quality with consistency
We manufacture CBN tools with an industry-leading 5-axis cutting machine and self-designed vacuum
brazing furnace which keeps CBN tools with high accuracy and welding strength.
Main products:
PCBN insert is suitable for machining hardened steel, gray cast iron, ductile iron, and powder metallurgy.
Especially coated PCBN insert is suitable for continuous to the heavy interrupted cutting of hardened steel
and has excellent universal performance.
PCD insert (MND10 material ) is suitable for rough and finish machining of aluminum alloy and other materials.
The four edge types are standard, chip breaker, full length, and full face.
Advantages:
·High quality
·Low cost
·Factory direct supply
Service:
· Online store service
· Local distributor support
· Technical support
Application:
| MND10 | Suitable for the cutting of non-ferrous materials such as aluminum alloys, etc. |
| PCD tools are limited to non-ferrous materials, such as high-silicon aluminum, metal matrix composites (MMC), and carbon fiber reinforced plastics (CFRP). PCD with flood coolant can also be used in titanium super-finishing applications. |
|
| ·Aluminum and aluminum alloys | |
| ·Copper, brass, and bronze alloys | |
| ·Zinc and magnesium alloys | |
| ·Carbon Fiber | |
| ·Epoxy resins | |
| ·Plastics | |
| ·Fiberglass composites | |
| ·Graphite composites |
Specification:
| Angle | Dimensions | Grade | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
MND 10 |
| TCGT 1.81.50.5 | TCGT 090202 | 1N | 5.56 | 2.38 | 0.2 | 2.4 | 2.5 | √ |
| TCGT 1.81.51 | TCGT 090204 | 1N | 5.56 | 2.38 | 0.4 | 2.4 | 2.5 | √ |
| TCGT 220.5 | TCGT 110302 | 1N | 6.35 | 3.18 | 0.2 | 2.8 | 2.5 | √ |
| TCGT 221 | TCGT 110304 | 1N | 6.35 | 3.18 | 0.4 | 2.8 | 2.5 | √ |
| TCGT 222 | TCGT 110308 | 1N | 6.35 | 3.18 | 0.8 | 2.8 | 2.5 | √ |
| L-TCGT 32.51 | L-TCGT 16T304 | 2N | 9.525 | 3.97 | 0.4 | 4.4 | 15.9 | √ |
| Feed rate recommendation | ||||||
| Nose radius(mm) | Ra um | |||||
| 0.2 | 0.4 | 0.8 | 1.6 | 3.2 | 6.4 | |
| Feed Rate f (mm/rev)≤ | ||||||
| 0.2 | 0.028 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 |
| 0.4 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 |
| 0.8 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 |
| 1.2 | 0.069 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 |
| 1.6 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 | 0.453 |
| 2.4 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 | 0.554 |
