Product Details:
|
| Model Number: | TPGW 110304 | Type: | Turning Tools |
|---|---|---|---|
| Product Brand: | WORLDIA | Product Family: | ManaNova |
| Name: | PCD Standard Insert | Material: | PCD+Carbide |
| PCD Grade: | MND10 | Application: | High Precision Of Machining Of Non-ferrous Materials |
| High Light: | TPGW PCD Cutting Inserts,WORLDIA PCD Cutting Inserts,TPGW inserts for cnc machines |
||

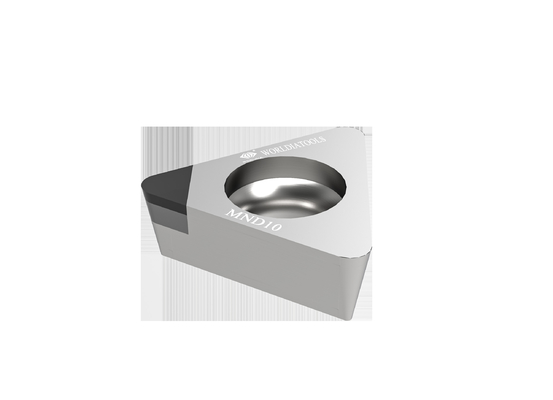

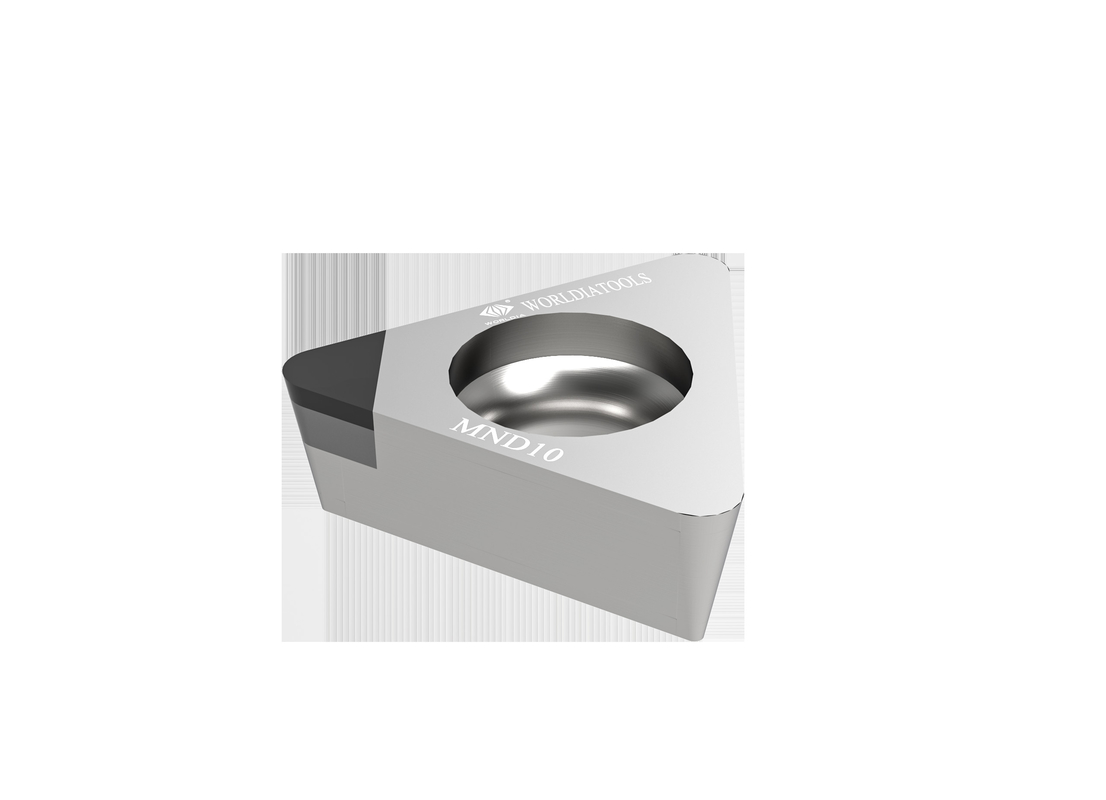

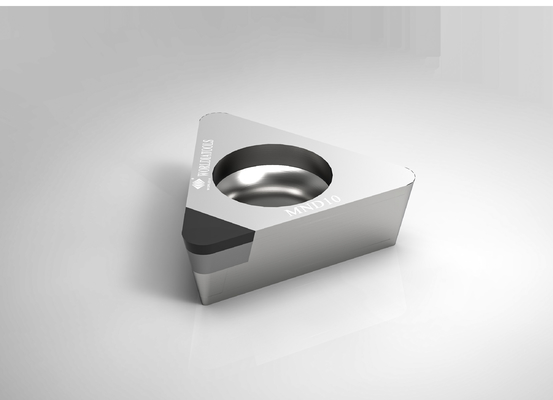

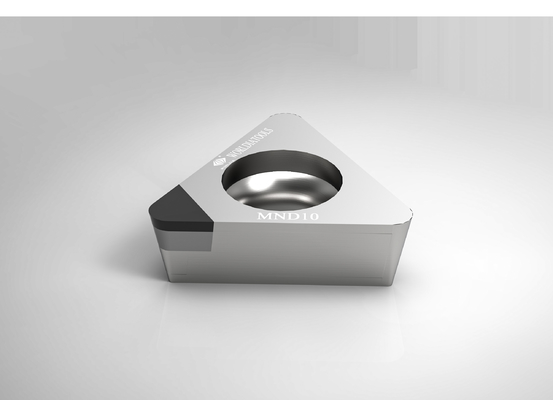

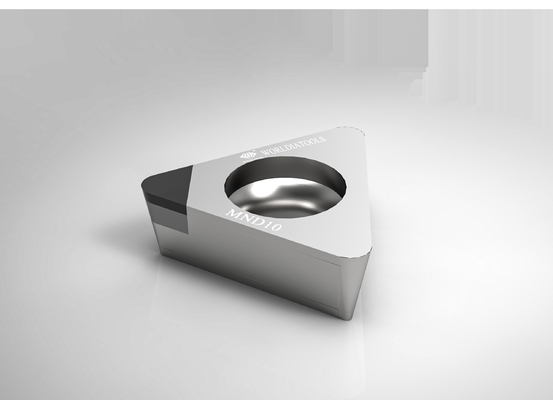

TPGW 110304 Standard Carbide Turning Insert PCD Cutting Insert for non-ferrous materials
WORLDIA
WORLDIA pays special attention to the making of Standard Super Hard Cutting Tools.
And we have made a tremendous amount of technical innovations in designing and manufacturing
PCBN/PCD/CVD inserts and related products.
Description:
ManaNova, a sub-brand of Worldia, is positioned as a high-end standard series.
To meet the needs of customers as the goal, we strictly select PCD/PCBN materials to provide a universal,
stable, and efficient cutting effect.
The critical feature of ManaNova is Easy choice and Fast delivery.
"Easy choice" is easy to choose according to the comparison table and application.
"Fast delivery" is all the ManaNova PCD Inserts in the catalog are available in stock.
Eliminating force majeure, you can get within 4-5 days.
Material:
Poly-Crystalline Diamond (PCD)
1. Reduce your tooling cost significantly
2. For non-ferrous metal machining
Polycrystalline cubic boron nitride(CBN)
1. With an excellent hot hardness
2. Good toughness and thermal shock resistance.
3. For hardened steel, cast irons, sintered irons as well as powder metallurgy components machining
Main products:
PCBN insert: 7 materials/ 1 type, universal for hardened steel, cast iron, ductile iron, and powder metallurgy
.
PCD insert: Providing stable, universal, high efficient cutting effect.
Advantages:
·High quality
·Low cost
·Factory direct supply
Application:
| MND10 | Suitable for the cutting of non-ferrous materials such as aluminum alloys, etc. |
| PCD tools are limited to non-ferrous materials, such as high-silicon aluminum, metal matrix composites (MMC), and carbon fiber reinforced plastics (CFRP). PCD with flood coolant can also be used in titanium super-finishing applications. |
|
| ·Aluminum and aluminum alloys | |
| ·Copper, brass, and bronze alloys | |
| ·Zinc and magnesium alloys | |
| ·Carbon Fiber | |
| ·Epoxy resins | |
| ·Plastics | |
| ·Fiberglass composites | |
| ·Graphite composites |
Specification:
| Angle | Dimensions | Grade | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
MND 10 |
| TPGW 220.5 | TPGW 110302 | 1N | 6.35 | 3.18 | 0.2 | 3.3 | 2.5 | √ |
| TPGW 221 | TPGW 110304 | 1N | 6.35 | 3.18 | 0.4 | 3.3 | 2.5 | √ |
| TPGW 222 | TPGW 110308 | 1N | 6.35 | 3.18 | 0.8 | 3.3 | 2.5 | √ |
| TPGW 330.5 | TPGW 160402 | 1N | 9.525 | 4.76 | 0.2 | 4.4 | 2.5 | √ |
| TPGW 331 | TPGW 160404 | 1N | 9.525 | 4.76 | 0.4 | 4.4 | 2.5 | √ |
| F-TPGW 222 | F-TPGW 160408 | 3N | 9.525 | 3.18 | 0.8 | 3.3 | 15.3 | √ |
| Feed rate recommendation | ||||||
| Nose radius(mm) | Ra um | |||||
| 0.2 | 0.4 | 0.8 | 1.6 | 3.2 | 6.4 | |
| Feed Rate f (mm/rev)≤ | ||||||
| 0.2 | 0.028 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 |
| 0.4 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 |
| 0.8 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 |
| 1.2 | 0.069 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 |
| 1.6 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 | 0.453 |
| 2.4 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 | 0.554 |
