| Model Number: | TPGW 110308 | Type: | Turning Tools |
|---|---|---|---|
| Tips: | 1N | Product Brand: | WORLDIA |
| Product Family: | ManaNova | Material: | PCD+Carbide |
| PCD Grade: | MND10 | Application: | Machining Of Non-ferrous Materials |
| High Light: | High Efficient PCD Diamond Inserts,TPGW pcd diamond inserts,OEM Carbide Insert For Finishing |
||

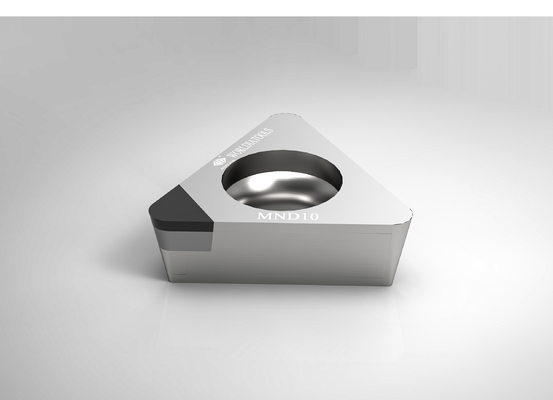

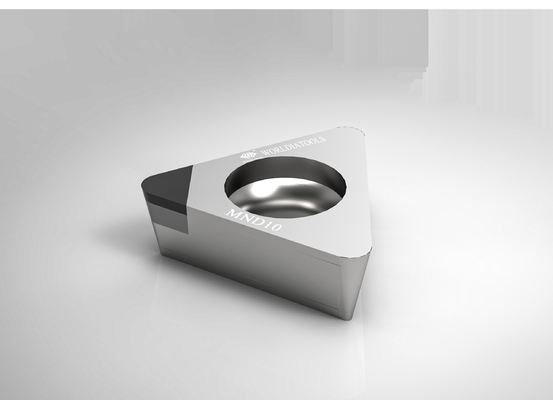

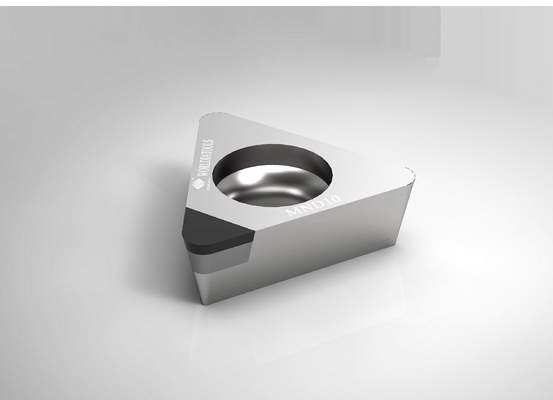

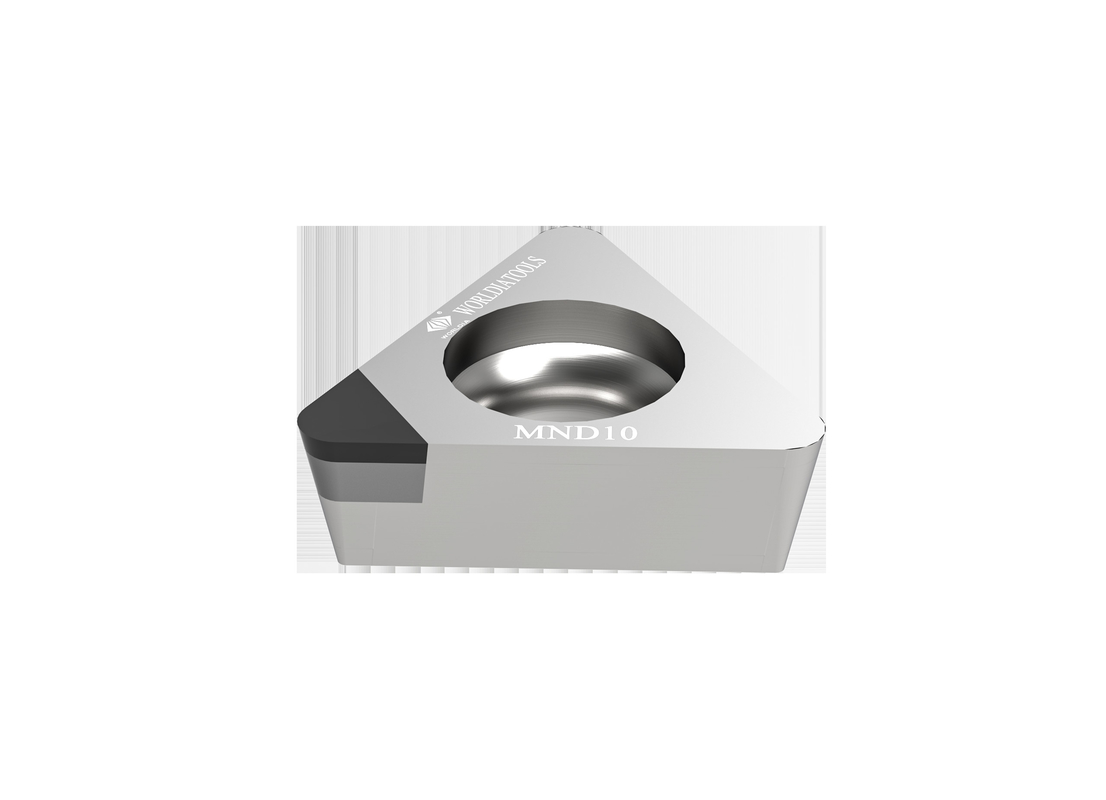

TPGW 110308 Standard Carbide Turning Insert PCD Cutting Insert for non-ferrous materials
WORLDIA
In the manufacturing worldia, changes push us to promote our products and service.
We are devoted to providing you with cutting tools and solutions that match the ambitions of your company
.We want to grow up with you together.
Description:
As a high-end standard cutting tool series, MANANOVA carries out the whole process of quality
management from raw materials, with sophisticated production testing equipment, professional and
experienced R&D and production team, and professional technical services, so that every user can
continue to experience Worldia cutting tools advantages.
Easy choice and Fast delivery is the critical feature of ManaNova.
Material:
Polycrystalline cubic boron nitride(CBN) is a material with an excellent hot hardness that can be used at very
high cutting speeds. It also exhibits good toughness and thermal shock resistance.CBN tools are ideal for use
with hardened steel, cast irons, and sintered irons as well as powder metallurgy components.
Tools with Poly-Crystalline Diamond (PCD) cutting materials can reduce your tooling cost significantly,
PCD tools are ideal for use with non-ferrous metal, such as aluminum, Zinc, and magnesium alloys,
GRP composites, carbon fiber reinforced plastics, “green” carbide, and ceramic as well as all abrasive materials
Main products:
PCBN insert is suitable for machining hardened steel, gray cast iron, ductile iron, and powder metallurgy.
Seven material/ one type” namely each specification corresponding to seven materials.
(MHN10C ,MHN20C ,MHN30C, MKN10,MKN20,MSN 10,MSN20)is the feature of the PCBN insert.
.
PCD insert (MND10 material ) is suitable for rough and finish machining of aluminum alloy and other non-metal materials.
PCD insert: Providing stable, universal, high efficient cutting effect.
The four edge types are standard, chip breaker, full length, and full face.
Advantages:
· Universal
· Easy choice
· Fast delivery
Service:
· Online store service
· Local distributor support
· Technical support
Application:
| MND10 | Suitable for the cutting of non-ferrous materials such as aluminum alloys, etc. |
| PCD tools are limited to non-ferrous materials, such as high-silicon aluminum, metal matrix composites (MMC), and carbon fiber reinforced plastics (CFRP). PCD with flood coolant can also be used in titanium super-finishing applications. |
|
| ·Aluminum and aluminum alloys | |
| ·Copper, brass, and bronze alloys | |
| ·Zinc and magnesium alloys | |
| ·Carbon Fiber | |
| ·Epoxy resins | |
| ·Plastics | |
| ·Fiberglass composites | |
| ·Graphite composites |
Specification:
| Angle | Dimensions | Grade | ||||||
| ANSI Code | ISO Code | Tips | IC mm |
S mm |
R mm |
Φd mm |
LE mm |
MND 10 |
| TPGW 220.5 | TPGW 110302 | 1N | 6.35 | 3.18 | 0.2 | 3.3 | 2.5 | √ |
| TPGW 221 | TPGW 110304 | 1N | 6.35 | 3.18 | 0.4 | 3.3 | 2.5 | √ |
| TPGW 222 | TPGW 110308 | 1N | 6.35 | 3.18 | 0.8 | 3.3 | 2.5 | √ |
| TPGW 330.5 | TPGW 160402 | 1N | 9.525 | 4.76 | 0.2 | 4.4 | 2.5 | √ |
| TPGW 331 | TPGW 160404 | 1N | 9.525 | 4.76 | 0.4 | 4.4 | 2.5 | √ |
| F-TPGW 222 | F-TPGW 160408 | 3N | 9.525 | 3.18 | 0.8 | 3.3 | 15.3 | √ |
| Feed rate recommendation | ||||||
| Nose radius(mm) | Ra um | |||||
| 0.2 | 0.4 | 0.8 | 1.6 | 3.2 | 6.4 | |
| Feed Rate f (mm/rev)≤ | ||||||
| 0.2 | 0.028 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 |
| 0.4 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 |
| 0.8 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 |
| 1.2 | 0.069 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 |
| 1.6 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 | 0.453 |
| 2.4 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 | 0.554 |
